Thin Wafer Market Size & Share 2026-2035

Thin Wafer Market Size

The global thin wafer market is valued at USD 15.1 billion in 2025 and is estimated to reach USD 17 billion in 2026, before expanding to USD 56 billion by 2035 at a 14.2% CAGR from 2026 to 2035.

Thin-wafer demand is increasingly determined by the amount of processing required after front-end fabrication rather than by wafer-start volume alone. Advanced packaging, high-bandwidth memory (HBM), backside-illuminated image sensors, and power semiconductors all require controlled thinning, backside processing, and damage management. Semiconductor wafer shipments fell to 12,266 million square inches in 2024, yet advanced foundry and HBM demand provided an important offset to the broader inventory correction ^{[1]SEMI Silicon Manufacturers Group, Worldwide Silicon Wafer Shipments and Revenue Start Recovery in Late 2024, February 2025, semi.org}. The recovery became more visible in the second quarter of 2025, when silicon wafer shipments reached 3,327 million square inches, up 9.6% year over year.

Temporary carrier support becomes critical as a device wafer loses stiffness during grinding and backside processing. Advanced packaging flows use grinding, chemical-mechanical polishing, plasma etching, and temporary bonding and debonding to manage wafers below 100μm, while the most demanding 3D integration flows require substantially thinner active layers ^{[2]Semiconductor Engineering, The Rise of Thin Wafer Processing, 2024, semiengineering.com}. This makes thin-wafer processing a yield-sensitive capability spanning wafer suppliers, bonding-material providers, back-grinding equipment vendors, and outsourced semiconductor assembly and test providers.

Asia Pacific accounted for $9,986.46 million in 2025, reflecting its concentration of memory manufacturing, advanced packaging, wafer-material suppliers, and semiconductor equipment production. North America, valued at $2,365.18 million in 2025, is expected to record the fastest regional expansion as domestic logic, memory, power, and packaging investments broaden the addressable base for 200mm and 300mm thin-wafer processing.

The key constraint is not simply access to silicon. It is the ability to preserve flatness, surface integrity, alignment, and electrical yield as thickness declines. Suppliers that combine carrier handling, low-damage grinding, debonding, metrology, and materials compatibility can capture a disproportionate share of advanced applications, while suppliers limited to standard wafer finishing remain more exposed to mature-node pricing pressure.

Key Drivers

Advanced Semiconductor Packaging Demand

Fan-out packaging, chiplet integration, interposers, and three-dimensional device stacks require wafers to withstand backside processing after much of their original mechanical strength has been removed. Temporary bonding and debonding provides the carrier-supported route needed to grind a device wafer, form through-silicon vias or backside interconnects, and release the finished substrate without damaging active circuitry. This creates recurring demand for grinding, carrier materials, adhesives, cleaning, debonding, and inspection rather than a one-time equipment opportunity.

Advanced packaging also changes the economic value at risk per wafer. A yield loss late in the flow can invalidate expensive logic, memory, or heterogeneous die already incorporated into a package. Consequently, packaging customers increasingly prioritize repeatable wafer flatness and defect control over the lowest unit processing cost.

5G and AI Chip Proliferation

AI accelerators intensify thin-wafer demand because HBM requires multiple DRAM die to be processed and stacked within a limited package height. The resulting demand is concentrated in a narrow group of high-volume packaging and memory supply chains, which raises the importance of throughput-qualified temporary bonding, precision grinding, and debonding platforms. Semiconductor Engineering identifies thin-wafer processing as a central enabling step for advanced packaging and three-dimensional integration because substrate thickness directly affects stacking, via formation, and package geometry.

RF front-end devices and antenna-in-package modules create a separate thinning requirement. Reduced substrate thickness can support smaller profiles and integration flexibility in RF and mixed-signal packages, although the achievable target depends on material brittleness, thermal requirements, and device design.

IoT Device Expansion

The IoT driver is distributed across mature semiconductor nodes rather than concentrated solely in leading-edge logic. Industrial automation, connected meters, consumer wearables, automotive sensing, and smart-building systems rely on MEMS, analog, mixed-signal, and connectivity devices that are commonly produced on 100mm to 200mm substrates. This broad base provides demand for thin-wafer processing even when leading-edge logic investment fluctuates.

The commercial importance of this segment lies in volume stability and application diversity. Sensor applications often require thinner substrates to reduce mass, improve sensitivity, or fit multi-chip packages, but they generally demand cost-efficient and high-yield processes rather than the extreme thinning used in HBM production.

Electric Vehicle Power Electronics

Thin power wafers improve electrical and thermal performance by reducing substrate resistance and shortening current paths. Infineon demonstrated 20μm-thick silicon power wafers on 300mm substrates, reporting a 50% reduction in substrate resistance and power-system losses exceeding 15% compared with conventional 40μm-60μm wafers ^{[3]Infineon Technologies AG, Ultra-Thin Silicon Power Wafer Technology and 300mm GaN/SiC Announcements, 2024, infineon.com}. The technical benefit is particularly relevant for traction inverters, onboard chargers, data-center power supplies, and DC-DC conversion.

Power devices present a different processing challenge from memory. Silicon carbide, gallium nitride, and other compound materials can offer strong device performance, but their mechanical behavior makes low-damage thinning and crack control more demanding. The value proposition therefore extends beyond thinner output: it includes preserving usable die yield in materials with less tolerance for grinding-induced damage.

CMOS Image Sensor Growth

Backside-illuminated CMOS image sensors rely on thinning to expose the pixel layer to incoming light without front-side metal interconnects blocking the optical path. The migration toward stacked image sensors raises process complexity because pixel arrays and logic layers must be integrated with tight alignment and uniform thickness control.

Automotive imaging adds a durable source of demand. Higher camera content for advanced driver-assistance systems, surround-view functions, driver monitoring, and in-cabin sensing increases the number of image sensors per vehicle. Thin-wafer capability becomes commercially important where sensor suppliers must combine high optical performance with package-height and reliability requirements.

Key Restraints

Wafer Warpage and Handling Challenges

As silicon is thinned, differences in thermal expansion among the device wafer, adhesive, carrier, molding compound, and deposited films can generate warpage. For reconstituted 300mm wafers, warpage above 1mm can materially complicate handling and process integration, while substantially lower levels are preferable for high-yield packaging ^{[4]Frontiers in Electronics, Warpage in Wafer-Level Packaging: A Review of Causes, Modelling, and Mitigation Strategies, 2024, frontiersin.org}. The effect is cumulative: wafer bow can disrupt lithographic alignment, redistribution-layer formation, and assembly reliability before it becomes visible as a final electrical failure.

The mitigation burden raises both capital and operating costs. Carrier selection, adhesive design, thermal-profile management, in-line metrology, and debonding conditions must be qualified as a system. This creates a barrier for processors serving ultra-thin wafers, because a process improvement in one step can introduce failure modes in another.

High Defect Density and Yield Loss

Mechanical grinding can create subsurface damage, scratches, edge chipping, and microcracks that become more consequential during later thermal cycles and plasma processing. Chemical-mechanical polishing and plasma etching reduce total thickness variation and remove damaged layers, but they add process time, material consumption, and metrology requirements.

The risk is more pronounced for brittle compound semiconductors and at thicknesses below 50μm. Yield loss at this stage affects the full value of the processed wafer, including front-end fabrication already completed. Accordingly, customers in high-value memory, power, and heterogeneous packaging flows are likely to favor suppliers that can document damage control and process repeatability over suppliers competing only on nominal thinning capability.

Carrier-less alternatives can reduce handling steps for suitable thickness targets. DISCO's TAIKO process retains a peripheral support ring during back grinding, preserving wafer rigidity while the center is thinned. However, the process does not eliminate the need for advanced carrier-based methods in the most demanding ultra-thin applications. The result is a segmented equipment market: high-volume, moderate-thickness applications can prioritize cycle time, while HBM, 3D integration, and fragile power substrates require a broader process-control capability.

Thin Wafer Market Segment Analysis

By Thickness

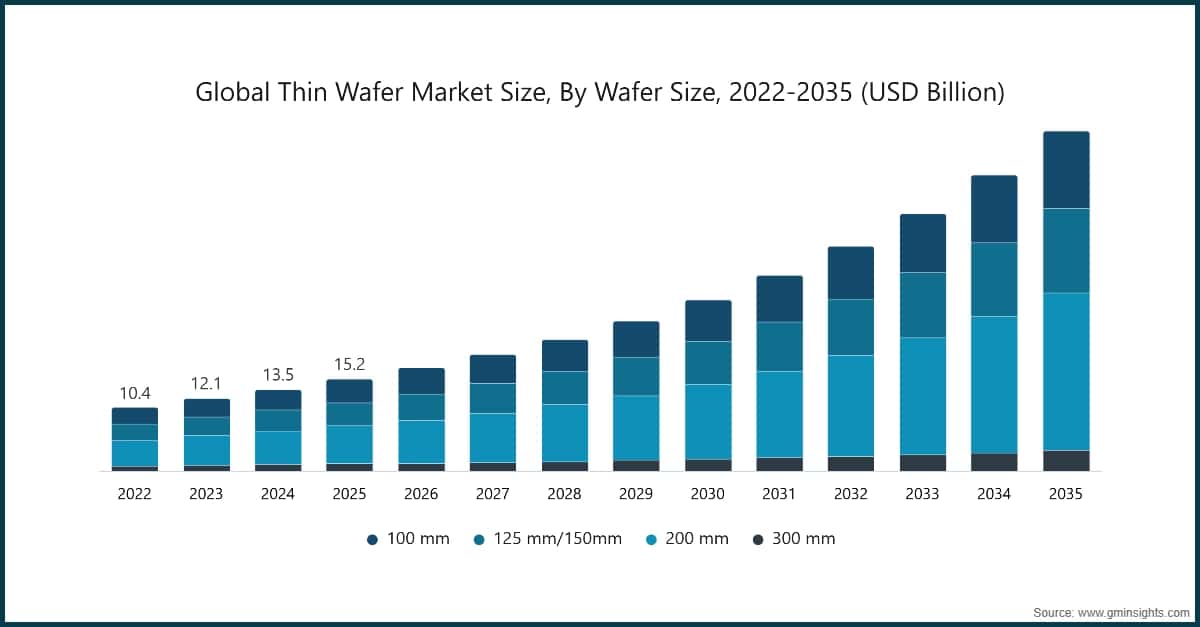

The 100μm-199μm category is the largest thickness segment because it supports a broad installed base of memory, power, imaging, and packaging operations. It represents the practical range in which many devices gain package-height and electrical advantages without incurring the most severe handling penalties associated with ultra-thin wafers.

The 30μm-49μm category is projected to grow fastest. This range is increasingly relevant for advanced memory stacks, three-dimensional integration, and power devices seeking greater electrical efficiency. Its growth premium reflects a shift in the economically viable processing window, not merely a preference for thinner wafers. Processes in this band must balance thickness reduction against bow, breakage, and defect risk, creating demand for specialized bonding, grinding, polishing, and debonding solutions.

Thicknesses below 30μm serve applications where functional gains justify materially higher process complexity. The 10μm-29μm category supports specialized logic, photonic, and advanced integration flows, while the sub-10μm segment is tied primarily to backside imaging and niche layer-transfer applications. Their smaller scale reflects yield, throughput, and cost constraints rather than a lack of technical relevance.

By Wafer Size

The 200mm segment leads because it sits at the intersection of analog, power, MEMS, RF, and mature-node manufacturing. It benefits from a large installed base, including power-semiconductor fabs that need increasingly capable thinning without necessarily migrating every production line to 300mm.

The 300mm segment has a smaller market value but carries outsized strategic importance. It is associated with advanced memory, leading-edge logic, and large-diameter packaging flows where wafer breakage or yield loss has a high absolute cost. Siltronic inaugurated its Singapore 300mm fab in June 2024 following an investment of about €2 billion, reinforcing the continuing investment case for large-diameter wafer supply despite a cyclical demand correction in other categories ^{[5]Siltronic AG, Annual Report 2024, March 2025, siltronic.com}.

The 100mm and 125mm/150mm categories remain relevant for specialty devices, compound semiconductors, MEMS, and established power platforms. Their persistence reflects qualification economics: an existing device architecture does not migrate to a larger diameter solely to gain theoretical unit-cost benefits if redesign, material supply, and process validation costs are prohibitive.

By Process

Temporary bonding and debonding is the dominant process because it gives a thin device wafer mechanical support during backside processing. It is especially important in advanced packaging flows that require subsequent metallization, via reveal, redistribution layers, or backside processing after grinding.

UV-release adhesives are projected to outgrow other adhesive types because they support high-throughput release steps compatible with automated packaging flows. Thermal-release materials remain important where higher-temperature process conditions require more robust bonding stability, especially in power-device processing. Solvent-release approaches retain a role in mature applications, but longer release cycles make them less attractive where throughput is the limiting production variable.

Carrier-less/Taiko processing offers a different value proposition. By retaining a thick outer ring, it can reduce reliance on separate carriers and adhesives for applications that do not require the most aggressive thickness targets. This makes it competitive where cycle-time reduction and lower process complexity outweigh the flexibility of carrier-assisted methods.

By Application

Memory is the largest application because HBM and NAND manufacturing require large volumes of die-level processing, with stacking and package-height requirements increasing the need for controlled thinning. The memory segment is expected to rise from $5,870.47 million in 2025 to $21,183.25 million by 2035.

MEMS is expected to grow fastest, reaching $5,170.98 million by 2035. The growth is tied to automotive sensors, industrial automation, medical devices, and wearables, where thinner substrates can reduce package size and improve mechanical sensitivity. Unlike HBM-oriented thinning, MEMS demand is dispersed across a broad group of customers and production platforms, giving it a different risk profile.

LED and logic remain substantial demand centers. Thin LED structures can improve optical performance and support emerging display form factors, while logic thinning supports three-dimensional integration, backside power delivery, and heterogeneous chiplet packaging. CMOS image sensors are also a high-growth category because backside-illuminated and stacked architectures require tightly controlled thinning of the pixel substrate.

The application mix also broadens the market's growth base. Memory remains the largest application, but MEMS is projected to grow at 17.09% annually through 2035. That divergence matters commercially: HBM-driven demand rewards suppliers with advanced-packaging qualifications and large-volume capability, whereas MEMS growth favors flexible platforms that can process varied device designs and specialty wafers. A supplier positioned only for one demand vector risks missing the wider migration toward thinner, more functionally integrated devices.

Thin Wafer Market Regional Analysis

North America

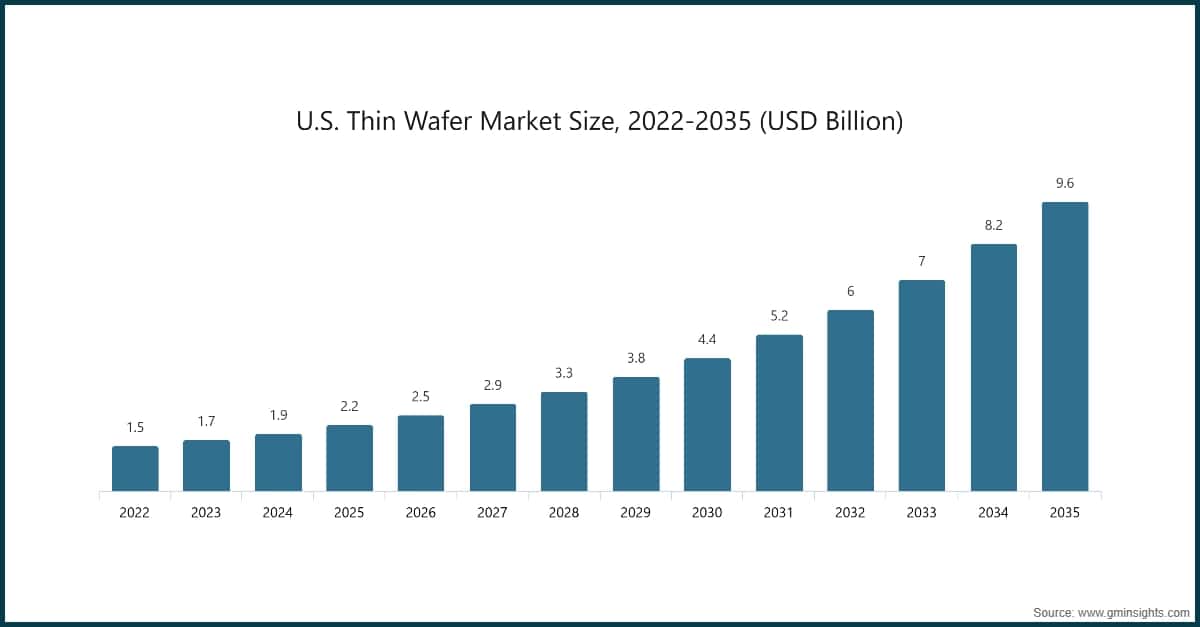

North America is projected to expand from $2,365.18 million in 2025 to $10,076.79 million by 2035, at a 15.76% CAGR. The region's growth is supported by domestic investments in advanced logic, memory, power semiconductors, and related supply-chain capacity. The U.S. Department of Commerce announced CHIPS incentives awards across leading manufacturers, including awards for TSMC Arizona, Intel, Samsung, and Micron, strengthening the regional manufacturing base that will consume thin-wafer materials and processing equipment ^{[6]National Institute of Standards and Technology, Biden-Harris Administration Announces CHIPS Incentives Award with TSMC Arizona, November 2024, nist.gov}.

The region's opportunity is strongest where wafer supply, front-end manufacturing, and advanced packaging can be qualified together. U.S. capacity additions may reduce logistics exposure for locally produced advanced devices, but the commercial benefit depends on the pace at which downstream packaging and test ecosystems scale alongside front-end fabs.

Europe

Europe is estimated to increase from $879.22 million in 2025 to $2,497.31 million by 2035, at an 11.16% CAGR. Demand is shaped more by automotive power electronics, industrial semiconductors, MEMS, and specialty substrates than by the HBM-centric supply chains that dominate parts of Asia Pacific.

Germany remains central to regional demand through power-semiconductor manufacturing and the automotive supply chain. The Netherlands, France, the UK, and other European markets contribute through photonics, RF, research-intensive specialty devices, and semiconductor equipment ecosystems. This produces a more specialized thin-wafer opportunity, with value concentrated in qualification-sensitive applications rather than broad-scale memory expansion.

Asia Pacific

Asia Pacific is the largest market, expected to grow from $9,986.46 million in 2025 to $38,860.26 million by 2035, at a 14.71% CAGR. The region combines major wafer-material suppliers in Japan, advanced packaging capacity in Taiwan, memory production in South Korea, and a growing mature-node and specialty-wafer base in China. The OECD identifies China, Chinese Taipei, Japan, South Korea, and the United States as accounting for about 90% of global semiconductor manufacturing capacity, illustrating the geographic concentration that shapes thin-wafer procurement and processing ^{[7]Organisation for Economic Co-operation and Development, The Chip Landscape, 2025, oecd.org}.

Japan's role spans wafer materials and back-grinding equipment, South Korea's role is anchored in memory, and Taiwan remains pivotal to high-density packaging. China's expansion in mature-node capacity can support demand for 200mm processing and specialty applications, although constraints on advanced equipment limit its access to the most technically demanding leading-edge packaging flows.

Latin America

Latin America is projected to grow from $706.50 million in 2025 to $1,679.84 million by 2035, at a 9.20% CAGR. Mexico is the region's principal demand center because electronics assembly and automotive manufacturing create downstream consumption of semiconductors incorporating thin-wafer-processed die. However, much of the highest-value thin-wafer processing remains located upstream in North America and Asia Pacific.

Brazil, Argentina, and other markets offer selective opportunities in design, research, industrial electronics, and localized manufacturing. Growth is likely to be linked more closely to electronics and automotive supply-chain development than to large-scale domestic wafer fabrication.

Middle East and Africa

The Middle East and Africa market is estimated to rise from $1,141.58 million in 2025 to $2,880.41 million by 2035, at a 9.65% CAGR. Demand currently stems primarily from imported semiconductors used in telecommunications, consumer electronics, industrial systems, and data-center infrastructure. Saudi Arabia and the UAE are advancing semiconductor design, technology, and digital-infrastructure initiatives, while South Africa remains an important electronics market within Sub-Saharan Africa.

The region's near-term thin-wafer opportunity is therefore downstream and demand-led. A more significant local processing market would depend on sustained progress in assembly, test, design, material supply, and manufacturing infrastructure.

North America's 15.76% CAGR signals a meaningful rebalancing opportunity, but it starts from a considerably smaller base. The regional outcome will depend on whether new domestic fabs, packaging capacity, qualified wafer supply, and process-equipment ecosystems develop as connected production networks. For suppliers, this makes North America a high-growth qualification market, while Asia Pacific remains the scale market in which process performance and customer proximity are likely to remain decisive.

Thin Wafer Market Share & Competitive Landscape

The thin wafer market is moderately consolidated among large wafer suppliers while remaining more fragmented across grinding, bonding, debonding, polishing, specialty-wafer, and custom-processing providers. The top five companies accounted for 44.0% of the market in 2025:

SK Siltron, Siltronic AG, Shin-Etsu Chemical Co. Ltd., SUMCO CORPORATION, and GlobalWafers Co. Ltd. compete through large-diameter wafer capacity, material quality, customer qualification, and supply reliability. Siltronic reported 2024 group sales of €1.41 billion amid a broad wafer-market inventory correction, while continuing its 300mm capacity strategy in Singapore. The contrast between weaker broad-market wafer conditions and continued investment in 300mm capacity illustrates how advanced logic and memory applications are influencing capital allocation.

Process technology suppliers compete on the ability to protect yield at progressively lower thicknesses. Applied Materials supplies precision CMP, plasma etch, and inspection technologies; Brewer Science provides temporary-bonding materials; DISCO Corporation supplies grinding systems and the TAIKO process; EV Group offers temporary bonding and debonding platforms; and SUSS MicroTec provides bonding, debonding, and cleaning equipment. SUSS MicroTec expanded temporary-bonding operations in Taiwan to address demand associated with AI and HBM manufacturing ^{[8]SUSS MicroTec, Temporary Bonding Solutions Enable AI Applications and Production Growth in Taiwan, 2023, suss.com}.

3M supplies UV-curable adhesive and wafer-support technologies for carrier-assisted processing. IceMOS Technology Ltd., Okmetic, Shanghai Simgui Technology Co. Ltd., Sil'tronix Silicon Technologies, SOITEC, and Skynova SA address specialty silicon, SOI, compound-semiconductor, MEMS, RF, and power-device requirements. SOITEC's Smart Cut technology is relevant to ultra-thin SOI layer transfer for RF and logic applications.

Mechatronic Systemtechnik GmbH supplies specialized handling and automation solutions for delicate wafers. Polishing Corporation of America supports wafer finishing and polishing activities, while Silicon Valley Microelectronics Inc. provides custom wafer processing. UniversityWafer Inc., Virginia Semiconductor Inc., Wafer World Inc., and WaferPro serve research, prototyping, custom, and specialty-wafer demand. Wafer Works Corporation supplies silicon wafers to mature-node markets, where thin-wafer demand is linked to analog, power, MEMS, and other established device categories.

Competitive advantage increasingly depends on an integrated qualification position. Wafer suppliers must meet thickness, flatness, and surface-quality requirements; equipment suppliers must limit damage and warpage; and material suppliers must ensure that adhesives and carriers remain compatible with thermal, chemical, and debonding conditions. This interdependence raises switching costs in advanced applications and favors companies able to collaborate across the process flow.

Recent Industry Developments

GlobalWafers - Sherman, Texas, Phase 1 opening, May 2025:

GlobalWafers opened Phase 1 of its 300mm silicon wafer facility in Sherman, Texas, strengthening the availability of domestic large-diameter wafer supply for U.S. semiconductor manufacturing.

TSMC Arizona - 4nm production commencement, January 2025:

TSMC began 4nm chip production in Arizona, marking an important step in the expansion of leading-edge manufacturing capacity in the United States.

DISCO Corporation - DFG8561 grinder development, December 2025:

DISCO developed the DFG8561 fully automatic grinder for 300mm wafers, targeting back-end processing requirements for automotive, analog, sensor, and related semiconductor applications.
