Semiconductor Bonding Equipment Market Size & Share 2026-2035

Semiconductor Bonding Equipment Market Size

The global semiconductor bonding equipment market was valued at USD 2.3 billion in 2025. The market is expected to grow from USD 2.5 billion in 2026 to USD 3.6 billion in 2031 & USD 5.2 billion in 2035, at a CAGR of 8.5% during the forecast period according to the latest report published by Global Market Insights Inc.

The recovery that followed the 2023 inventory correction has shifted demand toward a more technically demanding equipment mix. Semiconductor equipment billings reached USD 135.1 billion in 2025, while assembly and packaging equipment billings rose 21%, reflecting renewed capacity investment at the point where chip manufacturing transitions into packaging and test. ^{[1]ASMPT, IC & Discrete Semiconductor Solutions: Die Attach, Wire Bonding and Flip Chip, asmpt.com} Bonding equipment benefits from that investment through two routes: continuing volume demand for wire-bonded packages and the higher-value requirements created by chiplets, stacked memory, and advanced 3D integration.

Advanced packaging changes the economics of equipment selection. Conventional wire bonding remains appropriate where throughput, cost, and established qualification outweigh the value of tighter interconnect density. By contrast, thermocompression, wafer, and hybrid bonding tools are being qualified where HBM stacks, high-I/O logic packages, and image sensors require more exact alignment, cleaner interfaces, and tighter thermal control. This divergence keeps mature equipment relevant while concentrating incremental growth in systems capable of supporting sub-10 µm interconnect architectures.

Investment is therefore concentrating where bonding accuracy directly protects the yield of expensive die and memory stacks. Suppliers with credible positions across conventional assembly and advanced packaging have a portfolio advantage: mature platforms can stabilize revenue during consumer-electronics corrections, while thermocompression and hybrid-bonding programs create access to the higher-growth AI and memory cycle. That balance matters because advanced packaging adoption is not simply a unit-volume opportunity; it raises the cost of qualification, applications support, metrology, and field-service capability.

Key Drivers

Expansion of global semiconductor fabrication capacity and new fab construction

Bonding equipment demand is increasingly connected to geographic capacity expansion, rather than solely to replacement purchases at established outsourced semiconductor assembly and test facilities. In the United States, finalized CHIPS incentives include up to USD 6.6 billion for TSMC Arizona, USD 7.86 billion for Intel, USD 4.745 billion for Samsung, USD 6.165 billion for Micron, USD 1.6 billion for Texas Instruments, and up to USD 458 million for SK hynix's advanced-packaging facility in Indiana. ^{[3]Kulicke & Soffa Industries, Advanced Packaging Solutions and Thermocompression Bonding, kns.com} These projects extend from leading-edge logic production to HBM packaging and mature-node power devices, widening the range of bonding platforms required.

Europe is creating a second policy-supported procurement channel. The EU Chips Act entered into force in September 2023, while the ESMC joint venture involving TSMC, Bosch, Infineon, and NXP began construction of its Dresden facility in August 2024. ^{[4]BE Semiconductor Industries, Die Attach and Packaging Solutions, besi.com} Infineon also received final German funding approval for its Dresden Smart Power Fab in May 2025. The resulting demand is not uniform: advanced logic facilities favor precision flip-chip, thermocompression, and wafer-bonding capability, whereas automotive and industrial power-device capacity supports wedge bonding and high-reliability die attach.

Transition to advanced process nodes and denser interconnect architectures

Leading-edge process-node investment raises the value at risk in each assembled die and makes bonding accuracy more consequential to package yield. As I/O density rises, solder microbumps become a constraint for the most bandwidth-intensive assemblies. Cu-Cu hybrid bonding removes the microbump interface and enables pitches below 10 µm, but it also raises requirements for planarization, surface activation, particle control, alignment, and post-bond metrology.

Equipment development is responding to this precision requirement. SUSS MicroTec's XBC300 Gen2 D2W platform specifies post-bond accuracy of ±200 nm, while EV Group's EVG40 D2W platform was introduced with full die-overlay measurement at production throughput. The commercial consequence is a shift from purchasing a standalone bonder to qualifying an integrated process capability. Suppliers that can demonstrate repeatability alongside metrology and process control gain an advantage as die value and package complexity increase.

Rising adoption of advanced packaging and heterogeneous integration

Heterogeneous integration expands the number and complexity of bonding steps per finished package. Chiplets allow functions to be manufactured on different process nodes and combined in a package optimized for system performance, but that design choice substitutes advanced interconnect and assembly work for some front-end scaling. ASMPT reported 23% growth in advanced-packaging solutions revenue in FY2024, with record thermocompression-bonding revenue and bookings linked to AI chiplet and HBM applications. Besi reported that advanced packaging represented approximately 70% of its FY2024 revenue, highlighting the extent to which leading suppliers are already exposed to this transition.

Hybrid bonding has moved beyond laboratory development in stacked CMOS image sensors and is progressing through memory and logic applications. Peer-reviewed work has demonstrated high electrical yield at 0.5-1.2 µm bond-pad pitches using SiCN bonding films, indicating that the technical roadmap extends well below conventional flip-chip dimensions. The equipment opportunity includes not only the bond itself, but surface preparation, carrier handling, cleaning, alignment, inspection, and corrective metrology.

Increasing semiconductor manufacturing localization and government-backed incentives

Localization programs create demand in regions where equipment suppliers historically served mainly through imports or field support. New North American facilities from SK hynix, Intel, Micron, and other recipients of CHIPS incentives introduce advanced-packaging and memory-oriented procurement closer to end customers. European projects add a different demand profile, shaped by automotive, industrial, and power semiconductor production alongside selected advanced-node capacity.

The commercial effect extends beyond tool shipment. New fabrication and assembly sites need applications engineering, spare-parts coverage, customer training, and qualification support before they reach stable utilization. A supplier's ability to localize those functions can become material when customers seek process-of-record equipment for a new line. This favors established vendors with broad service networks, while offering regional specialists opportunities in high-mix, research, defense, and power-device packaging.

Growth in high-performance computing, AI, and data center chip production

AI accelerators and HBM packages are the most concentrated demand source for high-specification bonding equipment. HBM requires repeated die-stacking operations, and each increase in stack height or bandwidth raises sensitivity to alignment accuracy, thermal budget, and interconnect yield. ASMPT reported its first hybrid-bonding delivery to a logic customer in the third quarter of 2024 and a bulk HBM-related hybrid-bonding order in the fourth quarter. Besi indicated that hybrid-bonding demand was expected to accelerate as customers advanced HBM4 roadmaps.

Kulicke & Soffa's fluxless thermocompression customer base exceeded 30 delivered systems across five customers in November 2024, demonstrating that advanced bonding is moving through early production qualification rather than remaining solely a development-line technology. Demand remains concentrated among a limited number of foundries, memory manufacturers, and packaging providers, which can make order patterns volatile. Nonetheless, data-center spending pulls the commercialization timetable for thermocompression and hybrid bonding forward because performance gains at the package level have direct value in compute and memory bandwidth.

Key Restraints

High capital intensity and long qualification cycles

Advanced bonding platforms carry a more demanding economic threshold than conventional wire bonders. Customers must fund the equipment, process development, consumables, metrology, and reliability validation before a platform can enter volume production. For OSATs operating on contract manufacturing margins, that cost structure makes utilization a central investment criterion. Long qualification cycles can slow adoption even when a new platform has a persuasive technical specification.

This constraint is particularly acute in hybrid bonding and thermocompression bonding. A customer may need 12-24 months of validation before committing to volume deployment, which separates product announcements from revenue conversion. The 2023 equipment contraction also demonstrated how quickly customers can defer non-critical tool purchases during inventory corrections. ASMPT's FY2024 results showed this tension: advanced packaging grew, but group profitability remained affected by weaker demand in other equipment categories.

Supply-chain concentration and dependence on specialized sub-components

Wafer and hybrid-bonding systems depend on precision motion stages, air bearings, optical alignment assemblies, and specialized consumables that are not readily interchangeable. A disruption in any of these inputs can delay equipment delivery or increase the cost of fulfilling customer orders. Export-control changes add another planning variable for suppliers with international component sourcing and customer footprints. U.S. restrictions on selected advanced semiconductor technologies have made equipment supply-chain planning more complex for companies operating across the U.S.-China ecosystem.

The concentration of several bonding-equipment suppliers and component ecosystems in Japan and Europe also creates operational exposure to logistics interruptions, currency movements, and localized capacity constraints. In periods of strong demand, customers may place orders early to secure tool availability; in softer periods, the same lead-time uncertainty can encourage postponement. The result is a more volatile order environment for highly specialized equipment than for platforms with standardized components and established secondary supply.

The same qualification burden that slows new technology adoption can strengthen incumbent positions. Replacing a process-of-record system in a high-precision package requires reliability revalidation, process retuning, and production-risk acceptance by the customer. SUSS MicroTec's reported temporary-bonding share of 30-40% overall and more than 50% among leading memory manufacturers illustrates the value of established process relationships in demanding applications. Suppliers that pair differentiated performance with local applications support can convert high entry barriers into resilient installed-base revenue; suppliers without that support may find that a technically capable tool is insufficient to win volume production.

Semiconductor Bonding Equipment Market Segment Analysis

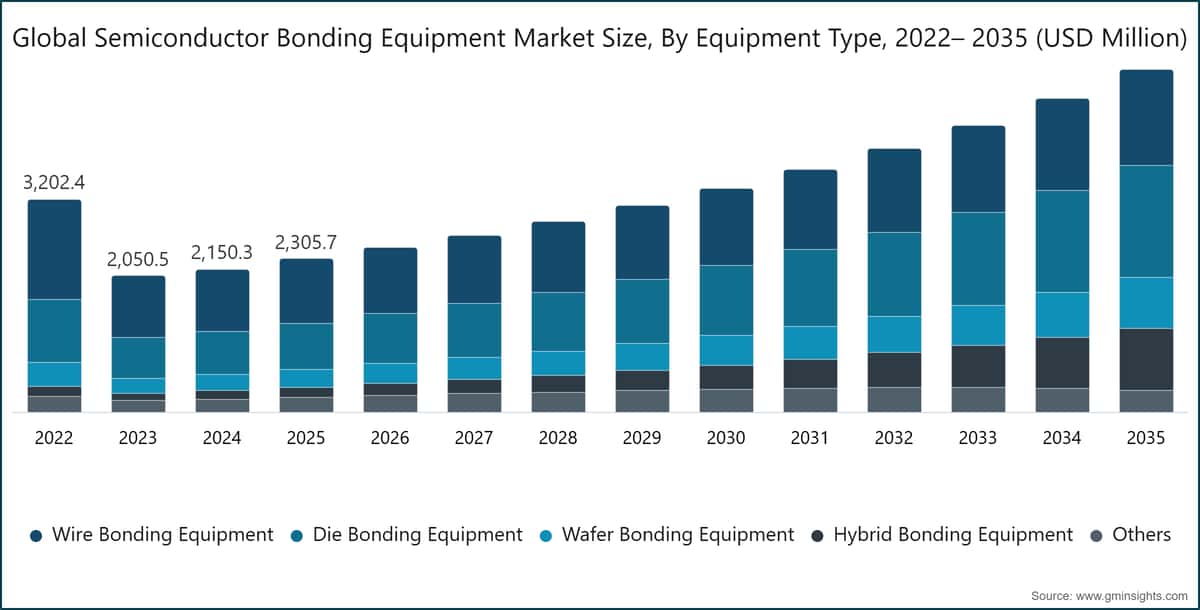

By Equipment Type

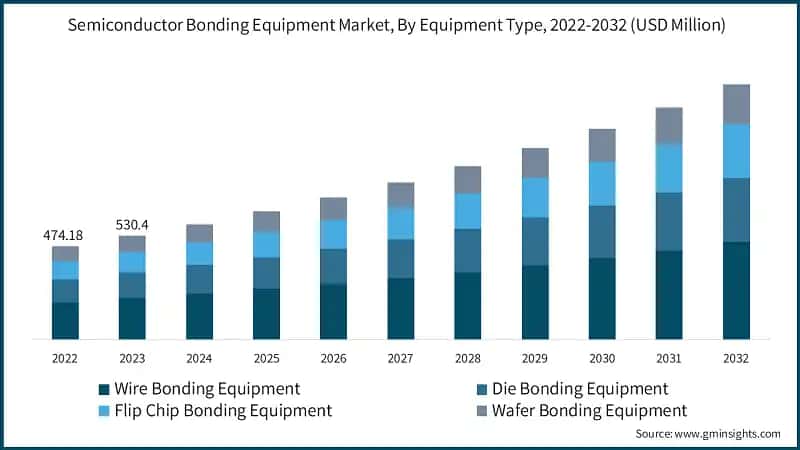

Wire bonding equipment was the largest equipment category in 2025 because it remains the cost-effective interconnect method for a broad installed base of consumer, automotive, telecom, and industrial packages. Modern platforms continue to improve in fine-pitch capability, vision-assisted alignment, copper-wire processing, and automation, preserving replacement and capacity demand even as advanced packaging absorbs a growing share of incremental equipment spending.

The segment's slower growth reflects maturity rather than obsolescence. Shinkawa's UTC-RZ1, announced in December 2024, was designed with a 25% smaller footprint, 14% higher units-per-hour output, and 37% greater area productivity than its predecessor. Kulicke & Soffa also received an order for 1,000 RAPID Pro ball-bonding systems in May 2024, confirming continued volume procurement in conventional assembly. These investments indicate that productivity and factory-floor efficiency remain purchasing drivers where hybrid-bonding economics are not required.

Die bonding spans conventional die attach, flip-chip, thermocompression, and precision placement for chiplet-based packages. Its growth reflects the coexistence of mainstream packaging demand with high-value advanced applications. Flip-chip bonders serve packages where current bump pitches remain adequate, while thermocompression platforms address tighter-pitch HBM and logic-chiplet integration.

The segment's economics improve as the value of the die being assembled rises. ASMPT has positioned high-precision flip-chip and thermocompression platforms around AI and HPC packages, while Kulicke & Soffa has expanded fluxless thermocompression deployments. This creates a broadening divide within die bonding: conventional systems compete on throughput and flexibility, whereas advanced systems compete on placement accuracy, process window, and qualification status.

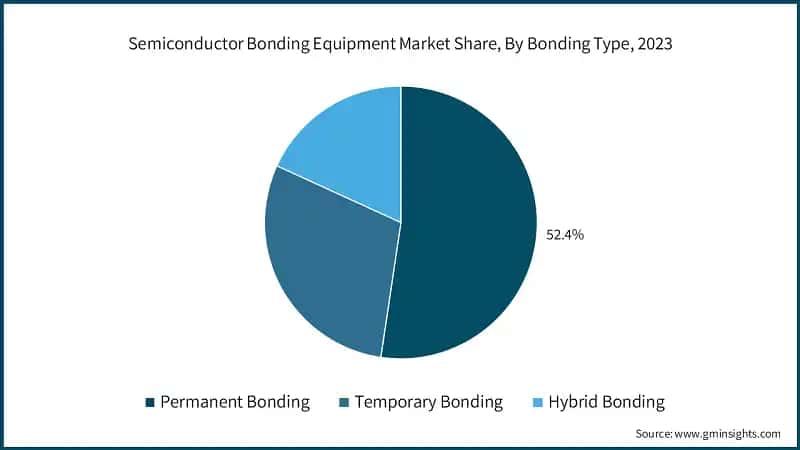

By Bonding Technology

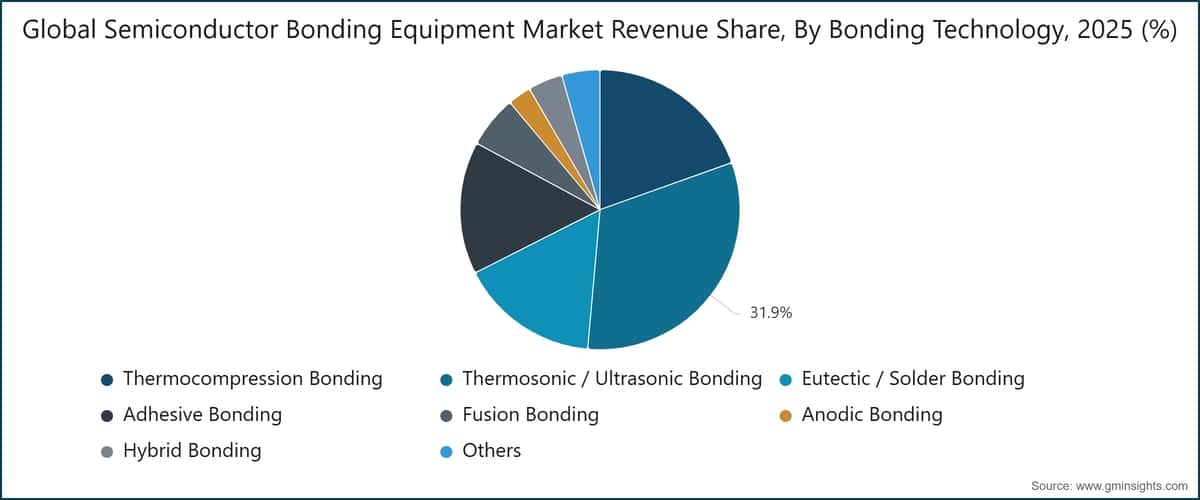

Thermosonic and ultrasonic bonding remained the largest technology category in 2025. Thermosonic ball bonding is deeply embedded in standard semiconductor assembly, while ultrasonic wedge bonding remains essential for aluminum and heavy-copper interconnects in power devices. Its continuing scale reflects the volume of mature-node packages for which wire bonding remains commercially optimal.

Thermocompression bonding is expanding with HBM and logic-chiplet assembly because it provides a route to high-density copper-pillar interconnects before hybrid bonding is broadly qualified. Its growth is tied to advanced-package architecture rather than generalized semiconductor output. Supplier disclosures from ASMPT and Kulicke & Soffa indicate that customer adoption is progressing through production qualification and early capacity deployment.

Eutectic and solder bonding remain important in power devices, high-reliability packages, flip-chip assembly, and hermetic MEMS integration. Their role is reinforced where thermal conductivity, mechanical durability, and long-term reliability outweigh the need for the finest interconnect pitch.

By Application

Logic Devices

Logic-device packaging is moving toward chiplet integration, where processor, accelerator, I/O, and memory dies are assembled in high-density packages. This creates demand for high-precision flip-chip, thermocompression, and hybrid-bonding platforms. ASMPT's first hybrid-bonding delivery to a logic customer in 2024 illustrates the shift from development programs toward customer qualification.

Memory Devices

Memory combines high-volume wire-bonded DRAM and NAND packaging with the rapidly expanding HBM opportunity. HBM stacking requires precise thermocompression operations and is a key route for hybrid-bonding commercialization. Kulicke & Soffa's ATPremier MEM PLUS was introduced for high-volume DRAM and memory wire bonding, while advanced platforms are being positioned for the HBM transition.

Power Semiconductors

IGBT, SiC MOSFET, and GaN device packages use thick-wire wedge bonding, eutectic die attach, and other processes optimized for current handling and thermal cycling. Automotive electrification, charging systems, and renewable-energy inverters support this demand. Kulicke & Soffa introduced the Asterion-PW ultrasonic pin-welding platform for SiC power semiconductor applications in March 2025.

MEMS Devices

MEMS manufacturing uses fusion, anodic, and adhesive wafer bonding for encapsulation and device formation. The relevant equipment requirement is application-specific: automotive sensors prioritize durability, while consumer and industrial devices often emphasize cost, wafer size, and integration with glass or silicon substrates.

By End-Use Industry

Consumer electronics remained the largest end-use industry because it supports the largest installed base of wire-bonded packages. Demand is centered on high-volume assembly, and procurement decisions emphasize throughput, footprint, automation, and cost per package. China remains especially important to this installed base: Kulicke & Soffa reported that China-located customers represented approximately 59% of FY2024 revenue, while ASMPT reported approximately 38% of group revenue from China.

Automotive demand is expanding through electrification, ADAS, and rising electronic content per vehicle. SiC and IGBT power modules require high-current, thermally durable interconnects, while radar, camera, and sensing systems add demand for reliable device packaging. Automotive qualification cycles are longer than in consumer electronics, but they can support a steadier replacement and capacity-expansion profile once a platform is approved.

Data Centers & HPC is the fastest-growing end-use segment. AI accelerators combine logic dies with HBM stacks in advanced packages, making this segment unusually intensive in thermocompression, temporary bonding, metrology, and hybrid-bonding development. New HBM-related investments, including SK hynix's Indiana advanced-packaging facility, reinforce the link between data-center infrastructure and high-specification bonding equipment procurement. ^{[5]SEMI, Advanced Packaging Technologies and Semiconductor Packaging Equipment, semi.org}

.

Hybrid bonding's commercialization pathway is also becoming clearer. CMOS image sensors supplied early volume proof, HBM is intensifying requirements for stacking and overlay control, and logic chiplets represent the next significant extension. The strategic question for suppliers is whether they can carry process credibility from one application into another. EV Group and SUSS MicroTec have strong wafer, temporary-bonding, and hybrid-bonding positions; ASMPT, Besi, and Kulicke & Soffa are extending precision die-bonding and thermocompression capabilities toward the same opportunity. The winners will be determined by process qualification and customer support as much as by equipment specification.

Semiconductor Bonding Equipment Market Regional Analysis

North America

United States

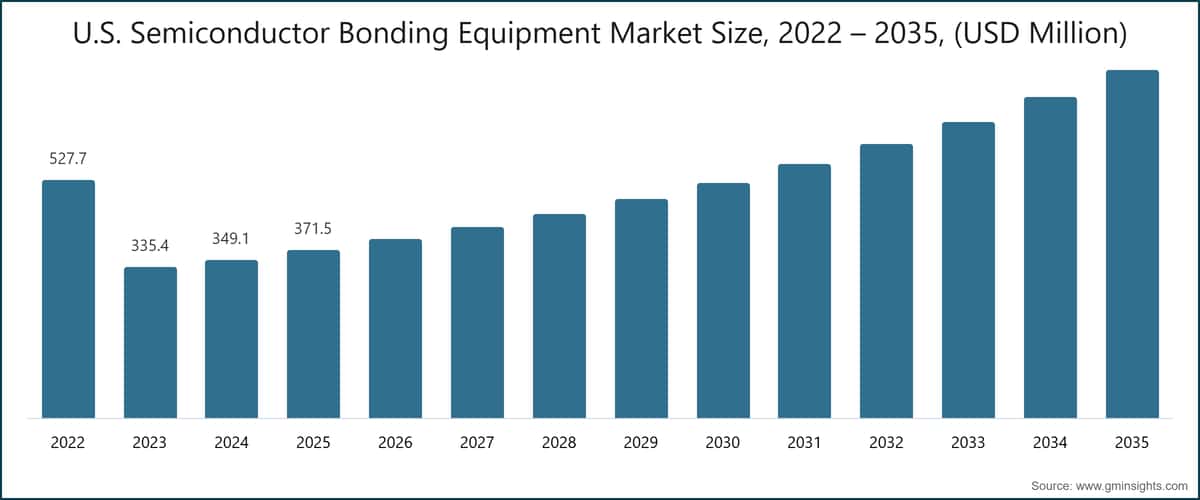

The U.S. market is benefiting from a policy-led expansion of semiconductor manufacturing and advanced packaging. CHIPS awards to TSMC, Intel, Samsung, Micron, Texas Instruments, and SK hynix span logic, memory, packaging, and power-semiconductor capacity. ^{[6]U.S. Department of Commerce, Center for Security and Emerging Technology, Re-Shoring Advanced Semiconductor Packaging, Georgetown University, bdt.semi.ac.cn} Since projects commission over multiple years, bonding-tool procurement is likely to follow phased construction, qualification, and capacity-ramp schedules rather than arrive as a single peak.

Micro Point Pro (MPP) Ltd serves the region's high-mix and specialty packaging market. Its iBond5000 Dual platform supports ball-wedge and wedge-wedge bonding across wire diameters from 17 to 75 µm, positioning the company in optoelectronics, microwave, hybrid/MCM, and high-power applications where flexibility can outweigh maximum throughput.

Canada

Canada's market is smaller but supported by photonics, quantum, research, and pilot-production activity. Its growth reflects a modest starting base and demand for precision wafer and die-bonding processes rather than large-scale commodity assembly.

Europe

Europe's demand is tied to policy-backed fab investments and the region's established automotive, industrial, power semiconductor, MEMS, and research ecosystem. ESMC's Dresden facility and Infineon's Smart Power Fab add prospective demand for backend equipment, but their technology requirements differ: ESMC increases demand for advanced manufacturing support, while Infineon's power-device emphasis favors robust die-attach and wire-bonding processes. ^{[7]Tokyo Electron, Semiconductor Packaging and Advanced Packaging Technologies, tel.com}

United Kingdom

The UK market is supported by compound semiconductors, photonics, quantum technologies, and specialized packaging. The absence of a greenfield production project comparable to Dresden moderates growth, while research and high-value device applications preserve demand for precision equipment.

Germany is Europe's principal market, supported by Dresden's manufacturing cluster and the presence of equipment suppliers and research institutions. Hesse GmbH, F&K Delvotec Bondtechnik GmbH, and F&S Bondtec Semiconductor GmbH serve specialized automotive, industrial, defense, power-semiconductor, photonics, and MEMS applications. EV Group's partnership with Fraunhofer IZM-ASSID in Dresden illustrates the role of European research infrastructure in advancing wafer-bonding and debonding processes.

Asia Pacific

Asia Pacific is the largest and fastest-growing market because it combines the world's deepest fabrication, memory, OSAT, and advanced-packaging capacity. China, Taiwan, and South Korea accounted for 79% of global semiconductor-equipment billings in 2025, while Taiwan's spending rose 90% to USD 31.5 billion and South Korea's increased 26% to USD 25.8 billion.

China

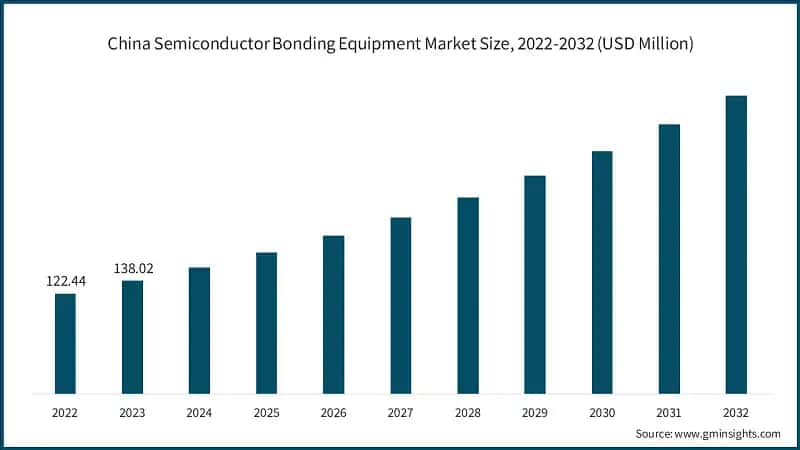

China is a major destination for semiconductor equipment and high-volume packaging capacity. Bonding demand is driven by consumer electronics, telecommunications, automotive, and domestic manufacturing investment. The region remains especially consequential to ASMPT and Kulicke & Soffa because of their reported customer-revenue exposure.

Japan

Japan combines domestic semiconductor investment with a dense concentration of bonding-equipment suppliers. Shinkawa Ltd, Fasford Technology Co. Ltd, KAIJO Corporation, Athlete FA Corporation, Panasonic Connect Co. Ltd, Canon Machinery Inc, Toray Engineering Co. Ltd, and Shibuya Corporation serve wire bonding, die bonding, flip-chip, precision assembly, and specialized packaging applications. Japan's equipment billings increased 22% in 2025, supported by domestic investment and demand linked to memory, image sensors, and leading-edge manufacturing.

Middle East and Africa

The Middle East and Africa remains the smallest and slowest-growing regional market. Early semiconductor-technology investments in the UAE and Saudi Arabia are not yet equivalent to a production-scale assembly ecosystem. Large bonding-equipment demand depends on the development of engineering capability, supply chains, fabrication infrastructure, and qualified packaging operations. South Africa contributes a limited established electronics-manufacturing base.

North America and Europe are adding strategically important demand nodes rather than displacing Asia Pacific. CHIPS-funded U.S. sites and European projects create a procurement opportunity for suppliers able to provide applications engineering, spares, and rapid process support near new fabs and packaging facilities. The regional shift favors companies with global service capacity, but it also supports specialty providers serving defense, power devices, photonics, and research-oriented packaging. Latin America and MEA remain contingent opportunities: meaningful volume depends on manufacturing ecosystems that are still developing.

Semiconductor Bonding Equipment Market Share & Competitive Landscape

The market is moderately concentrated. ASMPT held 18.6% of the market in 2025, followed by Besi at 16.8%, Kulicke & Soffa at 14.9%, EV Group at 8.7%, and SUSS MicroTec SE at 7.4%. Together, these five companies accounted for 66.4% of market revenue. Competition is segmented by technology: conventional wire-bonding suppliers compete on throughput, uptime, cost, and automation, whereas suppliers of thermocompression, wafer, and hybrid-bonding systems compete on process accuracy, yield, metrology integration, and qualification status.

ASMPT - 18.6% market share, USD 428.85 million (2025)

ASMPT has broad exposure across die bonding, flip-chip, thermocompression bonding, hybrid bonding, and wire bonding. Its Semiconductor Solutions business benefited from advanced-packaging demand in FY2024, including record thermocompression-bonding revenue and bookings. The company's first logic-customer hybrid-bonding delivery and subsequent HBM-related orders position it across two of the most important commercialization paths for advanced bonding.

BE Semiconductor Industries (Besi) - 16.8% market share, USD 387.35 million (2025)

Besi is concentrated in advanced die-bonding equipment. Its FY2024 performance reflected demand from hybrid-bonding and photonics applications, with advanced packaging representing approximately 70% of revenue and a reported gross margin of 65.2%. This focus creates substantial upside from advanced-package adoption, although it also makes the company more exposed to investment timing among a limited number of leading-edge customers.

Kulicke & Soffa - 14.9% market share, USD 343.54 million (2025)

Kulicke & Soffa combines its leading position in ball bonding with expansion into thermocompression and fluxless thermocompression bonding. FY2024 revenue included USD 357.8 million from ball-bonding equipment and USD 105.8 million from wedge-bonding equipment, illustrating the continued importance of conventional assembly to its portfolio. Its APTURA, ATPremier MEM PLUS, and Asterion-PW programs give the company routes into hybrid-bonding development, memory packaging, and SiC power-device assembly.

EV Group - 8.7% market share, USD 200.59 million (2025)

EV Group is a specialist in wafer bonding, temporary bonding, layer transfer, and hybrid bonding. Its GEMINI system addresses 300 mm MEMS manufacturing, while its EVG880 LayerRelease system supports thin-wafer and 3D-integration process flows. The EVG40 D2W metrology platform expands its position from bonding equipment toward overlay-control capability, an increasingly important differentiator in chiplet and HBM production.

SUSS MicroTec SE - 7.4% market share, USD 170.62 million (2025)

SUSS MicroTec is active in advanced backend bonding, particularly temporary bonding and hybrid bonding. The company reported FY2024 revenue of EUR 446.1 million, with Advanced Backend Solutions contributing EUR 314.7 million and bonding-system revenue more than tripling year over year. Its XBC300 Gen2 product line and expanded Hsinchu manufacturing footprint position the company to serve advanced-packaging customers requiring both process precision and regional manufacturing support.

Regional Key Players

Micro Point Pro (MPP) Ltd serves North American specialty, research, defense, and high-mix packaging applications. In Asia Pacific, Shinkawa Ltd, Fasford Technology Co. Ltd, KAIJO Corporation, Athlete FA Corporation, Panasonic Connect Co. Ltd, Canon Machinery Inc, Toray Engineering Co. Ltd, and Shibuya Corporation address wire bonding, die bonding, precision assembly, and related packaging requirements. Hesse GmbH, F&K Delvotec Bondtechnik GmbH, and F&S Bondtec Semiconductor GmbH serve European high-reliability, industrial, automotive, power-semiconductor, photonics, and specialty packaging markets. These regional companies remain important where application-specific process knowledge, flexible production configurations, or local service responsiveness matter more than broad global product portfolios.

Recent Industry Developments

ASMPT delivered its first hybrid-bonding system to a logic customer in the third quarter of 2024 and secured HBM-related hybrid-bonding orders in the fourth quarter of 2024. The company confirmed that the HBM tools were scheduled for delivery by mid-2025, extending its advanced-bonding presence across logic and memory applications.

Kulicke & Soffa received an order for 1,000 RAPID Pro ball-bonding systems in May 2024. The order was scheduled for fulfillment over multiple quarters and demonstrated continuing capacity demand for conventional wire-bonding platforms.

Kulicke & Soffa and ROHM announced the CuFirst hybrid-bonding process in November 2024. The process supports chip-to-wafer hybrid bonding at copper-pillar pitches down to 8 µm using Kulicke & Soffa's APTURA FTC platform.

EV Group launched the EVG880 LayerRelease system in May 2024. The system was introduced with a two-fold throughput improvement for infrared laser-based layer debonding from silicon carriers.

EV Group and Fraunhofer IZM-ASSID expanded their wafer-bonding partnership in June 2024. The collaboration focuses on bonding and debonding technologies for CMOS, heterogeneous integration, and quantum-computing applications at the CEASAX center in Dresden.

SUSS MicroTec reported record FY2024 results, with bonding-system sales more than tripling year over year. The growth was driven by temporary-bonding orders associated with AI-chip and HBM-module production.
