Semiconductor Process Control Equipment Market Size & Share 2026-2035

Semiconductor Process Control Equipment Market Size

The global semiconductor process control equipment market was valued at USD 12.6 billion in 2025 and is projected to advance from USD 13.5 billion in 2026 to USD 27.3 billion by 2035, reflecting a CAGR of approximately 8.1% over the 2026–2035 forecast period.

This sustained expansion is anchored in the convergence of three structural forces: the acceleration of advanced node scaling to 3nm and below - which compels manufacturers to deploy more intensive metrology and inspection at every process step - a global wave of greenfield and brownfield fab investments triggered by industrial policy and AI-driven demand, and the emergence of heterogeneous integration as a mainstream packaging paradigm requiring front-end-grade process control in back-end environments. Semiconductor equipment spending globally reached USD 135.1 billion in 2025, growing 15% year-on-year from USD 117.1 billion in 2024, driven by continued capacity additions in advanced logic, AI-accelerator production, and high-bandwidth memory.^{[1]SEMI, SEMI Reports Global Semiconductor Equipment Billings Reached $135 Billion in 2025, April 2026, semi.org} Global semiconductor sales reached a record USD 627.6 billion in 2024 - a 19.1% increase from USD 526.8 billion in 2023 - reflecting surging demand for AI processors and memory devices that in turn underpins chipmaker capital expenditure and, downstream, equipment procurement.^{[2]Semiconductor Industry Association, Global Semiconductor Sales Totaled $627.6 Billion in 2024, February 2025, semiconductors.org} Fabrication capacity worldwide expanded at 6% in 2024 and is projected to rise a further 7% in 2025 to reach a record 33.7 million wafers per month in 8-inch equivalents, with leading-edge capacity at 5nm and below growing 13% in 2024 alone. The semiconductor process control equipment segment - encompassing wafer inspection systems, patterned and unpatterned defect review, dimensional and materials metrology, and integrated workflow analytics - operates as the yield-protection layer within this expanding manufacturing base, with demand intensifying as each new technology node requires more measurement points, smaller detectable defect sizes, and greater measurement precision than its predecessor.

The commercial consequence is most pronounced during qualification and yield-ramp periods. New fabs require inspection and metrology coverage before volume output is stabilized, and process complexity raises the cost of an undetected excursion after production begins. Record semiconductor sales and higher global equipment billings provide the demand backdrop, but their relevance to process control lies in the associated ramp of AI processors, memory, and advanced logic rather than in aggregate equipment spending alone. Suppliers able to connect defect detection, measurement, and corrective action within a fab workflow are therefore positioned to capture value from both new capacity and higher measurement intensity.

This report covers the global semiconductor process control equipment market for the historic period 2022–2025, with 2025 as the base year and a forecast period spanning 2026 to 2035. Market values are reported in USD million (body text and tables), with USD billion used where contextually appropriate.

Market values: 2025 base value USD 12.60 billion; 2026 value USD 13.54 billion; 2035 projected value USD 27.32 billion; CAGR 2026–2035 approximately 8.1%.

Key Drivers

Driver 1 - Increasing complexity at advanced semiconductor nodes. The scaling trajectory toward 3nm, 2nm, and eventually sub-2nm gate-all-around devices fundamentally redefines what process control equipment must accomplish. At GAA node geometries, transistor structures are three-dimensional with internal features that surface-based optical tools cannot fully characterize; critical dimensions at the nanosheet level demand measurement approaches combining scatterometry, CD-SEM, and X-ray-based techniques applied across dozens of incremental process steps.^{[3]IEEE International Roadmap for Devices and Systems (IRDS), Metrology Chapter 2023, 2023, irds.ieee.org} The IEEE International Roadmap for Devices and Systems identifies sub-nanometer measurement precision requirements for logic devices at advanced nodes, with overlay control tightening to single-digit nanometer tolerances and defect detection sizes shrinking below 10 nanometers - well inside the range where a single particle can destroy a transistor. Stochastic variation introduced by EUV lithography adds a further complication: line-edge roughness and local CD variation must be measured statistically, not deterministically, requiring denser sampling and more sophisticated statistical process control software. Each new technology node generation typically increases the number of process control steps by roughly 15–20%, compounding the demand effect across a growing installed wafer base.

Driver 2 - Rising investment in new fabs and capacity expansion worldwide. The scale of greenfield semiconductor manufacturing investment announced since 2022 is unprecedented in industry history. TSMC has announced a total U.S. investment commitment of USD 165 billion encompassing three new fabrication plants, two advanced packaging facilities, and a major R&D center in Phoenix, Arizona.^{[4]TSMC, TSMC Intends to Expand Its Investment in the United States to US$165 Billion to Power the Future of AI, March 2025, pr.tsmc.com} The U.S. CHIPS and Science Act catalyzed direct awards to multiple chipmakers: Intel received up to USD 7.865 billion, TSMC up to USD 6.6 billion, Samsung up to USD 4.745 billion, and Micron up to USD 6.44 billion in incentive funding. The SEMI World Fab Forecast projects 18 new fab construction projects beginning in 2025 alone, encompassing 15 facilities at the 300mm wafer diameter that will drive process control equipment demand once they enter volume production between 2026 and 2028. In Europe, the European Chips Act is supporting investments including GlobalFoundries' EUR 1.1 billion expansion at its Dresden site targeting production capacity exceeding one million wafers per year by end-2028. Every new greenfield fab represents a multi-year capital equipment cycle in which process control tools are purchased for qualification, ramp, and volume production phases sequentially.

Driver 3 - Growing emphasis on yield improvement and manufacturing efficiency. At leading-edge nodes, the cost per wafer has escalated to the point where even a 1 percentage point improvement in yield translates into tens of millions of dollars in additional revenue per year for a high-volume foundry. This economic pressure has elevated process control from a quality assurance function to a core yield management strategy. Advanced process control (APC) software, integrated with inline metrology data, enables real-time recipe adjustments that reduce process variability across tool-to-tool and lot-to-lot variation. Onto Innovation's FY2024 growth - with Dragonfly inspection tool revenue and Iris film metrology revenue both more than doubling - reflects the expanding willingness of chipmakers to invest in process control platforms that demonstrably compress yield ramp timelines. Camtek similarly recorded 36% revenue growth in 2024 as HPC and AI chip manufacturers expanded inspection coverage across advanced packaging steps.

Driver 4 - Expansion of advanced packaging and heterogeneous integration. The shift from monolithic die scaling to system-in-package architectures using CoWoS, Fan-Out Wafer-Level Packaging, and hybrid bonding has created an entirely new application domain for process control equipment. These packaging schemes require micro-bump inspection, redistribution layer (RDL) thickness and composition metrology, die alignment measurement, and wafer bonding quality control - all at dimensional scales and throughput requirements that resemble front-end manufacturing rather than traditional back-end assembly. Nova Ltd.'s 2024 revenue growth of 30% year-on-year to USD 672.4 million was partly driven by advanced packaging processes more than doubling revenues within that segment. Camtek reports that HPC-related inspection for advanced packaging represented approximately 50% of its FY2024 revenue, with AI GPU and memory chiplet packages driving the demand. As TSMC, Samsung, and Intel expand CoWoS and EMIB packaging capacity to meet AI accelerator demand, the inspection and metrology requirements per package introduction grow proportionally.

Driver 5 - Adoption of data-driven and automated manufacturing environments. Leading semiconductor manufacturers are transitioning toward AI-augmented process control environments in which metrology and inspection data from hundreds of tools are continuously ingested by machine learning models that predict excursions, recommend corrective actions, and optimize measurement sampling plans in real time. TSMC has deployed NVIDIA AI capabilities across computational lithography, defect inspection, and advanced process control within its fabs, using GPU-accelerated cuML libraries to process hundreds of thousands of parameters from thousands of production steps simultaneously. This architectural shift increases the software component of process control equipment purchases, enables more frequent and targeted measurements on existing hardware, and raises switching costs for both tool hardware and the analytics platforms built on top of it.

Key Restraints

Restraint 1 - High capital intensity and rising cost of advanced process control tools. A single high-end EUV mask inspection system from Lasertec can cost in the range of multiple tens of millions of dollars, while leading-edge patterned wafer inspection platforms from KLA command comparable price points. As process nodes shrink and tool complexity increases, the capital outlay required for a fully equipped process control suite at a leading-edge fab grows commensurately. For smaller integrated device manufacturers, fabless-adjacent companies, and chipmakers in emerging markets attempting to build indigenous fabs, the cost of process control equipment represents a meaningful fraction of total WFE spending, creating adoption barriers that are difficult to overcome without substantial government subsidy or co-investment structures. Even among established IDMs, process control capital budgets compete with deposition, etch, and lithography investments, and during industry down-cycles, discretionary tool upgrades may be deferred. This restraint also applies to total-cost-of-ownership: advanced e-beam systems require cleanroom infrastructure, vibration isolation, and trained service personnel whose costs compound the headline acquisition price.

Restraint 2 - Increasing complexity of tool integration and data overload in fabs. A modern leading-edge 300mm fab deploys hundreds of process control tools across different vendors, each generating high-frequency data streams in proprietary formats. Integrating these data streams into a coherent, real-time factory analytics layer requires substantial investment in middleware, data infrastructure, and engineering expertise. The gap between the rate at which process control tools generate data and the fab's capacity to interpret and act on that data creates a practical ceiling on inspection frequency and measurement density per wafer. Chipmakers that cannot extract actionable intelligence from the data produced by their existing tool fleet will hesitate to purchase additional measurement capacity. Interoperability standards remain incomplete, and the risk of vendor lock-in when committing to a particular analytics platform discourages some buyers from fully deploying next-generation process control capabilities. As inspection and metrology systems increasingly incorporate AI algorithms, the burden shifts further toward software validation, model retraining, and cybersecurity governance - domains where many fab operations teams lack dedicated resources.

This creates a bifurcated purchasing environment rather than a uniform upgrade cycle. Advanced-node foundries will prioritize sensitivity, closed-loop analytics, and rapid excursion response; mature-node and specialty fabs will weigh coverage against tool cost, integration effort, and service capability. Vendors that package inspection, metrology, and factory analytics into an interoperable workflow can reduce a buyer's implementation risk, while suppliers dependent on stand-alone hardware face greater exposure to deferred upgrades. The restraint is therefore not simply lower spending: it shifts competitive advantage toward platforms that convert large data volumes into operational decisions without adding a parallel data-management burden.

Semiconductor Process Control Equipment Market Segment Analysis

By Equipment Type

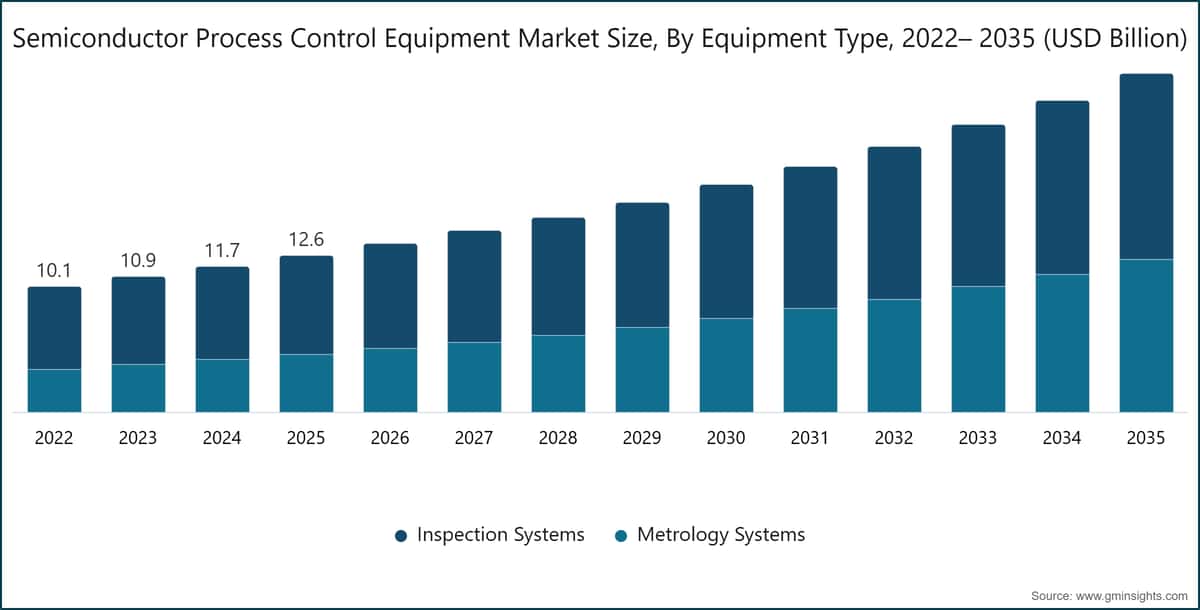

Inspection Systems constituted the larger of the two equipment-type segments in 2025 at USD 7,979.14 million, reflecting the established and expansive installed base of patterned wafer inspection, unpatterned wafer inspection, and defect review platforms across both leading-edge and mature fabs globally. Within inspection, patterned wafer inspection addresses the most technically demanding use case-detecting defects on processed wafers against a complex pattern background-and accounts for the dominant revenue share. Patterned wafer inspection tools must identify increasingly small killer defects, including stochastic printing defects from EUV processes, at throughputs compatible with high-volume manufacturing. KLA's Surfscan and 2930 series and competing platforms from Hitachi High-Tech (CD-SEM) represent the primary tools addressing this requirement. Unpatterned wafer inspection-scanning blank or lightly processed wafers for particles, scratches, and surface anomalies-serves as the first quality gate after wafer delivery and after critical deposition steps; this sub-segment's demand is linked directly to wafer start volumes rather than node complexity, making it a more stable, volume-sensitive revenue stream. Defect review systems, primarily high-resolution e-beam review tools, are deployed after inspection flags candidate defects, providing classification and root-cause information; their adoption expands as chipmakers shift toward automated defect classification workflows that reduce engineer review time.

Metrology Systems, while representing USD 4,620.86 million in 2025, carries the highest CAGR in the segment at 10.3%, reflecting the increasing measurement burden at advanced nodes. Dimensional metrology encompasses CD-SEM for critical dimension measurement, optical scatterometry for overlay and film stack characterization, and emerging X-ray-based techniques (CD-SAXS) for 3D feature measurement that optical methods cannot resolve. Material metrology covers film thickness, composition, stress, and surface chemistry-properties critical for multi-layer gate stacks, barrier layers in DRAM, and metallization in advanced interconnects. At 2nm GAA nodes and below, gate-all-around nanosheet width, fin height, and interface layer quality all require measurement to sub-angstrom precision, driving demand for higher-performance tools across both sub-categories. The advanced packaging transition further expands metrology demand: RDL line width and spacing, solder bump height uniformity, hybrid bonding pad recess depth, and through-silicon via (TSV) characterization are all new measurement requirements that were largely absent from traditional metrology roadmaps five years ago. Nova Ltd.'s 30% revenue growth in 2024, driven partly by advanced packaging metrology, illustrates how structurally the demand landscape is broadening.^{[5]Nova Ltd., Nova Reports Record Fourth Quarter and Full Year 2024 Results, February 2025, novami.com}

By Technology Type

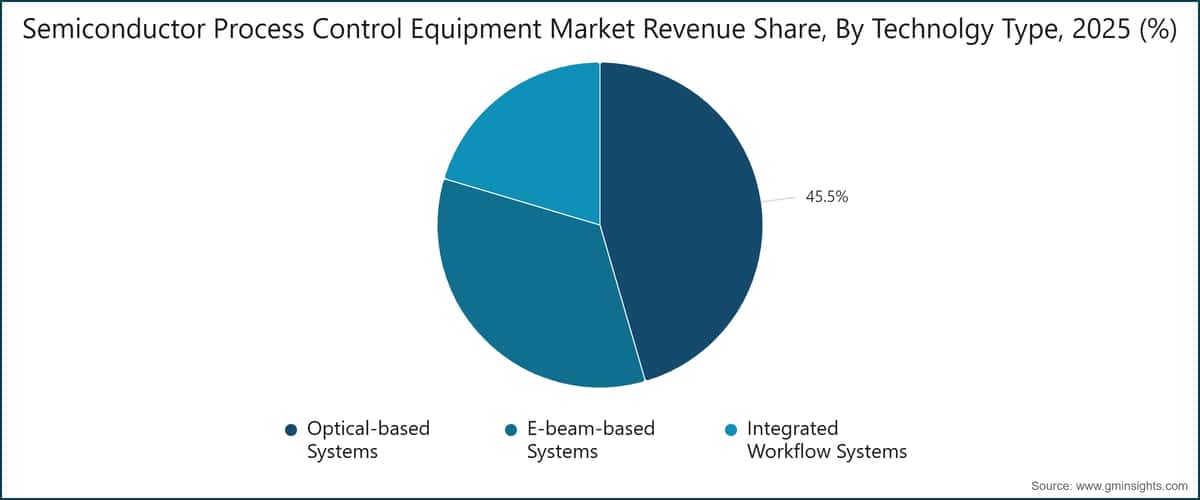

Optical-based systems command the largest technology segment at USD 5,733.89 million in 2025, leveraging decades of deployment across thousands of fabs globally and offering the throughput advantages necessary for 100% wafer sampling in high-volume manufacturing. Optical inspection and metrology platforms - including deep ultraviolet (DUV) brightfield and darkfield inspection, spectroscopic ellipsometry, reflectometry, and scatterometry - remain the workhorse technology for the majority of process steps where feature sizes remain at or above the optical resolution limit. ZEISS and Applied Materials are notable contributors in optical process control, with ZEISS generating EUR 5.055 billion in Semiconductor Manufacturing Technology revenue in fiscal year 2024/25, a 23% increase year-on-year.^{[6]ZEISS Group, ZEISS Concludes Fiscal Year 2024/25 with Solid Growth, 2025, zeiss.com} However, the technology's fundamental limitation - that classical optics cannot resolve features smaller than approximately half the illumination wavelength - is driving a gradual migration toward complementary and hybrid approaches at the leading edge.

E-beam-based systems are the fastest-growing technology segment at a 9.9% CAGR, driven by the need to inspect and measure features that optical systems increasingly cannot adequately characterize. Electron-beam tools include CD-SEM for dimension measurement, e-beam wafer inspection for high-sensitivity defect detection on patterned wafers, and e-beam review for defect classification. The principal trade-off - throughput versus sensitivity - has historically confined e-beam to sampling-based rather than 100% inspection regimes, but ongoing advances in multi-beam architectures and column parallelization are expanding the throughput envelope. Lasertec's ACTIS A300 series uses actinic (EUV-wavelength) illumination rather than electrons for EUV mask inspection, occupying a critical niche for which no alternative technology currently exists at commercial scale. KLA's FY2025 wafer inspection revenue of USD 6.199 billion, up 43% year-on-year, reflects the surge in demand for both optical and e-beam wafer inspection tools as fab ramps accelerated.

Integrated Workflow Systems, at USD 2,568.67 million in 2025 with a 3.4% CAGR, represent the lowest absolute growth rate in this dimension. This segment encompasses unified hardware-software platforms that combine inspection, metrology, and analytics under a single vendor architecture. The modest CAGR reflects two countervailing forces: while demand for workflow integration is high-driven by the data overload restraint identified above-buyers are still navigating the transition from multi-vendor architectures to integrated platform commitments, and the segment's revenue base includes legacy installed software systems whose upgrade cycles are longer than hardware refresh cycles. Over the forecast period, consolidation of standalone tools into integrated solutions will increasingly shift revenue from hardware to recurring software and services, potentially understating the economic significance of this segment relative to its standalone equipment revenue.

By Application

Process control equipment demand is distributed across the semiconductor manufacturing workflow, with distinct requirements at each stage. Pre-ME values are not available for application segments; the following reflects directional research-supported analysis.

Front-End-of-Line (FEOL) remains the largest application domain, encompassing transistor formation, gate stack deposition, ion implantation, and shallow trench isolation. FEOL process control requirements are the most technically demanding and most value-intensive per wafer, covering lithography overlay measurement, gate CD control, film thickness characterization, and patterned defect inspection at nodes where each photomask layer requires multiple measurement loops. The transition to EUV lithography has substantially expanded FEOL process control requirements: stochastic patterning defects require higher inspection sensitivity and statistical sampling, and the introduction of high-numerical-aperture EUV (High-NA EUV) will further intensify measurement demands. FEOL process control represents the largest revenue concentration within the application dimension, supported by the dominance of Inspection Systems and the leading role of Optical and E-beam tools in this environment.

Back-End-of-Line (BEOL) encompasses interconnect formation - metal deposition, chemical-mechanical planarization (CMP), and barrier/dielectric layers across dozens of metallization levels. As the number of metal layers increases in advanced logic and memory devices, BEOL metrology requirements expand proportionally. Film thickness, sheet resistance, and surface topography after CMP are standard measurement targets; emerging challenges include monitoring multilevel interconnect voids, detecting electromigration-sensitive grain boundary anomalies, and characterizing low-k dielectric integrity under thermal stress. Nova Ltd. and Applied Materials are leading participants in BEOL process control, offering metrology solutions specific to CMP endpoints, post-etch residue detection, and BEOL overlay.

Advanced Packaging is the fastest-growing application sub-segment, driven by the proliferation of heterogeneous integration architectures including CoWoS, SoIC, and Fan-Out Panel-Level Packaging. Metrology requirements for advanced packaging include RDL linewidth and thickness, micro-bump height uniformity, hybrid bonding pad alignment within tens of nanometers, TSV reveal height, and warpage measurement at the panel or reconstituted wafer level. These requirements necessitate front-end-class measurement capabilities-including sub-micron overlay measurement and single-digit nanometer film thickness control-in a back-end environment, driving capital expenditure that historically was concentrated upstream. Onto Innovation's AI packaging revenue grew 180% over 2023 in FY2024, and Camtek reports approximately 70% of its FY2024 revenue derived from HPC and other advanced packaging applications.

By Process Node

Leading-edge nodes (≤10nm) constituted USD 7,026.96 million in 2025 - the majority of the market by value - reflecting the higher measurement intensity and tool sophistication required at the 5nm, 3nm, and advancing 2nm nodes produced by TSMC, Samsung Foundry, and Intel Foundry Services. Process control spending intensity per wafer at ≤10nm nodes substantially exceeds that at mature nodes because the number of process steps requiring measurement is higher, defect size detection limits are tighter, and the economic penalty of yield loss on expensive advanced-node wafers is greater. SEMI data showing 13% leading-edge capacity growth in 2024 and 17% growth projected in 2025 directly supports equipment demand for this segment.

Mature nodes (>10nm) carry a higher CAGR at 9.2% through 2035, reflecting the large-scale capacity expansion underway at mature nodes for automotive, industrial, IoT, and defense applications in the U.S. Europe, Japan, India, and Southeast Asia. CHIPS Act-funded fabs in the U.S. will produce chips ranging from leading-edge to 28nm and 40nm nodes; GlobalFoundries' Dresden expansion targets specialty and automotive chips; and Japan's government-supported mature-node capacity at Rapidus and Toyota-aligned foundries will require process control equipment at volumes not previously seen in these geographies. China's ongoing domestic capacity expansion at mature nodes is a further significant contributor: SMIC, Hua Hong Semiconductor, and associated foundries are expanding 28nm–65nm production, driving inspection and metrology demand that cannot be readily served by domestic tools given that domestic metrology localization remains below 10%. The mature node CAGR exceeding that of leading-edge is therefore a volume story driven by geographic diversification of manufacturing capacity, not an intensity story.

By End-User

Pre-ME values are not available for end-user segments; the following is directional research-supported analysis.

Integrated Device Manufacturers (IDMs) were historically the dominant process control equipment buyers, as companies like Intel, Samsung Electronics, Micron, SK Hynix, and Texas Instruments operated comprehensive fab networks requiring full-spectrum inspection and metrology coverage. IDMs purchase process control tools across the broadest application range - from FEOL to BEOL to advanced packaging - and tend to maintain long-term preferred vendor relationships anchored in service agreements. Samsung's announced investment of more than USD 37 billion in Texas over multiple years and Micron's up-to-USD 150 billion investment over two decades in Idaho and New York will drive substantial process control equipment demand from IDMs through the forecast period.

Pure-Play Foundries are the fastest-growing end-user sub-segment by impact on process control equipment demand, given that TSMC, Samsung Foundry, GlobalFoundries, and SMIC collectively operate the largest advanced manufacturing capacity globally and manufacture across the widest range of customers, process nodes, and device types. TSMC's announced USD 165 billion U.S. investment alone would constitute a multi-year process control equipment procurement cycle of considerable scale. Pure-play foundries also demand the most sophisticated process control capabilities because they must guarantee process performance to multiple fabless customers across concurrent technology nodes. KLA's geographic revenue concentration-26.4% in Taiwan in FY2025-reflects the outsized purchasing power of TSMC and its foundry ecosystem.

OSATs (Outsourced Semiconductor Assembly and Test) have historically represented the smallest process control equipment end-user category because traditional assembly and test did not require the inline measurement capabilities of front-end manufacturing. Advanced packaging changes this equation: OSATs including ASE Group, JCET, and Amkor Technology are making substantial investments in CoWoS capacity and other high-density packaging platforms that require inspection and metrology tools previously outside OSAT purchasing scope. As advanced packaging migrates toward OSATs to supplement captive foundry packaging capacity, this end-user segment will represent a growing share of process control equipment demand through 2035.

The segment mix also limits the usefulness of a single leading-edge narrative. Mature nodes are projected to grow faster than leading-edge nodes because policy-backed capacity additions expand the number of fabs needing reliable inspection and metrology, even where the measurement intensity per wafer is lower. U.S. incentive awards and GlobalFoundries' Dresden expansion demonstrate how geographically dispersed specialty and automotive capacity can sustain this demand. For vendors, the implication is a two-track product strategy: leading-edge customers require sensitivity and measurement depth, while mature-node, OSAT, and packaging customers place greater value on throughput, application-specific configurations, and deployable control workflows.

Semiconductor Process Control Equipment Market Regional Analysis

North America

North America at USD 3,591.36 million in 2025 is the second-largest regional market with an 8.6% CAGR, positioned to grow disproportionately through the forecast period as CHIPS Act-catalyzed fab construction translates into equipment procurement. The U.S. accounted for approximately USD 2,927 million-around 81.5% of the North American total-in 2025, with Intel's existing fabs in Arizona, Oregon, New Mexico, and Ohio, Intel Foundry Services expansions, TSMC Arizona in volume production from late 2024, and Micron's Idaho DRAM complex all representing active process control tool purchasing sites. Canada (approximately USD 665 million) hosts photonics, compound semiconductor, and specialty device manufacturing, including GlobalFoundries' Fab 1 in Burlington, Vermont (which borders North American supply chain geography) and a growing ecosystem of government-supported cleantech and defense semiconductor activities. The CHIPS Act direct awards of up to USD 7.865 billion for Intel, USD 6.6 billion for TSMC, and USD 6.44 billion for Micron, contingent on investment milestones, create a procurement pipeline that will be most active in the 2025–2030 window as new fabs enter qualification and ramp phases.^{[7]U.S. Department of Commerce, Biden-Harris Administration CHIPS Incentives Awards - Intel, TSMC, Samsung, Micron, November–December 2024, commerce.gov} Process control equipment spending in North America grew materially as TSMC Arizona Fab 1 entered volume production at 4nm, requiring inspection and metrology tools positioned throughout a complete leading-edge manufacturing flow.

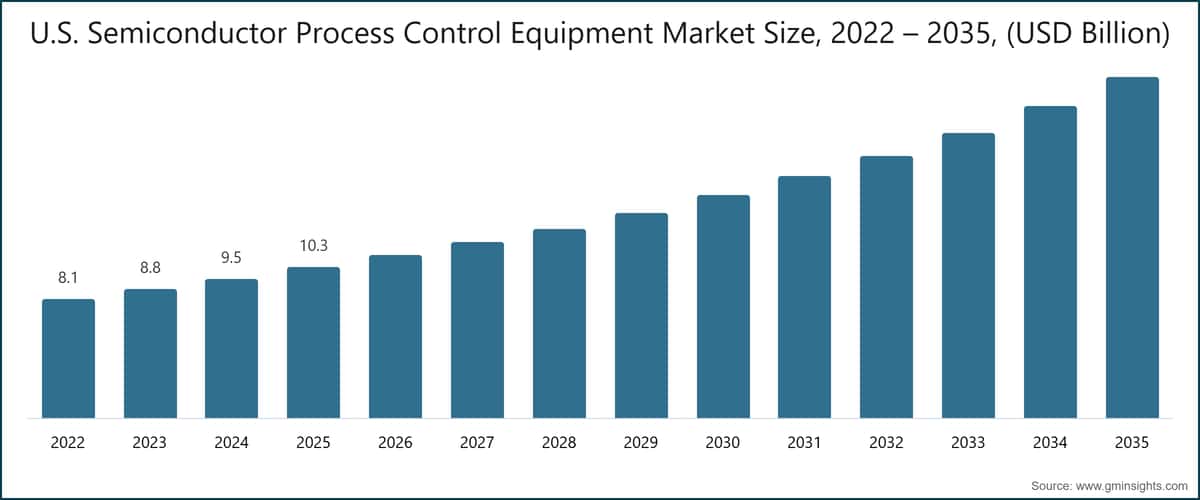

Key countries: The U.S. (approximately USD 2,927 million in 2025, ~8.6% CAGR) benefits from the highest industrial policy-driven manufacturing investment of any geography outside China and Taiwan, creating sustained process control equipment demand anchored in greenfield fab qualification cycles spanning 2025–2032. Canada (approximately USD 665 million, ~5.7% CAGR) represents a stable but more moderate growth trajectory, primarily driven by specialty and defense semiconductor activities rather than high-volume advanced node production.

Europe

Europe at approximately USD 2,292.71 million in 2025 with a 7.4% CAGR represents a mature but reorganizing market. SEMI data showed European equipment spending declined 41% in 2025 due to automotive and industrial semiconductor weakness - markets that dominate European chip demand - while the region's process control equipment market follows a more stable trajectory driven by fab capacity expansion rather than fluctuating end-market demand. Germany is the largest European market (approximately USD 664 million in 2025, ~7.6% CAGR), anchored by Infineon's Dresden and Villach fabs, Bosch Semiconductor, and ZEISS's Semiconductor Manufacturing Technology division, which serves as a globally critical supplier of lithography optics and photomask inspection tools with EUR 5.055 billion in segment revenue in FY2024/25. Intel's EUR 30 billion investment in a Magdeburg, Germany facility and EUR 12 billion expansion in Leixlip, Ireland represent substantial future process control procurement commitments, though the Magdeburg project has experienced timeline extensions. GlobalFoundries' EUR 1.1 billion Dresden expansion targeting over one million wafers per year by end-2028 is supported by the German federal government and the State of Saxony, adding mature-node process control demand.^{[8]GlobalFoundries, GlobalFoundries Plans Billion-Euro Investment to Expand Chip Manufacturing in Germany, October 2025, investors.gf.com} The UK (approximately USD 479 million, ~8.1% CAGR) is developing compound semiconductor and photonics capabilities, France (approximately USD 344 million, ~7.0% CAGR) hosts STMicroelectronics and Soitec, and Spain, Italy, and Russia collectively represent emerging to niche semiconductor manufacturing footprints.

Asia Pacific

Asia Pacific at USD 4,674.62 million in 2025 is the largest regional market with an 8.9% CAGR. This region contains the world's highest concentration of advanced semiconductor manufacturing: TSMC and UMC in Taiwan, Samsung Electronics and SK Hynix in South Korea, SMIC and YMTC in China, and Sony, Renesas, and Kioxia in Japan. SEMI reports that China, Taiwan, and Korea together accounted for 79% of global semiconductor equipment spending in 2025.

China (USD 1,870.21 million in 2025, 9.9% CAGR) is the largest single-country market in Asia Pacific for process control equipment, driven by substantial domestic fab expansion at 28nm–65nm nodes and ongoing DRAM and NAND capacity additions at CXMT and YMTC. China's total semiconductor equipment spending reached USD 49.3 billion in 2025, though this figure reflects all equipment categories and not process control exclusively. The domestic process control equipment localization rate remains below 10% as of 2025, meaning that foreign vendors - primarily KLA, Applied Materials, and Hitachi High-Tech - continue to supply the overwhelming majority of inspection and metrology tools to Chinese fabs, despite ongoing U.S. export control constraints that apply to the most advanced tool configurations. KLA's China revenue reached USD 4.043 billion in FY2025, representing 33.3% of the company's global revenue-a concentration that creates both commercial significance and geopolitical risk for the leading market participant.

Japan (USD 1,166.14 million in 2025, 7.3% CAGR) is experiencing a renaissance in semiconductor manufacturing investment driven by industrial policy, supply chain resilience concerns, and TSMC's establishment of JASM in Kumamoto in late 2024, with a second facility planned for 2027. Government support for Rapidus-targeting 2nm production in Hokkaido from the late 2020s-will eventually drive leading-edge process control demand in Japan. SCREEN Holdings, Advantest, and Tokyo Electron are native Japanese participants with strong regional customer relationships.

South Korea (USD 647.98 million in 2025, 8.2% CAGR) hosts Samsung Electronics' Pyeongtaek campus-the largest semiconductor manufacturing complex in the world by area-and SK Hynix's Icheon and Cheongju fabs, which together represent among the densest concentrations of advanced memory and logic process control equipment globally. Equipment spending in Korea grew 26% in 2025 driven by HBM DRAM investments for AI accelerators.

India (USD 387.85 million in 2025, 12.3% CAGR) leads all countries in this analysis by growth rate, reflecting early-stage semiconductor manufacturing investments supported by India's Semicon India program. Micron's OSAT facility in Gujarat, Tata Electronics' fab partnership with PSMC in Gujarat, and the CG Power-Renesas OSAT in Sanand represent initial demand drivers, primarily at mature nodes and back-end manufacturing, with process control requirements concentrated in inspection and metrology for assembly-line quality rather than leading-edge wafer fabrication.

Australia (USD 275.80 million in 2025, 6.9% CAGR) supports a small but growing defense semiconductor and compound semiconductor ecosystem, with demand concentrated in test and inspection equipment for specialty devices.

Latin America

Latin America at USD 1,092.49 million in 2025 carries a 5.7% CAGR-the lowest of the five regions-reflecting a market that is predominantly OSAT-oriented and mature-node focused. Mexico (USD 513.99 million in 2025, 6.1% CAGR) is the largest Latin American market, driven by the established electronics and automotive semiconductor supply chain concentrated in the northeast industrial corridor near Monterrey and across the northern border region. The nearshoring trend-North American manufacturers relocating some electronics assembly and testing operations from Asia-has expanded Mexico's role as an OSAT cluster, increasing demand for inspection and quality control equipment. Brazil (USD 408.88 million in 2025, 5.8% CAGR) hosts CEITEC-Brazil's sole wafer fabrication entity at 350nm technology-and a growing electronics assembly industry, though semiconductor manufacturing investment remains government-dependent and limited in scale. Argentina (remainder of the regional total) contributes minimal process control demand.

Middle East & Africa

Middle East & Africa at USD 948.82 million in 2025 with a 6.1% CAGR encompasses a diverse set of markets at different stages of semiconductor ecosystem development. Saudi Arabia (USD 274.06 million in 2025, 6.7% CAGR) is the most active market in terms of government-driven investment in semiconductor and electronics manufacturing as part of Vision 2030 diversification initiatives, including investments in NEOM's advanced manufacturing cluster and partnerships with international semiconductor companies. UAE (USD 221.95 million in 2025, 7.1% CAGR) hosts the region's most developed semiconductor packaging and electronics testing infrastructure and is positioning as a data center and AI hardware hub whose growth will eventually drive demand for inspection and test equipment. South Africa (USD 182.61 million in 2025, 5.3% CAGR) maintains a mature electronics assembly sector but limited wafer fabrication. Rest of MEA encompasses nascent activities in Israel - which, while often statistically grouped in the broader MEA or European category by equipment vendors, is home to Tower Semiconductor, Nova Ltd. and Camtek Ltd. - and Gulf states building electronics manufacturing in free zones.

North America's 8.6% CAGR reflects a different demand pattern: public incentives and private commitments are creating a staged procurement cycle in which process-control tools are required first for qualification and then for volume-ramp yield management. The CHIPS awards and TSMC's USD 165 billion U.S. investment establish a visible multiyear pipeline rather than an immediate, uniform uplift. Europe's slower growth similarly contains a durable specialty-fab component through the Dresden expansion, whereas India's higher growth begins from an early-stage base centered on assembly and mature-node manufacturing. Regional strategy must therefore distinguish between high-specification demand concentrated in established Asian fabs and deployment, service, and application-engineering opportunities created by new capacity elsewhere.

Semiconductor Process Control Equipment Market Share & Competitive Landscape

The semiconductor process control equipment market is highly concentrated, with KLA Corporation holding approximately 49.0% of the global market in 2025 - a level of market share dominance rare in complex capital equipment industries and attributable to KLA's multi-decade installed base, deep customer process integration, and a portfolio that spans both inspection and metrology across all critical process steps. The remaining market is distributed among Applied Materials (11.6%), Lasertec (8.5%), Onto Innovation (5.3%), and ASML's Metrology and Inspection business (4.4%), with approximately 21.2% held by regional and niche players.

KLA Corporation (kla.com) KLA is the defining participant in the process control equipment market. In fiscal year 2025 (ended June 30, 2025), KLA generated total revenue of USD 12.156 billion, of which the Semiconductor Process Control segment contributed USD 10.947 billion - a 25.4% year-on-year increase reflecting the acceleration of leading-edge fab investments globally.^{[9]KLA Corporation, Annual Report Fiscal Year 2025 (Form 10-K), 2025, ir.kla.com} Wafer Inspection was KLA's largest product line in FY2025 at USD 6.199 billion (51% of revenue), growing 43% year-on-year as chipmakers expanded inspection coverage at 3nm and HBM nodes. KLA's geographic concentration in China (33.3% of FY2025 revenue at USD 4.043 billion) reflects its dominant installed base in the world's most capacity-expansive market but also represents its principal export-control sensitivity. The company's competitive moat rests on its ability to integrate inspection data, metrology data, and analytics across multiple tool types within a fab, creating switching costs that exceed the value of individual platforms. KLA's growing services and software business - USD 2.683 billion in FY2025 - further anchors customer relationships beyond the hardware sale.

Lasertec Corporation (lasertec.co.jp) Lasertec occupies a singular competitive position as the sole commercial supplier of actinic EUV patterned mask inspection systems globally. In fiscal year 2025 (ended June 30, 2025), Lasertec recorded revenue of JPY 251.5 billion (approximately USD 1.65 billion at prevailing exchange rates), growing 17.8% year-on-year, with semiconductor-related products - comprising primarily mask inspection and blank inspection systems - accounting for JPY 202.9 billion of revenue.

Onto Innovation (ontoinnovation.com) Onto Innovation is a U.S.-headquartered process control specialist with a portfolio spanning unpatterned wafer quality inspection, 3D dimensional metrology, macro defect inspection, metal interconnect composition measurement, factory analytics software, and advanced packaging lithography. Full-year 2024 revenue reached USD 987 million, a 21% increase from USD 816 million in 2023, driven by Dragonfly inspection tool revenue and Iris film metrology revenue both more than doubling year-on-year.

Rudolph Technologies / Multi-21 Solutions Limited (multi-21-solutions.com) Multi-21 Solutions Limited, operating under the North American regional umbrella within the CP scope of this report, provides advanced process control solutions for semiconductor and compound semiconductor manufacturers with a focus on integrated circuits, MEMS, and power devices. The company participates in inspection and metrology niches not fully addressed by larger-scale vendors, including specialty substrates and process nodes where customization and flexibility are prioritized over throughput scale.

Nova Ltd. (novami.com) Nova Ltd. is a global provider of dimensional, materials, and chemical metrology solutions with particular strength in advanced process control for leading-edge logic, advanced memory, and advanced packaging applications. Nova recorded record annual revenue of USD 672.4 million in 2024, a 30% increase from USD 517.9 million in 2023, driven by advanced packaging metrology more than doubling within the year. Nova's product portfolio - combining hardware measurement platforms with proprietary software and algorithms - covers x-ray metrology for materials characterization, optical critical dimension metrology, and chemical metrology for process chemistry monitoring. Nova's strong positions in materials metrology and advanced packaging have allowed it to outperform WFE market growth, and its guidance implies continued outperformance in 2025 as GAA and HBM adoption broadens.

Recent Industry Developments

TSMC US Investment Expansion to USD 165 Billion (March 2025) TSMC announced its intention to expand its U.S. investment to a total of USD 165 billion, adding three new fabrication plants, two advanced packaging facilities, and an R&D center to its existing USD 65 billion Arizona commitment. Fab 2, operating at the 3nm node, is scheduled to enter production in 2027–2028, representing a leading-edge process control equipment qualification cycle within the forecast period. The CoWoS packaging facilities will drive dedicated advanced packaging inspection and metrology procurement. This investment, categorized as the largest single foreign direct investment in U.S. history, creates the single most consequential demand pipeline for North American process control equipment over the 2025–2035 horizon.

CHIPS and Science Act Award Completions (2024–2025) The U.S. Department of Commerce finalized direct funding awards to Intel (up to USD 7.865 billion), TSMC (up to USD 6.6 billion), Samsung (up to USD 4.745 billion), and Micron (up to USD 6.44 billion) under the CHIPS Incentives Program. These awards unlock multi-billion dollar fab construction programs whose process control equipment procurement phases are now actively in planning. Intel's award supports approximately USD 90 billion in planned U.S. investment across Arizona, Ohio, New Mexico, and Oregon sites. Micron's award supports a two-decade USD 150 billion program in Idaho and New York targeting 10% U.S. share of advanced memory manufacturing by 2035 - a sustained demand backdrop for memory-oriented process control equipment.

KLA FY2025 Revenue Reaches USD 12.2 Billion with Wafer Inspection Up 43% KLA Corporation's fiscal year 2025 results showed Semiconductor Process Control segment revenue of USD 10.947 billion and total revenue of USD 12.156 billion, with Wafer Inspection the fastest-growing major product line at 43% year-on-year growth. This performance reflects the acceleration of leading-edge node transitions and HBM production ramps globally, which drove chipmakers to significantly expand inspection tool counts. KLA's services business - USD 2.683 billion - continued growing, underscoring the increasing importance of software, service contracts, and remote monitoring capabilities as a recurring revenue source that complements hardware sales cycles.

Nova Ltd. Reports Record Revenue with Advanced Packaging Doubling Nova Ltd. recorded FY2024 revenue of USD 672.4 million, growing 30% year-on-year, with advanced packaging processes representing the fastest-growing sub-segment-more than doubling within the year. Nova's position in materials metrology, including X-ray-based film composition measurement critical for barrier and seed layer control in 3D interconnect structures, positions it directly in the CoWoS and hybrid bonding capacity expansion wave. Management commentary cited investments in AI, power semiconductors, and GAA transistor technology as the primary demand drivers for 2025 and beyond, with Nova expecting to outperform WFE market growth.

Onto Innovation AI Packaging Revenue Grows 180%, Total Revenue Reaches USD 987 Million Onto Innovation reported FY2024 revenue of USD 987 million, up 21% from FY2023, with AI packaging revenue growing 180% and both Dragonfly inspection and Iris film metrology revenue more than doubling. Q4 2024 revenue of USD 264 million was a record, with advanced nodes and advanced packaging as the primary demand drivers. The company guided Q1 2025 revenue of USD 260–274 million, indicating no cyclical deceleration at the start of 2025. Onto's strategy of combining process control hardware with factory analytics software reflects the industry's broader migration toward data-integrated yield management platforms.

Camtek Records 36% Revenue Growth to USD 429 Million on HPC Demand Camtek recorded FY2024 revenue of USD 429.2 million, up 36% from USD 315.4 million in 2023, driven by record HPC and advanced packaging inspection revenues. The company's Q4 2024 revenue of USD 117 million grew 32% year-on-year, with approximately 70% of full-year revenue from HPC and advanced packaging applications. Camtek received orders exceeding USD 10 million for HPC-related products in early 2025, signaling sustained momentum driven by AI accelerator package inspection demand.
