Wide Bandgap Semiconductors Market Size

The global wide bandgap (WBG) semiconductor market-encompassing silicon carbide (SiC) and gallium nitride (GaN) devices across substrates, discrete components, and power modules-was valued at USD 2.4 billion in 2025 and is projected to reach USD 2.7 billion in 2026 and USD 6.8 billion by 2035, expanding at a compound annual growth rate (CAGR) of approximately 10.8% over the 2026–2035 forecast period.

This trajectory reflects the structural displacement of silicon-based insulated-gate bipolar transistors (IGBTs) and MOSFETs by WBG devices in applications where thermal performance ceilings, switching-loss penalties, and voltage-blocking limitations constrain system efficiency and power density.

WBG materials deliver decisive physical advantages rooted in their electronic band structures. SiC's critical electric field (approximately 2.5 MV/cm) is roughly ten times that of silicon, allowing 650V-to-3,300V-rated devices to be fabricated with dramatically thinner drift layers and significantly lower on-state resistance at elevated junction temperatures-enabling compact traction inverters, solar converters, and industrial drives that silicon-based designs cannot match within equivalent thermal and volume envelopes. GaN's high two-dimensional electron gas mobility (approximately 2,000 cm[]/V·s in HEMT structures) allows switching frequencies in the multi-megahertz range, which unlock power-supply unit density levels and efficiency metrics unattainable with silicon at comparable cost points. The U.S. Department of Energy has identified WBG power electronics as capable of generating approximately 1.5 quadrillion BTU in annual energy savings from modest reductions in conversion losses across U.S. commercial and industrial power systems, with approximately 30% of all electrical energy already flowing through power electronics stages^{[1]National Renewable Energy Laboratory / U.S. Department of Energy, Wide-Bandgap Electronics Analysis. osti.gov}.

Market momentum is organized around two partially distinct but structurally reinforcing demand poles. SiC addresses medium- to high-voltage applications-most critically the automotive traction inverter, on-board charger (OBC), and DC-DC converter segments where 800V EV architectures are becoming mainstream-while also serving industrial motor drives, utility solar inverters, and grid energy storage. GaN serves a complementary but increasingly overlapping function: it dominates RF power amplifiers for wireless infrastructure, and is advancing rapidly in low-to-mid-voltage power conversion contexts such as AI data center power supply units (PSUs), consumer fast chargers, and telecom rectifiers. The market's overall health is therefore a composite of automotive electrification velocity, data center capital expenditure cycles, 5G rollout pace, and renewable energy build-out rates across geographies.

Supply-side dynamics are in active transition. The SiC wafer supply chain-historically constrained by substrate crystal growth complexity, slow production throughput, and single-source risk-is diversifying as manufacturers invest in 200mm (8-inch) capacity across North America, Europe, and Asia. GaN is simultaneously transitioning from niche RF and low-power applications toward the mid-power mainstream, supported by silicon-fab-compatible epitaxy platforms that leverage existing capital equipment. Policy reinforcement through the U.S. CHIPS and Science Act, the European Chips Act, and analogous Japanese and South Korean industrial programs is establishing structural floors for domestic supply-chain investment, reshaping competitive geography within the forecast period.

Key Drivers

Rapid EV Adoption Increasing SiC Power Device Demand

Electric vehicle sales exceeded 17 million units globally in 2024, representing more than 20% of total new car sales for the first time, with China alone accounting for over 11 million units ^{[2]International Energy Agency (IEA), Trends in Electric Car Markets - Global EV Outlook 2025. iea.org} . Global EV sales are projected to surpass 20 million units in 2025-more than one in four cars sold worldwide-with first-quarter 2025 sales already up 35% year-on-year across all major markets. This volume trajectory creates compounding SiC demand because each traction inverter in a battery-electric vehicle requires multiple 1,200V-class SiC MOSFETs, and the architectural shift from 400V to 800V battery systems-already underway across premium and increasingly mass-market platforms-mandates these high-voltage devices where SiC holds an insurmountable performance advantage over silicon at equivalent power density. Wolfspeed's fiscal 2024 design-in pipeline of USD 9.1 billion ^{[3]Wolfspeed, Inc., Annual Report on Form 10-K for Fiscal Year Ended June 30, 2024. sec.gov}, the majority linked to 800V automotive applications, illustrates the long-duration procurement commitments being made by automotive OEMs around SiC as their device technology of choice. STMicroelectronics reported USD 1.1 billion in SiC revenue in full-year 2024, highlighted a long-term SiC supply agreement signed with Geely Auto, and described China as the market where it holds broader SiC engagement agreements with leading EV manufacturers than any other supplier globally. The automotive demand signal extends to OBCs and DC-DC converters, where SiC's lower conduction losses enable reduced thermal management system weight and volume in space-constrained platforms.

Fast-Charging Infrastructure Expansion Requiring High-Efficiency Semiconductors

DC fast-charging (DCFC) infrastructure deployment is synergistic with EV penetration as a WBG demand driver, but analytically distinct. A 350kW DCFC station operating at high efficiency requires SiC-based converters capable of handling high switching frequencies at bus voltages of 800V or higher with minimal thermal derating-specifications that silicon IGBTs cannot reliably meet without significant passive component overhead. North American and European infrastructure mandates are structuring new DCFC networks around 800V compatibility from the outset, creating a durable pull-through for high-voltage SiC power modules across the charging supply chain. This demand extends beyond passenger-vehicle charging into commercial vehicle fleet electrification, where depot charging systems require multi-MW power handling with stringent uptime and thermal performance requirements. On-board charger silicon-carbide MOSFET content per vehicle scales further with power level, with 22kW OBCs requiring substantially greater device content than 11kW predecessors.

Data Center Energy Efficiency Mandates Boosting GaN Adoption

AI workload growth is driving a rapid escalation in per-rack power density, with data center rack specifications moving from 30–40kW toward 100kW and beyond. GaN's superior switching figure of merit at frequencies above 1 MHz enables a 12kW power supply unit to occupy the same physical volume as a prior-generation 3.3kW silicon design-a roughly four-fold increase in power density that Infineon has highlighted as a defining advantage of its CoolGaN product family for AI data center applications ^[7]. This density benefit is critical for hyperscale operators constrained by physical floor space, electrical distribution infrastructure, and cooling capacity. Regulatory pressure-including EU data center energy efficiency directives and U.S. federal sustainability requirements for government data facilities-reinforces the commercial case for WBG-based PSU architectures. The NVIDIA 800VDC data center rack architecture has further catalyzed GaN device adoption at voltages up to 1,250V, where purpose-built GaN switches can achieve efficiencies exceeding 98% in high-power-density configurations, outperforming stacked 650V GaN or 1,200V SiC alternatives in power-supply-critical metrics.

5G Infrastructure Rollout Accelerating RF GaN Deployment

GaN high-electron-mobility transistors (HEMTs) have become the dominant device technology for 5G radio access network power amplifiers, owing to their high power density (4–10 W/mm of gate width), high breakdown voltage enabling 28–50V drain bias operation, and efficiency across the 600 MHz+ bandwidths demanded by massive MIMO base transceiver stations ^[6]. Peer-reviewed system-level measurements confirm power-added efficiencies exceeding 44% across 600 MHz bandwidth at 3.4–4.0 GHz in 5G NR applications, achievable in compact 10×6mm[] module form factors. The transition from LDMOS to GaN in 4G base stations is largely complete in markets with active 5G buildout, and the 5G expansion into mid-band (FR1, sub-6 GHz) and millimeter-wave (FR2) frequency bands continues to drive volume growth in GaN RF power devices. Beyond 5G NR, the architecture of future 6G networks is being planned around GaN-on-SiC and GaN-on-Si platforms, sustaining long-duration demand across the forecast horizon. Satellite communications-encompassing LEO constellation gateway stations and onboard transponder power amplifiers-represents an additional high-value GaN application, where the material's radiation tolerance and power density offer advantages over established GaAs alternatives.

Renewable Energy Integration Driving High-Voltage Power Electronics

Grid-connected solar photovoltaic and wind power systems require power electronic conversion at voltages from 650V to 3,300V-a range where WBG devices offer quantifiable efficiency advantages over silicon IGBTs under real operational conditions. SiC-based PV inverters have demonstrated efficiency improvements of approximately 2.66% over equivalent silicon designs under actual irradiation profiles, with the advantage most pronounced at partial-load conditions that dominate real solar generation profiles. At 1,500V DC bus architectures-now the standard configuration for utility-scale solar installations-SiC power modules offer substantially lower switching losses and superior temperature stability compared to silicon IGBT modules, enabling longer operational cycles and reduced active cooling requirements. Grid energy storage systems, offshore wind converters, and HVDC transmission links represent additional high-voltage applications where SiC's combination of high voltage rating, low on-resistance, and thermal stability generates system-level lifecycle cost advantages that drive WBG specification into multi-year procurement cycles. The accelerating global deployment of renewable generation capacity provides a sustained and geographically broad demand driver for high-voltage SiC power modules through the 2035 forecast horizon.

Key Restraints

High SiC Wafer and Substrate Production Costs

SiC substrate manufacturing involves seeded sublimation crystal growth ^{[4]Electrochemical Society (ECS), Barriers to SiC Power Semiconductor Device Commercialization (Invited), ECS Meeting Abstracts MA2024-02. doi.org} at temperatures of 2,300–2,500°C, a process constrained by slow growth rates of 0.5–2 mm per hour, crystal expansion limitations requiring large high-quality seed crystals, and the material's extreme hardness (comparable to diamond), which slows sawing and polishing and results in approximately 40–60 wafers per boule under favorable production conditions. The substrate alone accounts for 50–65% of total SiC device cost-a cost structure without parallel in silicon, where the substrate represents a negligible fraction of overall device value. This substrate-cost dominance creates a persistent floor on SiC device pricing that constrains adoption in price-sensitive industrial, emerging-market EV, and consumer applications where silicon IGBTs remain viable. The 6-inch to 8-inch wafer transition is the primary structural cost-reduction pathway: industry data indicate that upgrading from 4-inch to 6-inch wafers reduces unit die costs by approximately 50%, and the subsequent move from 6-inch to 8-inch delivers a further reduction of approximately 35% through improved area utilization. However, until 8-inch supply chains achieve high-volume production maturity-projected from approximately 2026 to 2027 across leading manufacturers-substrate-cost pressure will continue to restrict WBG penetration in mid-tier applications.

Complex Manufacturing Yields Impacting Scalability

WBG device manufacturing confronts yield challenges without direct equivalents in silicon processing. For SiC, defect densities in substrate crystals-including basal plane dislocations, stacking faults, and micropipes-propagate through epitaxial layers into active device regions, limiting die yield and restricting chip area for high-current power modules. For GaN power devices, dynamic on-resistance degradation (current collapse) and threshold voltage instability under high-frequency switching remain active reliability qualification hurdles, particularly for automotive-grade applications requiring 10–15 year operational lifetimes under repeated thermal cycling. GaN devices for automotive-grade qualification are at earlier commercialization stages than SiC MOSFETs, creating a timeline gap in the total addressable market. At the equipment level, SiC's chemical resistance and hardness require modified chemical-mechanical planarization processes, elevated-temperature ion implantation, and specialized thermal oxidation conditions; adapting silicon fab toolkits to SiC introduces qualification costs and cycle times that extend capacity ramp schedules. ROHM, in its ongoing transition from 6-inch to 8-inch SiC wafer production, projects cost improvements of approximately 20–30% from the wafer-size scaling alone, but noted that per-unit costs remain elevated until new production lines achieve full utilization ^[5]. Both restraints are on documented improvement trajectories, but the pace of resolution relative to the cost-tolerance of emerging application segments will materially determine the market's realized CAGR through the mid-forecast period.

Wide Bandgap Semiconductors Market Segment Analysis

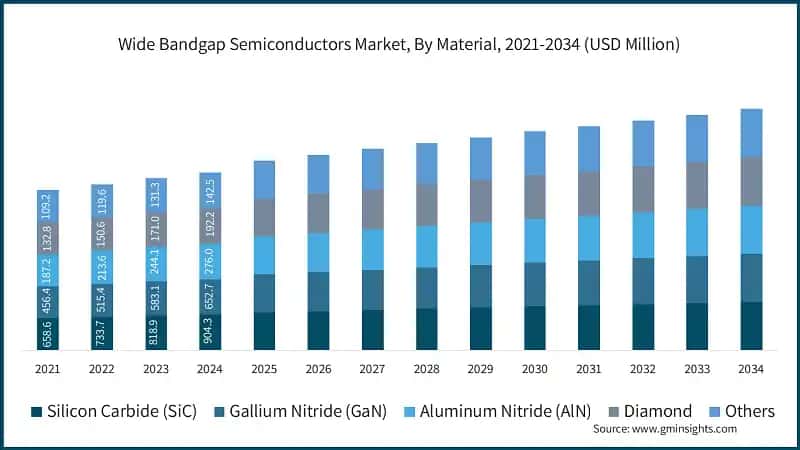

By Material Type

SiC generated an estimated USD 1,566.2 million in 2025, projected to USD 1,734.5 million in 2026 and USD 4,050.2 million by 2035 at a CAGR of approximately 9.88%. SiC's dominance in the current market reflects its established position in the highest-value demand driver: automotive traction inverters and OBCs, where 1,200V and 1,700V SiC MOSFETs have accumulated extensive Tier 1 and OEM qualification histories. Industrial applications-motor drives, uninterruptible power supplies, and photovoltaic inverters-constitute a second major demand layer. The SiC supply ecosystem is structured around vertically integrated producers (Wolfspeed, Coherent, STMicroelectronics) that control substrate-to-device manufacturing, alongside fabless and semi-integrated manufacturers that source substrates externally, creating procurement concentration risk. Within SiC, three product sub-dimensions are relevant: SiC substrates and epitaxial wafers supply the upstream manufacturing process; SiC discrete devices (primarily MOSFETs, Schottky diodes, and JFETs) represent the high-volume commercial product tier; and SiC power modules package multiple discrete die-in pure SiC or hybrid (SiC-plus-silicon) configurations-for high-power industrial and automotive applications where board-level discrete assembly is impractical.

GaN reached USD 849.9 million in 2025, projected to USD 964.0 million in 2026 and USD 2,751.1 million by 2035 at a CAGR of approximately 12.36%-the fastest growth rate in the material-type segmentation. GaN's high-frequency capability, with switching frequencies of 1–10 MHz versus SiC's typical 50–500 kHz range, is decisive in power density-constrained applications. GaN-on-SiC remains the substrate of choice for RF power amplifiers operating above 3.5 GHz, providing thermal conductivity critical for base station continuous-output applications. GaN-on-Si is the cost-reduction platform for power conversion applications, enabling standard silicon fab infrastructure reuse. Infineon reported becoming the first manufacturer globally to develop GaN wafer technology for power semiconductors on 300mm wafers, compatible with existing silicon manufacturing equipment-a development the company indicated could reduce GaN manufacturing costs to near-parity with comparable silicon products by allowing 2.3 times more chips per wafer than 200mm processes. GaN epitaxial wafers and discrete HEMTs are the current commercial volume products; GaN power modules are gaining traction in multi-kilowatt data center PSU and industrial applications.

By Product Type

Discrete devices held USD 886.8 million in 2025, projected to USD 1,008.5 million in 2026 and USD 2,989.9 million by 2035 at the fastest product-type CAGR of approximately 12.83%. Discrete SiC MOSFETs and GaN HEMTs serve as the building blocks for both standard and custom power conversion designs across automotive, industrial, and data center applications. The high growth rate reflects the acceleration of device-level procurement as EV platforms standardize on SiC MOSFET specifications and hyperscale data center designers integrate GaN HEMTs at scale. Wolfspeed's fiscal 2024 design-in values of USD 9.1 billion-up from USD 7.9 billion in fiscal 2023-across automotive and industrial discrete-device engagements illustrate the multi-year pipeline converting into forward revenue commitments.

Power modules generated USD 1,044.5 million in 2025, the largest product-type segment, projected to USD 1,155.0 million in 2026 and USD 2,599.3 million by 2035 at approximately 9.43% CAGR. Power modules-encapsulating multiple SiC or GaN dice with integrated gate drivers and thermal interfaces-address high-power industrial drive, traction, and renewable energy applications where discrete device assembly is impractical at required current ratings. Pure WBG modules package exclusively SiC or GaN devices; hybrid modules combine WBG dice with silicon for cost optimization in converter topologies that have mixed switching-frequency requirements. The slower relative growth rate reflects the trend of automotive OEMs building in-house SiC discrete-device design competence, reducing module-level procurement in favor of chip-level configurations in high-volume platforms.

Substrates and epitaxial wafers reached USD 484.8 million in 2025, projected to USD 535.0 million in 2026 and USD 1,212.1 million by 2035 at approximately 9.51% CAGR. The substrate segment supplies raw and processed wafer inputs consumed internally by vertically integrated device manufacturers and externally by fabless or semi-integrated producers. SiC substrates (bulk n-type and semi-insulating) and SiC epitaxial wafers constitute the primary value-generating products; GaN epitaxial wafers grown on SiC or silicon substrates are the GaN-side equivalent. Wafer diameter remains the principal cost-reduction lever: the current 6-inch (150mm) market is actively transitioning toward 8-inch (200mm), with industry expectations that 8-inch products will begin displacing 6-inch as the volume production standard from approximately 2026–2027 onward.

By Voltage Range

The high-voltage segment (>1,200V) commanded USD 1,801.0 million in 2025-approximately 74.5% of total market revenue-projected to USD 2,005.2 million in 2026 and USD 4,903.6 million by 2035 at approximately 10.45% CAGR. This concentration reflects the dominance of traction inverter and industrial drive applications, where 1,200V- and 1,700V-rated SiC MOSFETs are the standard specification. As 800V EV architectures proliferate and utility-scale solar standardizes on 1,500V DC bus configurations, high-voltage SiC devices will continue to constitute the plurality of WBG market revenue throughout the forecast period.

The mid-voltage segment (650V–1,200V) reached USD 271.4 million in 2025, projected to USD 304.5 million in 2026 and USD 800.5 million by 2035 at approximately 11.34% CAGR. This tier captures GaN power devices for high-efficiency data center PSUs operating at 600–900V bus voltage, fast chargers, telecom rectifiers, and industrial motor drives in the 30–200kW power class. Growth is driven by GaN's expansion into applications previously served by 600V and 900V silicon MOSFETs and IGBTs.

The low-voltage segment (<650V) is the fastest-growing voltage tier at approximately 12.22% CAGR, rising from USD 343.8 million in 2025 to USD 388.8 million in 2026 and USD 1,097.2 million by 2035. GaN-on-Si devices dominate this range in consumer and prosumer fast chargers, server rack 48V intermediate bus converters, and low-power motor control. The growth acceleration reflects GaN's expanding penetration into consumer electronics and the proliferation of USB Power Delivery charging adapters in the 65–240W range where GaN's smaller form factor provides a decisive user-experience advantage over silicon alternatives.

By Wafer Size

The 6-inch (150mm) wafer size currently dominates production volumes for SiC device manufacturing, representing the established infrastructure around which the global SiC supply chain is organized. Essentially all major SiC device manufacturers-Wolfspeed, STMicroelectronics, Infineon, ROHM-have certified 6-inch production lines and are shipping qualification and volume production from these platforms. However, the 8-inch transition is now underway across the industry: ROHM projects 20–30% cost improvements from the wafer-size change alone as its Chikugo and Miyazaki plants transition ; Wolfspeed's Mohawk Valley facility is the world's first fully automated 200mm SiC device fab ; and industry data indicate that moving from 6-inch to 8-inch reduces unit die costs by approximately 35% through improved wafer area utilization. Multiple manufacturers-including Onsemi, Fuji Electric, and Resonac-are targeting 8-inch production-ready capacity in 2025–2027, with 6-inch product lines expected to progressively phase out from the late 2020s.

The 4-inch (100mm) wafer size retains a niche and legacy position in aerospace, defense, and specialized high-reliability applications where per-lot qualification overhead and radiation-hardening certification requirements make the transition to larger wafers economically unattractive relative to the volume produced. Radiation-hardened SiC devices for military electronics, space power systems, and airborne radar operate on 4-inch production platforms supported by rigorous lot traceability and mil-spec qualification documentation.

The 8-inch (200mm) wafer size is the strategic growth tier within the forecast period. Its gradual emergence as the production standard will systematically lower SiC device costs, expand the addressable market into cost-sensitive application tiers, and shift competitive advantage toward manufacturers with the earliest mass-production qualification. North America, Japan, and China are the primary theatres of 8-inch capacity investment, with geopolitical considerations-particularly U.S. supply-chain security mandates-accelerating domestic 200mm capacity development.

By Application

Within power electronics, electric vehicle powertrain-traction inverters, OBCs, and DC-DC converters-is the largest application and the primary growth engine for SiC demand. The IEA reported more than 17 million EV sales globally in 2024 and projects over 20 million in 2025, with China projected to reach approximately 60% EV penetration in new car sales in 2025. Charging infrastructure represents a closely adjacent demand pool, particularly as high-power DCFC networks at 150–350kW are deployed at scale across North America, Europe, and China. Renewable energy systems-solar inverters, wind converters, and battery energy storage interface converters-constitute the third major pillar, with SiC efficiency advantages of approximately 2.66% over silicon under real operational profiles providing compelling lifecycle cost arguments in utility-scale procurement decisions. Industrial power and motor drives represent a large installed-base replacement opportunity on longer capex cycles than automotive. IT and data center infrastructure is the fastest-growing power electronics application for GaN within the forecast period, driven by AI-induced power density escalation requiring multi-kilowatt high-frequency PSUs and intermediate bus converters. Consumer power adapters-USB-PD GaN fast chargers in the 65–240W range-round out the power electronics portfolio.

Within RF and microwave applications, 5G infrastructure dominates the GaN revenue pool through GaN-on-SiC and GaN-on-Si HEMTs in base station power amplifiers and massive MIMO active antenna units. Satellite communications-both ground station high-power amplifiers and satellite transponder power stages-represent high-value GaN applications where radiation tolerance and power density are critical selection criteria. Radar systems, particularly active electronically scanned array (AESA) radar for military aircraft and ground-based air defense, rely on radiation-hardened GaN MMIC solutions in which performance margins command significant price premiums.

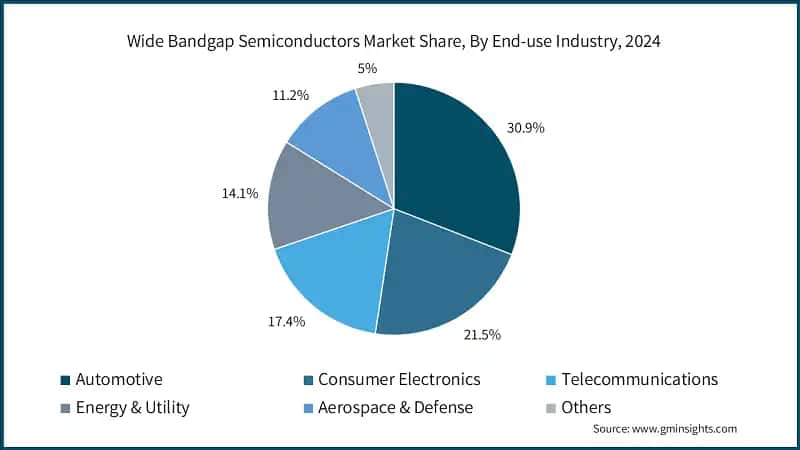

By End-User Industry

Automotive holds the largest end-user share, driven by SiC adoption in traction inverters and OBCs as described. Energy and utilities constitutes the second major tier, encompassing utility-scale solar, wind generation, and grid energy storage systems. Industrial and manufacturing follows, spanning motor drives, welding equipment, induction heating, and uninterruptible power systems. Telecommunications is the primary consumer of GaN RF devices through base station equipment procurement cycles and network densification programs. Aerospace and defense is a high-value niche in which radiation-hardened SiC and GaN devices command premium pricing, with U.S. CHIPS Act defense-specific funding providing structural support for domestic WBG supply capability in this segment. IT and data center infrastructure is the fastest-growing end-user industry within the forecast period, reflecting AI server power demand scaling. Consumer electronics represents the smallest but fastest-penetrating end-user category for GaN, driven by the rapid replacement cycle in USB-PD-compatible fast chargers.

Wide Bandgap Semiconductors Market Regional Analysis

North America

North America is valued at USD 937.6 million in 2025 and is projected to reach USD 1,043.9 million in 2026 and USD 2,556.2 million by 2035 at approximately 10.46% CAGR. The region benefits from the intersection of automotive electrification mandates, aggressive hyperscale data center build-out, 5G infrastructure deployment, and-critically-a restructured domestic semiconductor supply chain catalyzed by CHIPS and Science Act manufacturing incentives.

The United States market at USD 315.7 million in 2025 (CAGR ~9.62%) is being reshaped by two landmark CHIPS Act announcements in late 2024. The proposed USD 750 million in direct CHIPS funding for Wolfspeed would support construction of a 2-million-square-foot SiC wafer facility in Siler City, North Carolina-intended to become the world's first high-volume 200mm SiC wafer manufacturing facility-alongside a 30% expansion in device capacity at Wolfspeed's Mohawk Valley fab in New York, targeting a five-fold increase in SiC device output and a ten-fold increase in 200mm materials production capacity, with estimated creation of over 2,000 manufacturing jobs. Bosch received preliminary terms for up to USD 225 million in direct funding plus approximately USD 350 million in CHIPS loans to support a USD 1.9 billion investment to convert its Roseville, California facility into 200mm SiC device manufacturing, with the project expected to represent more than 40% of total U.S.-based SiC device manufacturing capacity at full output and targeting first production in 2026. These coordinated investments signal a structural repositioning of the United States from a net importer of SiC substrates and devices to a competitive domestic manufacturer within the forecast period.

Canada at USD 621.9 million in 2025 (CAGR ~10.87%) represents the larger North American market by 2025 value, driven primarily by EV charging infrastructure along major population corridors, utility-scale renewable energy projects in Ontario, Quebec, and British Columbia, and defense electronics procurement aligned with NATO capability commitments. Canada's renewable energy build-out-particularly hydroelectric integration projects and offshore wind development-creates sustained demand for high-voltage SiC power electronics in grid conversion and energy management applications.

Europe

Europe's WBG market at USD 422.3 million in 2025, projected to USD 467.4 million in 2026 and USD 1,086.4 million by 2035 at approximately 9.82% CAGR, is shaped by the combination of automotive OEM electrification imperatives under EU fleet CO₂ standards, EU Green Deal renewable energy mandates, and a regional supply chain encompassing SiC substrate manufacturing, device fabrication, and power module assembly.

Germany is the largest European WBG market at USD 126.8 million in 2025 (CAGR ~9.57%), reflecting its concentration of automotive OEMs and Tier 1 suppliers with active SiC design programs and the presence of Infineon's Dresden manufacturing hub. Infineon's planned EUR 2.5 billion in investments for fiscal 2025-including completion of its fourth manufacturing module in Dresden and acquisition of SiC and GaN production machinery at its Kulim (Malaysia) and Villach (Austria) sites-underscores Germany's role as a global SiC manufacturing anchor.

The United Kingdom at USD 117.8 million in 2025 (CAGR ~8.43%) is driven by defense electronics, automotive Tier 1 supply chains, and renewable energy. France at USD 69.9 million in 2025 shows the highest European growth CAGR at approximately 12.03%, reflective of its nuclear and renewable power sector modernization program and emerging EV production investment. Italy at USD 21.3 million in 2025 (CAGR ~12.69%) and Spain at USD 16.6 million in 2025 (CAGR ~11.49%) are growing above the European average, driven by solar energy deployment-both countries are among Europe's leading solar installation markets-and expanding EV component manufacturing.

Asia Pacific

Asia Pacific at USD 887.6 million in 2025, projected to USD 1,002.4 million in 2026 and USD 2,789.3 million by 2035 at approximately 12.04% CAGR, is the fastest-growing WBG region. It hosts both the world's largest EV market (China) and multiple governments with aggressive semiconductor industrial policies (Japan, South Korea, India).

China at USD 323.0 million in 2025 (CAGR ~10.56%) is the defining force in Asia Pacific WBG demand. Chinese EV sales exceeded 11 million units in 2024 and EV penetration in China is projected to approach 60% of new car sales in 2025. STMicroelectronics described China as the fastest-growing EV market and reported holding broader SiC engagement agreements with leading Chinese automakers than any other supplier globally, including a formal Geely Auto supply agreement. China is simultaneously the world's most rapidly expanding SiC substrate supplier, with over twelve domestic companies having entered 8-inch SiC wafer development by mid-2024, creating a dynamic in which domestic OEMs progressively qualify Chinese SiC suppliers alongside established foreign vendors-a pattern with implications for long-term competitive intensity and pricing.

South Korea at USD 213.2 million in 2025 (CAGR ~13.00%) is the second-largest Asia Pacific WBG market, driven by Samsung and Hyundai-affiliated supply chains, ongoing 5G network densification, and growing hyperscale data center investment. Japan at USD 97.3 million in 2025 (CAGR ~13.72%) is home to ROHM, Renesas, Fuji Electric, and Toshiba Electronic Devices as major WBG device manufacturers; ROHM's expanded Chikugo plant began mass production in 2022, and its Miyazaki Plant No. 2 (acquired 2023) targets device production from 2026 as a strategic capacity expansion.

India at USD 58.6 million in 2025, with the highest forecast CAGR among Asia Pacific markets at approximately 14.54%, reflects early-stage but rapidly accelerating EV adoption, the government's ambitious solar energy installation targets, and emerging semiconductor manufacturing initiatives under the Semicon India programme. Australia at USD 80.6 million in 2025 (CAGR ~11.37%) is driven by renewable energy deployment-particularly utility-scale solar and wind-and mining and industrial power applications where SiC-based variable-speed drives offer meaningful energy efficiency improvements.

Latin America

Latin America's WBG market at USD 99.5 million in 2025, projected to USD 109.2 million in 2026 and USD 234.9 million by 2035 at approximately 8.89% CAGR, represents an emerging but structurally constrained opportunity. Brazil at USD 38.5 million in 2025 (CAGR ~8.47%) is the region's largest market, driven by solar energy expansion and growing EV sales-Brazil recorded significant EV growth in 2025 per IEA tracking -alongside industrial applications in mining and grid infrastructure. Mexico at USD 27.9 million in 2025 (CAGR ~10.34%) is shaped by its role as a major EV component and vehicle assembly location for OEMs serving the North American market, creating demand for SiC power modules through Tier 1 supply chains. Argentina at a smaller market base reflects early-stage renewable energy development under government-backed programs. Regional constraints-including limited local semiconductor manufacturing capability, import tariff structures, and macroeconomic volatility-extend procurement cycles and suppress adoption velocity relative to the technology-pull demand signal.

Middle East and Africa

The Middle East and Africa region at USD 69.1 million in 2025, projected to USD 75.7 million in 2026 and USD 134.5 million by 2035 at approximately 6.59% CAGR, is the smallest and slowest-growing WBG geography. Saudi Arabia at USD 20.0 million in 2025 (CAGR ~6.96%) and the UAE at USD 11.0 million in 2025 (CAGR ~7.40%) are investing in renewable energy infrastructure as part of national energy transition and diversification agendas, creating targeted demand for utility-scale solar inverters incorporating SiC power conversion stages. The UAE's positioning as a regional data center and hyperscale infrastructure hub adds a GaN power electronics demand layer aligned with AI-driven data center build-out in the Gulf. South Africa at USD 5.4 million in 2025 (CAGR ~8.11%) represents the region's most developed industrial power sector, where mining and processing industries are evaluating SiC-based variable-speed drive efficiency improvements against conventional silicon alternatives.

Wide Bandgap Semiconductors Market Share & Competitive Landscape

The WBG semiconductor competitive landscape is defined by high capital intensity in substrate and device manufacturing, multi-year automotive-grade qualification cycles, and escalating R&D investment in next-generation process nodes and wafer size transitions. Based on a 2023 base-year market of USD 1,948.5 million, Infineon Technologies led with a 17.24% share (USD 335.9 million), followed by Texas Instruments at 11.32% (USD 220.6 million) and STMicroelectronics at 9.97% (USD 194.3 million).

Global Key Players

Infineon Technologies AG (17.24% share) holds the leading competitive position in WBG semiconductors, with a full-line coverage spanning CoolSiC and CoolGaN products across automotive, industrial, and RF applications. Infineon reported approximately EUR 14.955 billion in total revenue for fiscal 2024 (year ended September 30, 2024), navigating an 8% year-over-year decline in a cyclically weak demand environment while maintaining a segment result margin of 20.8%. The company's GaN technological differentiation is significant: Infineon announced it became the first manufacturer globally to develop GaN wafer technology for power semiconductors on 300mm wafers, compatible with its existing silicon fabrication equipment-a capability expected to reduce GaN costs to near silicon-parity at scale by enabling 2.3 times more chips per wafer than 200mm processes. SiC capacity expansion is centered at Kulim (Malaysia) and Villach (Austria), with a multi-year supply agreement with Wolfspeed covering both 150mm and 200mm SiC substrates.

STMicroelectronics N.V. (9.97% share) reported SiC revenue of USD 1.1 billion in full-year 2024-one of the largest discrete WBG revenue disclosures among publicly reporting manufacturers-against a total net revenue of USD 13.27 billion that declined 23.2% year-on-year due to industrial and automotive market softness. STM's SiC business demonstrated specific strategic momentum: a long-term SiC supply agreement with Geely Auto signed in 2024, multiple high-value design wins with Chinese EV customers in which the company holds broader SiC engagement agreements than any other supplier globally, introduction of its fourth-generation SiC MOSFET technology, and the development of a vertically integrated Silicon Carbide Campus integrating substrate manufacturing and device fabrication.

Mitsubishi Electric Corporation (7.65% share) brings deep power module engineering expertise, focusing on high-power industrial and traction applications including rail, wind energy, and industrial variable-speed drives through its DIPIPM and full-SiC module product lines. Its engineering heritage in large-format power module design positions it competitively in the multi-megawatt renewable energy and traction segments.

Toshiba Electronic Devices & Storage Corporation (2.96% share) focuses on SiC MOSFETs and modules for industrial and automotive applications, with design wins across EV charging systems and industrial converter platforms.

North America

Texas Instruments Inc.  (11.32% share) integrates GaN and SiC capability within its broader analog and embedded processing portfolio, addressing industrial, telecom, data center, and automotive markets with gate-driver integration and power stage solutions. TI's extensive analog fab network provides a structural cost-structure advantage for GaN-on-Si volume production at scale.

Wolfspeed, Inc. (8.27% share) is the world's largest dedicated SiC manufacturer and a critical upstream node as a substrate supplier to third-party device manufacturers. Wolfspeed reported approximately USD 807 million in fiscal 2024 revenue and design-ins of USD 9.1 billion in the same period, up from USD 7.9 billion in fiscal 2023. Its Mohawk Valley facility in Marcy, New York, is the world's first fully automated 200mm SiC power device fab; proposed CHIPS Act funding of up to USD 750 million would support construction of the John Palmour Manufacturing Center in Siler City, NC, planned as the world's first high-volume 200mm SiC wafer manufacturing facility, with a five-fold increase in device output and ten-fold increase in 200mm materials production capacity.

Littelfuse, Inc. (1.15% share) addresses industrial, automotive, and electronics protection markets, complementing its traditional passive component portfolio with SiC Schottky diodes and MOSFETs for power conversion designs where device integration with protection functions adds value.

Microsemi Corporation (1.57% share, a Microchip Technology subsidiary) specializes in high-reliability and radiation-hardened SiC and GaN devices for aerospace, defense, and space applications, where its established qualification pedigree constitutes a competitive moat against commercial device manufacturers.

Asia Pacific

ROHM Semiconductor (5.49% share) has established a comprehensive SiC and GaN device portfolio, targeting SiC device sales of ¥110 billion or more in FY2025 and ¥220 billion or more in FY2027 against a confirmed design-win pipeline of approximately ¥700 billion from FY2025 to FY2027. Design wins confirmed with more than 130 companies across China, Europe, the Americas, and Japan reflect deliberate diversification away from single-region EV exposure. ROHM's EcoGaN GaN HEMT series was adopted by Murata Power Solutions for AI server PSU mass production from 2025, illustrating active GaN expansion beyond automotive into data center applications. Production is transitioning from 6-inch to 8-inch SiC at both the Chikugo and Miyazaki plants, with ROHM projecting 20–30% cost improvement from the wafer-size change.

Renesas Electronics Corporation (5.32% share) integrates SiC and GaN power devices with its broad microcontroller and analog IC portfolio, serving automotive and industrial markets through system-level power management solutions that combine switching devices with control and protection functions.

Fuji Electric Co., Ltd. (1.46% share) is a major power module supplier for industrial motor drives, renewable energy inverters, and rail traction systems, backed by a ¥200 billion three-year investment program covering 8-inch SiC capacity at its Matsumoto factory with targeted production from 2027.

Nexperia (0.41% share) focuses on high-efficiency discrete GaN transistors for power conversion applications, leveraging its high-volume discrete semiconductor manufacturing base for competitive pricing in consumer and industrial GaN applications.

Europe

SEMIKRON  (1.42% share, now SEMIKRON Danfoss following its merger with Danfoss Silicon Power) specializes in power electronic modules including SiC-based solutions for industrial drives, renewable energy inverters, and traction systems, with deep OEM relationships in European industrial markets.

CISSOID (0.34% share) is a Belgian specialist in high-temperature SiC power electronics and gate-driver ICs, addressing defense, aerospace, and oil-and-gas applications where junction temperatures exceed standard commercial device ratings-a niche where its qualification depth provides competitive differentiation.

Niche/Disruptors

Navitas Semiconductor (GeneSiC Semiconductor) (0.58% share) operates as the only pure-play next-generation WBG semiconductor company, with GaNFast and GaNSafe GaN IC platforms and GeneSiC SiC MOSFET series. Its 12kW PSU platform targeting hyperscale AI racks at 120kW rack power densities represents the current frontier of GaN's expansion into data center applications, combining GaN for front-end power factor correction with SiC for DC-DC conversion in a complementary topology.

Diodes Incorporated (1.98% share) extends its discrete semiconductor expertise into SiC MOSFETs and GaN devices for cost-competitive industrial and consumer power conversion applications, with a broad global distribution network serving design-in at smaller OEMs.

Vishay Intertechnology Inc. (0.31% share) addresses value-tier SiC Schottky diode and MOSFET applications in industrial and automotive markets, competing on qualification breadth and distribution reach across its extensive customer base.

Recent Industry Developments

The WBG semiconductor industry experienced a concentrated cluster of supply-chain, policy, and technology developments in 2024–2025 that are reshaping the competitive structure of the market across manufacturing, government engagement, and material science.

In substrate manufacturing, the global 8-inch SiC transition accelerated significantly. As of late 2024, 14 new 8-inch SiC fabrication facilities were under construction or announced worldwide. Onsemi qualified 200mm SiC substrates through its full production process in 2024 with revenue production targeted for 2025. Resonac and Soitec signed an agreement in September 2024 to co-develop 200mm SmartSiC wafers using Resonac's substrate and epitaxy, adding a bonded-substrate supply pathway to the 8-inch ecosystem. Coherent launched 200mm SiC epitaxial wafer production and began shipments in September 2024. Sumitomo Metal Mining/Sicoxs established an 8-inch bonded SiC substrate mass production line in September 2024, targeting monthly capacity exceeding 10,000 substrates by the second half of fiscal 2025. Industry consensus projects that 6-inch SiC products will progressively be replaced by 8-inch from 2026–2027 onward, with the cost reduction from the size transition (approximately 35% per-die savings) serving as the primary structural driver of SiC market expansion into new application tiers.

In government policy, the U.S. CHIPS and Science Act produced two landmark WBG-specific announcements in October–December 2024. The proposed USD 750 million CHIPS direct funding package for Wolfspeed-announced by the Department of Commerce and NIST in October 2024-represents the largest targeted government investment in SiC manufacturing in U.S. history and is expected to catalyze an additional USD 750 million in private capital alongside CHIPS manufacturing tax credits ^{[8]U.S. Department of Commerce / NIST, Biden-Harris Administration Announces Preliminary Terms with Wolfspeed to Solidify U.S. Technological Leadership in Silicon Carbide Manufacturing. nist.gov}. In December 2024, Bosch received preliminary terms for USD 225 million in direct CHIPS funding plus approximately USD 350 million in government loans, supporting a USD 1.9 billion Roseville SiC facility conversion targeting 200mm production from 2026, which at full capacity could account for more than 40% of total U.S. SiC device manufacturing capacity ^{[9]U.S. Department of Commerce, Biden-Harris Administration Announces Preliminary Terms with Bosch to Advance Silicon Carbide Manufacturing. commerce.gov} .

In technology, Infineon disclosed that it had become the first manufacturer globally to develop 300mm GaN wafer technology for power semiconductors, using equipment compatible with existing silicon fabs-a development that eliminates dedicated GaN manufacturing capital requirements and projects GaN cost-to-silicon parity as production scales. Onsemi independently disclosed the development of vertical GaN-on-GaN transistor architecture (vGaN), enabling high-voltage and high-current GaN operation for AI data centers, EV powertrains, and aerospace applications that exceed the voltage ceilings of conventional lateral GaN HEMT designs.

In emerging and ultrawide-bandgap (UWBG) materials, beta-gallium oxide (β-Ga₂O₃) is advancing as the leading next-generation candidate for ultra-high-voltage power applications, with a bandgap of approximately 4.9 eV and a critical electric field of 8 MV/cm that together yield a Baliga figure of merit exceeding 3,000 times that of silicon. Research demonstrations have achieved breakdown voltages exceeding 10kV in lateral structures and 5kV in vertical β-Ga₂O₃ devices ; Japanese industry participants have targeted vehicle applications by the 2030s. Diamond remains at the research stage but is recognized for exceptional thermal conductivity (greater than 2,000 W/m·K)-the highest of any known bulk material-making it particularly attractive as a thermal management substrate for high-power GaN and SiC devices where junction temperature management is a primary reliability constraint.
