Shortwave Infrared (SWIR) Market Size

The global shortwave infrared (SWIR) market was valued at USD 788.1 million in 2025 and is projected to reach USD 843.9 million in 2026 and USD 2.3 billion by 2035, expanding at a CAGR of approximately 12.5% from 2026 to 2035.

SWIR LEDs operate across the 700 nm–2,500 nm band, where illumination can expose material properties that conventional visible imaging cannot resolve. Their value proposition is strongest where spectral contrast changes an operating decision: detecting subsurface wafer defects, differentiating polymers, measuring moisture, or imaging scenes under conditions that constrain visible cameras. These applications require specialized emitters, optics, and detectors, which keeps the market tied to performance-critical rather than commodity lighting demand.

The market is also shaped by a technical trade-off. InGaAs-based imaging and longer-wavelength emitters extend usable spectral coverage but add cost and integration requirements relative to visible and conventional near-infrared systems. Recent source and package improvements are therefore significant because higher output, better efficiency, and smaller footprints can reduce the illumination burden placed on a complete SWIR system rather than simply improve an individual LED specification ^{[1]Ushio Inc. Adopts the world's first SWIR LED chip utilizing a flip-chip structure with InP materials, November 2024, ushio.co.jp}.

The supply-side question is whether efficiency and packaging advances can lower system-level cost fast enough to expand demand beyond established industrial and defense deployments. Ushio's compact flip-chip package and DOWA's higher-output products indicate that suppliers are targeting this constraint from different directions: denser integration for compact devices and more radiant output for inspection systems. The resulting market is likely to reward manufacturers that combine wavelength performance with practical integration support.

The 1020–2500 nm range has the broadest technical addressability because it includes wavelengths relevant to silicon inspection, water absorption analysis, eye-safe illumination, and extended-SWIR sensing. Device advances at 1,300 nm, 1,460 nm, and 1,900 nm are expanding usable output at application-relevant wavelengths.

Key Drivers

Rising Adoption in Industrial Automation and Quality Inspection

Industrial deployment depends on SWIR's ability to create contrast where visible imaging produces ambiguous results. Silicon transparency at wavelengths above approximately 1,100 nm supports non-destructive inspection of wafers and bonded structures, while molecular absorption characteristics can support moisture measurement and material differentiation in food, pharmaceutical, and recycling processes ^{[2]Ushio Inc. Epitex SMBB1050GD - SWIR LED output power record and application overview, April 2021, ushio.co.jp}. This shifts SWIR illumination from a laboratory accessory toward an inline quality-control input when a production line requires continuous detection rather than sample-based testing.

High-output packages further support fast-conveyor applications because strobing can concentrate light during a camera's integration period without imposing the same average thermal load as continuous operation. Ushio's SMBB product family illustrates the importance of multi-chip configurations for machine-vision illumination, where scene brightness and inspection speed must be balanced against system heat management.

Increased Integration with AI and Advanced Image Processing

AI systems benefit from SWIR because the spectral signal can distinguish materials that appear similar in visible images. A 2024 study reported that SWIR-based image data improved material-classification performance relative to visible-spectrum-only approaches in tested scenarios, reinforcing the role of SWIR as a complementary sensing modality rather than a replacement for visible imaging ^{[3]MDPI Applied Sciences, Short-Wave Infrared (SWIR) Imaging for Robust Material Classification: Overcoming Limitations of Visible Spectrum Data, November 2024, mdpi.com}.

Hardware integration is reducing the cost and complexity of combining spectral inputs. Sony's SenSWIR technology combines InGaAs photodiodes with silicon circuitry through copper-to-copper bonding and covers a broad 400–1,700 nm response range, allowing a single sensor architecture to address visible and SWIR information ^{[4]Sony Semiconductor Solutions Group, Short-Wavelength InfraRed Image Sensor Technology SenSWIR, undated, sony-semicon.com}. In defense, the U.S. Army's SBIR topic for AI/ML-enabled polarimetric SWIR cameras demonstrates active interest in linking SWIR imagery with automated detection and tracking of swarming UAVs.

Expansion in Defense and Security Surveillance Applications

SWIR systems can provide high-resolution imagery in low-light conditions and support laser-related detection applications that are difficult to address with visible cameras alone. The U.S. Army has identified the cost of InGaAs focal-plane arrays as a constraint on wider deployment of SWIR laser sensors, confirming both the operational relevance of the technology and the procurement pressure for lower-cost architectures ^{[5]U.S. Army SBIR/STTR Program, Low-Cost SWIR Laser Sensor, undated, armysbir.army.mil}.

Security demand also extends to AI-enabled surveillance, where the objective is not illumination alone but rapid discrimination of targets in complex scenes. The Army's polarimetric SWIR camera topic links SWIR sensing directly to counter-swarming-UAV requirements, a mission that favors wide-area sensing, automated classification, and rapid tracking. These requirements strengthen demand for qualified, high-reliability components but may create longer sales cycles than commercial machine-vision deployments.

Growing Use in Semiconductor and Electronics Inspection

Semiconductor inspection is a high-value SWIR application because advanced packaging and bonded structures increase the need to inspect features that cannot be evaluated adequately with visible illumination. SWIR cameras are used in inspection workflows involving silicon wafers, photoluminescence, and electroluminescence, where the objective is to detect yield-limiting defects before subsequent processing adds value.

Supplier product development is increasingly tied to this application. DOWA's May 2025 SMD SWIR LED introduced higher radiant output at 1,300 nm, a wavelength associated with semiconductor wafer inspection, while using a surface-mount format intended to simplify system integration. This alignment matters because manufacturers are not only increasing output; they are packaging it in forms that can fit standard assembly processes.

Advancements in SWIR Sensor Materials and Miniaturization

Recent advances are improving SWIR LED performance at both high-output and compact-device ends of the market. Ushio launched mass production of a 1,100 nm GD Series LED in June 2024, reporting 590 mW continuous-wave output at 1 A and an approximately 1.8-fold wall-plug-efficiency improvement over its predecessor. Its later flip-chip InP product used a 0.6 × 0.3 mm package, removing wire-bonding space from the package design.

DOWA has extended performance at longer wavelengths, reporting outputs of 170 mW at 1,350 nm and 45 mW at 1,900 nm for its 2024 SWIR LED chip series. Such improvements expand the practical design space for compact sensing, moisture analysis, gas-related spectroscopy, and industrial illumination. The key commercial effect is a broader range of viable system architectures, although the economics of InGaAs-based imaging remain a limiting factor.

Key Restraints

High Cost of SWIR Sensors and Imaging Systems

SWIR system cost is not determined by the LED alone. Longer-wavelength illumination, specialized optics, InGaAs detector arrays, and associated electronics can each add cost relative to visible-spectrum systems. The U.S. Army's low-cost SWIR laser-sensor topic identifies InGaAs focal-plane-array economics as a central barrier to broader deployment, even where the performance need is established.

This constraint separates applications into two commercial groups. Semiconductor inspection, defense surveillance, and specialized medical equipment can justify higher system prices when SWIR prevents costly errors or fulfills a mission requirement. Cost-sensitive use cases such as mass-market consumer electronics, smaller agricultural operations, and entry-level industrial inspection require a more substantial reduction in system cost before volumes can scale. Sony's bonding approach and Ushio's compact flip-chip package indicate routes toward improved integration economics, but neither eliminates the wider cost gap between SWIR and silicon-based systems.

Complexity of System Integration and Calibration

SWIR deployment requires coordination across illumination wavelength, optical transmission, detector sensitivity, camera timing, thermal behavior, and image-processing logic. Multispectral systems add further complexity because different wavelengths may be used to isolate different material properties, requiring stable timing and calibration across the complete imaging chain.

The challenge is particularly relevant where the output supports a high-consequence decision. Semiconductor inspection must distinguish genuine defects from process variation, while medical and remote-sensing applications may require calibration against changing operating conditions. Exosens notes the role of SWIR imaging in semiconductor inspection applications, underscoring that the technology is commonly embedded in a specialized inspection workflow rather than used as a standalone light source. Integration expertise can therefore become a competitive differentiator for suppliers and system partners, but it can also lengthen qualification cycles.

The strongest growth opportunities are therefore concentrated where component improvements reduce a known operating bottleneck. Higher output at 1,300 nm and 1,460 nm can improve the performance envelope for wafer inspection and food analysis, whereas smaller flip-chip packages are more relevant to compact sensing architectures. Suppliers that treat illumination, thermal design, and integration support as a combined offer should have a more defensible position than those competing only on device output.

Shortwave Infrared (SWIR) Market Segment Analysis

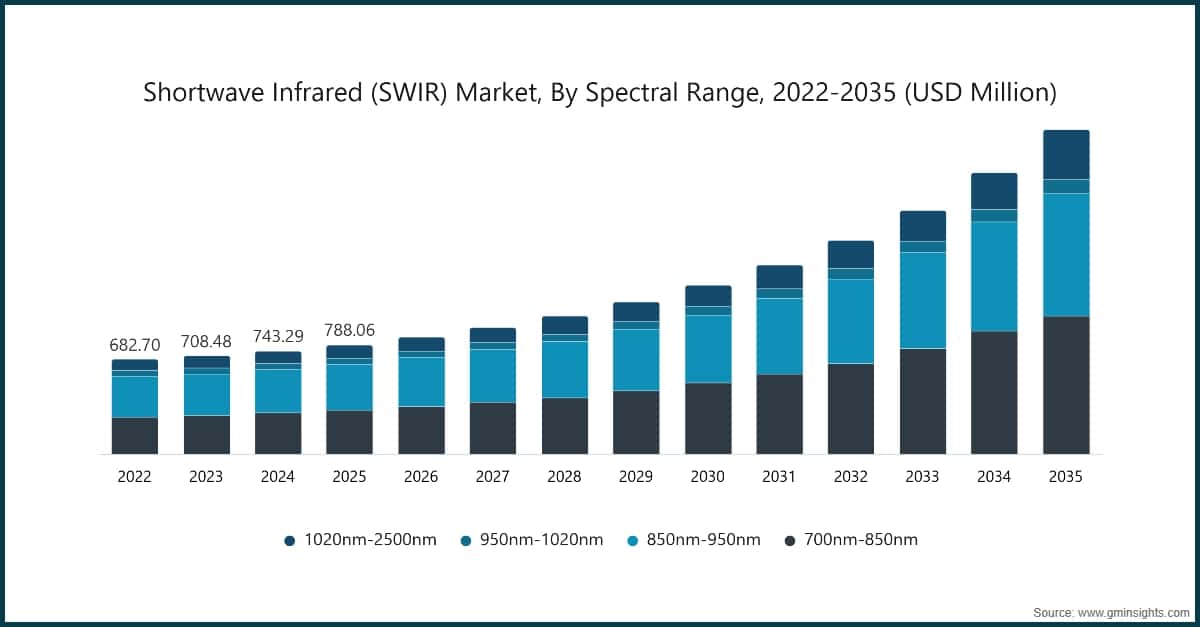

By Spectral Range

The 950–1020 nm range bridges conventional infrared sensing and the wavelengths at which SWIR system benefits become more pronounced. Compact packages are particularly important in this segment because proximity sensing, gesture recognition, and mobile-device architectures are sensitive to size, power draw, and unit cost. Ushio's 1,050 nm product family and its compact flip-chip package reflect supplier efforts to address these design constraints.

The 1020–2500 nm segment offers the broadest range of differentiated SWIR functions. It includes wavelengths used for silicon inspection, moisture analysis, eye-safe illumination, and extended-SWIR sensing. DOWA's reported 1,350 nm and 1,900 nm performance improvements demonstrate the continuing effort to extend usable output deeper into the band. Commercial growth depends on application-specific value: semiconductor inspection and sorting can justify higher system cost today, while environmental, medical, and compact-sensing use cases depend more heavily on continued improvements in efficiency and integration.

By Power Output

Below-1-W SWIR LEDs are suited to compact sensing modules, wearable devices, proximity detection, and portable spectroscopy. Their market potential is tied to miniaturization and power efficiency rather than maximum radiant output. Ushio's 0.6 × 0.3 mm flip-chip package is relevant to this tier because it reduces package-area constraints for compact electronic designs.

The 1 W–5 W tier serves many industrial machine-vision, sorting, and medium-distance inspection configurations. It balances brightness with manageable thermal requirements and is well suited to strobe-driven illumination. Surface-mount products can improve manufacturability by reducing custom assembly work; DOWA's 5 mm SMD product is positioned around this integration advantage.

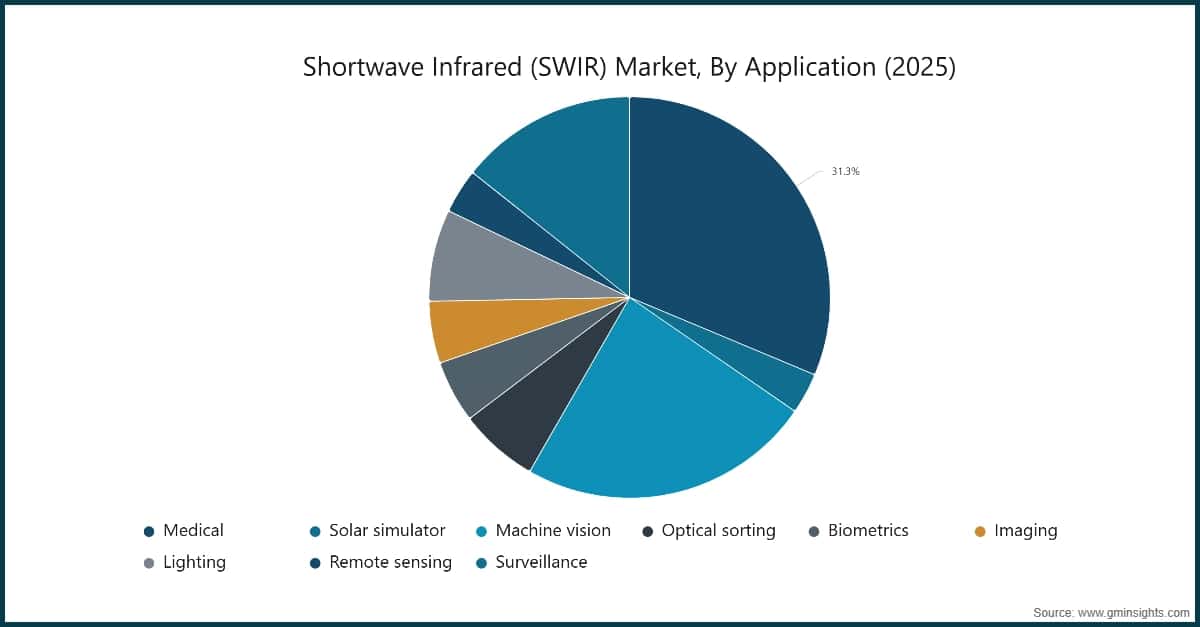

By Application

Medical SWIR use includes tissue imaging, non-invasive sensing research, and optical systems that use wavelength-specific absorption characteristics. Adoption is governed by clinical validation and regulatory requirements, particularly when the output influences diagnosis or patient monitoring. Compact source designs may expand the feasible device set, but clinical evidence and workflow integration remain decisive constraints.

Machine vision remains a central application because SWIR illumination can reveal subsurface silicon features and material differences that visible imaging cannot reliably identify. Sony's broad-response SenSWIR architecture illustrates the value of combining visible and SWIR information within a more integrated imaging design. The segment benefits when faster defect classification converts spectral data into real-time production decisions.

Optical sorting uses material-specific SWIR absorption and reflectance to separate products on production lines. Food quality, moisture analysis, and polymer differentiation are commercially relevant because sorting accuracy can affect waste, yield, and recyclate quality. DOWA's improved output at 1,460 nm, a water-absorption-related wavelength, shows the connection between source engineering and food-analysis applications.

Lighting and remote-sensing applications use SWIR sources for environmental measurement, agricultural analysis, and specialized surveillance. Longer wavelengths can broaden the range of absorption-related measurements available to a system. DOWA's reported 1,900 nm output is relevant because it extends commercially available LED capability beyond the most common shorter-SWIR range.

By End-User

Aerospace and defense demand is driven by intelligence, surveillance, reconnaissance, laser detection, and perimeter-security requirements. The U.S. Army's active SBIR topics indicate demand for lower-cost SWIR laser sensors and AI-enabled polarimetric systems. Qualification, reliability, and mission relevance can sustain premium pricing.

Automotive use cases include sensing, driver monitoring, and advanced imaging architectures. Adoption depends on whether SWIR offers a measurable safety or performance benefit over lower-cost alternatives and whether suppliers can meet automotive qualification, cost, and scale requirements.

BFSI deployments center on high-security biometric verification and anti-fraud functions. The market is selective because SWIR hardware must demonstrate a meaningful authentication advantage relative to established biometric technologies.

Consumer electronics is an important long-term opportunity but remains highly cost-sensitive. Compact package developments can improve feasibility for proximity sensing and wearable architectures, yet broad adoption depends on cost, integration, and demonstrated user value.

Education demand is modest and primarily associated with photonics, spectroscopy, and research laboratories. It supports specialized equipment purchases but is not a major volume driver.

A two-track product strategy is therefore emerging. Higher-output sources support applications where throughput, inspection depth, or standoff distance is economically critical, while miniaturized products pursue future volume in compact electronics. DOWA's wavelength-specific output improvements and Ushio's flip-chip architecture demonstrate that these tracks require different engineering priorities. Suppliers that can support both may reduce dependence on any single end-market cycle.

Shortwave Infrared (SWIR) Market Regional Analysis

North America

North America accounted for $254.3 million in 2025 and is projected to reach $726.4 million by 2035, expanding at approximately 12.0% CAGR. Demand is supported by semiconductor equipment, advanced industrial inspection, defense electronics, and medical-device development. U.S. Army initiatives for low-cost SWIR laser sensors and AI/ML-enabled polarimetric cameras provide evidence of continuing defense interest in SWIR capability.

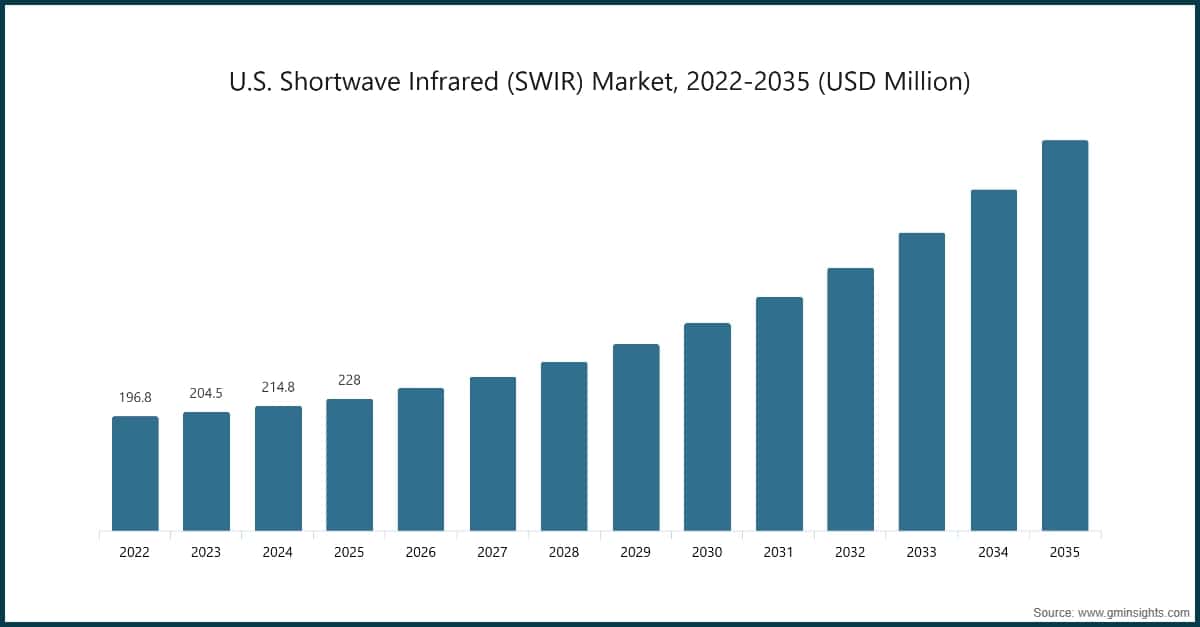

The U.S. is the primary regional market, supported by defense procurement, semiconductor-related inspection requirements, and system-integration capability. Canada contributes through industrial, agricultural, and research-oriented applications, although its market scale is smaller.

Europe

Europe recorded $159.8 million in 2025 and is forecast to reach $392.1 million by 2035, at approximately 10.4% CAGR. The region's demand centers on industrial automation, pharmaceutical inspection, automotive systems, food processing, recycling, and specialized defense applications. Its growth profile is more closely associated with upgrading established industrial workflows than with creating entirely new SWIR demand categories.

Germany is a major market for industrial automation and automotive-related systems. The UK contributes through defense, security, and life-science applications, while France supports aerospace and defense demand. Italy, Spain, and the Netherlands participate through manufacturing, food processing, agricultural sensing, and logistics-related use cases.

Asia Pacific

Asia Pacific is projected to expand from $318.8 million in 2025 to $1,101.3 million by 2035, representing the fastest regional CAGR of approximately 14.3%. The region combines a large semiconductor and electronics manufacturing base with an important share of SWIR component supply. This proximity between source production, system integrators, and end-user manufacturing can shorten development cycles and improve application-specific qualification.

China supports demand from manufacturing automation, surveillance infrastructure, and electronics production. Japan is strategically important because it hosts Ushio OPTO Semiconductors and DOWA Electronics Materials, both of which have introduced performance improvements across important SWIR wavelengths. South Korea is supported by semiconductor and display manufacturing, while India contributes through industrial inspection and surveillance applications. ANZ demand is more associated with agricultural sensing, food quality, and research applications.

Latin America

Latin America represented $17.4 million in 2025 and is projected to reach $32.6 million by 2035, at approximately 7.5% CAGR. Demand is concentrated in food processing, export-oriented agriculture, automotive manufacturing, and selected security applications. Import dependence and limited specialist integration capacity can extend procurement cycles and constrain adoption outside high-value applications.

Brazil is the largest regional market, supported by agricultural and food-processing opportunities. Mexico benefits from automotive and cross-border manufacturing activity, while Argentina contributes smaller industrial and agricultural sensing demand.

Middle East & Africa

The Middle East & Africa market totaled $37.8 million in 2025 and is projected to reach $90.8 million by 2035, expanding at approximately 9.9% CAGR. Defense, border security, critical-infrastructure protection, and smart-surveillance investment support regional demand, particularly where low-light and adverse-condition imaging is operationally valuable.

Saudi Arabia and the UAE are key markets for security and defense-related systems. South Africa contributes demand from industrial, mining, and security applications. The region's growth depends heavily on project-based procurement, which can produce uneven annual demand despite a positive longer-term trajectory.

North America retains a different strategic role. Its projected expansion from $254.3 million to $726.4 million is supported by higher-value defense and semiconductor-equipment use cases, where performance and qualification can outweigh component cost. Europe's lower growth rate reflects a comparatively mature industrial base, while Latin America and Middle East & Africa remain more dependent on project economics, import availability, and application-specific procurement. Regional success will therefore depend on local engineering support and qualification access as much as on wavelength or output specifications.

Shortwave Infrared (SWIR) Market Share & Competitive Landscape

Competition is organized around wavelength coverage, radiant efficiency, packaging format, reliability, and the ability to support end-use integration. Device suppliers with expertise in longer wavelengths and high-output products are positioned to serve semiconductor, industrial, and defense applications, while compact-package capabilities are increasingly relevant to consumer, medical, and portable-sensing opportunities.

Ushio OPTO Semiconductors Inc. held an approximate 17.6% share in 2025. Its product activity includes 1,100 nm high-output LEDs, 1,900 nm SWIR LED sample shipments, and a compact InP flip-chip package, spanning both performance and miniaturization priorities.

DOWA Electronics Materials Co. Ltd. held an approximate 13.4% share in 2025. Its reported product developments include high-output SWIR chips from 1,200 nm to 1,900 nm and a high-power SMD format targeting inspection and food-analysis applications.

Lite-On Inc. held an approximate 9.2% share, while Everlight Electronics Co Ltd accounted for approximately 8.7% and EPILEDS approximately 5.0%. These suppliers are relevant to volume packaging, industrial applications, and infrared-component supply. The remaining market is fragmented, with other suppliers collectively accounting for approximately 46.0% of 2025 market value.

The competitive landscape also includes Brightek (Europe) Limited, Epistar Corporation, Excelitas Technologies Corporation, High Power Lighting Corporation, Kingbright, Lextar Electronics Corporation, Lumileds, Marktech Optoelectronics, ON Semiconductor, ROHM Semiconductor, Vishay Intertechnology, and Wurth Electronics Inc. Their roles vary across LED manufacturing, specialty optoelectronics, catalog supply, application engineering, and access to industrial, automotive, medical, and defense channels.

The main strategic dividing line is between suppliers that can provide differentiated long-wavelength or high-output products and those competing through packaging, distribution reach, and application support. As systems become more integrated, a supplier's ability to help customers manage illumination geometry, heat, optics, timing, and qualification may become as important as nominal device output.

Recent Industry Developments

• May 2025 - DOWA launched a high-power SMD SWIR LED covering 1,040–1,900 nm, reporting higher radiant output at 1,300 nm and 1,460 nm than comparable bare LED configurations.
• August 2024 - Ushio began shipping samples of Epitex F Series bare SWIR LED chips covering 1,050–1,900 nm, extending design flexibility for third-party package manufacturers.
• November 2024 - Ushio announced sample shipments of an EDP-packaged SWIR LED using an InP flip-chip structure in a 0.6 × 0.3 mm package for 1,050–1,650 nm applications.
