Memristor Market Size & Share 2026-2035

Memristor Market Size

The global memristor market was valued at USD 436.5 million in 2025. The market is expected to grow from USD 566.2 million in 2026 to USD 2.1 billion in 2031 & USD 6.1 billion in 2035, at a CAGR of 30.2% during the forecast period according to the latest report published by Global Market Insights Inc.

Growth depends on whether non-volatile devices can move from discrete and embedded-memory roles into qualified compute-in-memory and security architectures without losing the yield, retention, and accuracy needed for volume semiconductor programs.

Memristors are two-terminal devices whose resistance changes with the history of applied electrical stimulus and remains after power is removed. That behavior permits storage and, in crossbar arrangements, analog matrix-vector operations in the same physical array; it is the technical basis for their relevance to edge inference, persistent embedded memory, and hardware-root-of-trust designs.^[1]mdpi.com The commercial proposition is therefore not a single replacement cycle for flash or DRAM. It is the ability to remove data transfers between memory and processing in selected workloads, while retaining non-volatility when a system is idle.

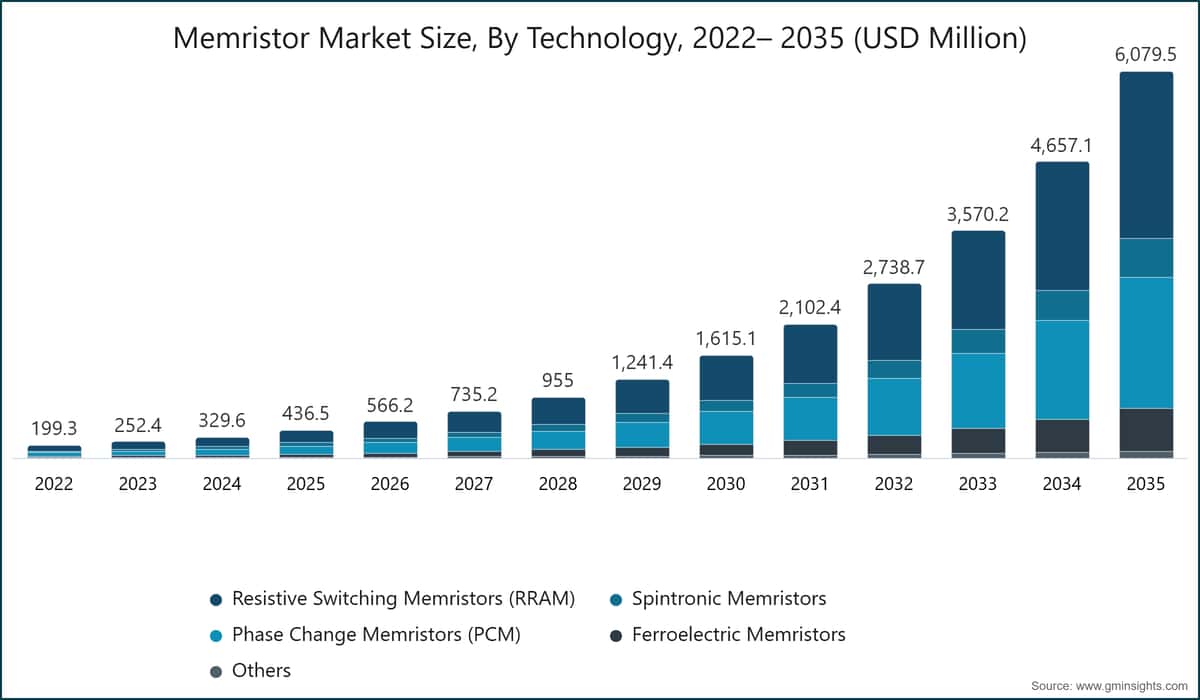

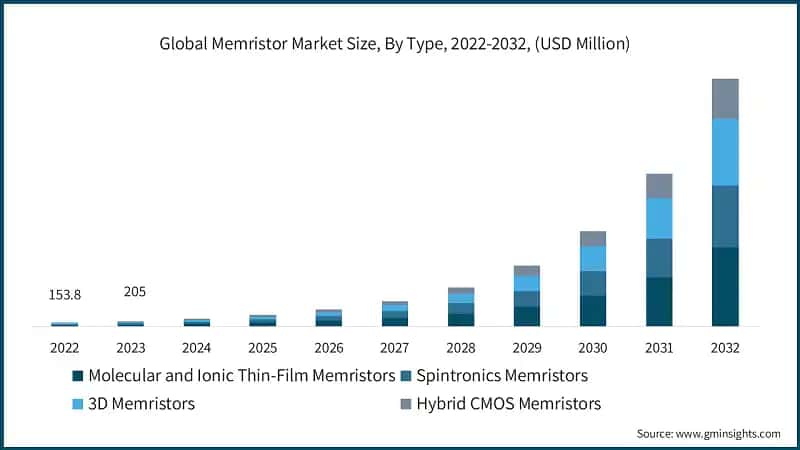

Resistive switching memristors (RRAM) account for USD 195.7 million in 2025, ahead of phase-change memristors (PCM) at USD 130.1 million, spintronic memristors at USD 52.7 million, ferroelectric memristors at USD 46.1 million, and other technologies at USD 11.9 million. RRAM holds the near-term lead because its materials and back-end integration route fit embedded non-volatile-memory use cases. PCM carries the highest technology CAGR, at approximately 31.8%, because its multi-level conductance can address analog compute workloads if drift and programming precision remain controlled. Research on low-drift SiSbTe PCM illustrates why material stability, rather than raw switching alone, is central to the latter opportunity.^{[2]research.ibm.com}

The supply-side setting is becoming more supportive, although it does not eliminate qualification risk. U.S. CHIPS incentives awarded to Micron for projects in Idaho and New York total up to USD 6.165 billion, strengthening the domestic advanced-memory ecosystem. In Europe, Regulation (EU) 2023/1781 established the Chips Act framework to reinforce semiconductor capacity and design capabilities. These measures do not constitute direct demand for memristors; their practical effect is to enlarge the process-development, packaging, and customer-qualification base from which emerging memory technologies can seek production insertion.

The forecast therefore hinges less on a generalized AI-spending narrative than on design enablement. A licensed, characterized process option converts memristor capability into something a fabless customer can tape out. By contrast, an impressive array-level energy result without repeatable wafer-level behavior has limited purchasing value. Suppliers that combine process IP, test data, and an accessible design flow are positioned to capture the transition from research hardware to qualified embedded and inference products.

Key Drivers

AI inference and neuromorphic workloads

Analog crossbars can represent weights as conductance states and perform matrix-vector multiplication through the array, reducing repeated movement of weights between memory and compute. A 2025 study of a near-threshold memristive compute-in-memory engine demonstrates the relevance of that approach to edge intelligence, where off-chip memory traffic can dominate the energy budget.^{[3]nature.com} IBM's disc-type PCM work reported programming currents of about 40 μA and a resistance window spanning more than three orders of magnitude, attributes intended to improve analog weight control. Such results make AI inference a demand driver, but commercial value depends on preserving model accuracy after device variation and peripheral conversion are included.

Low-power embedded non-volatile memory

Embedded systems need code retention, configuration storage, and event logging without continuous power. RRAM is attractive where conventional embedded flash becomes difficult to integrate with advanced logic because the non-volatile element can be incorporated into the chip's interconnect stack. Weebit Nano's Texas Instruments license, announced in December 2025, provides a concrete example of the route from memory IP to an advanced embedded-process customer. The demand mechanism is strongest in products where eliminating a separate memory component or a flash-compatible process module improves power, area, or node selection.

Data-center and high-performance storage requirements

Data-center demand is not limited to AI accelerators. Persistent memory that can preserve data through power events has value in storage subsystems, while analog compute architectures are being evaluated for inference. Everspin's 1 Gb PERSYST STT-MRAM was selected for IBM FlashCore Module 4, an April 2024 design win that links a spintronic persistent-memory product to enterprise storage. That deployment does not establish broad substitution for DRAM or NAND, but it demonstrates a nearer-term commercial pathway in which non-volatility and bandwidth are specified at the system level.

Edge and industrial IoT deployment

At the edge, a memory technology must satisfy conflicting requirements: low energy, persistence, local processing, and application-specific reliability. Memristive arrays can keep weights close to a sensor-processing path, and stochastic switching can also be used in physical unclonable functions or random-number generation. Research on tunable stochastic memristors supports the latter security pathway. The economic benefit is highest where cloud connectivity, battery replacement, or exposed security buses are costly; this makes the opportunity more selective than the broad installed base of IoT endpoints.

Process integration and fabrication progress

Manufacturing progress is broadening the set of credible architectures. 4DS Memory reported a 4.7 ns write-speed milestone and a December 2024 design agreement with Infineon for a custom PCMO ReRAM test chip. Separately, a TetraMem and SK hynix paper described a 65-nm memristor-based in-memory-computing SoC with 21.3 TOPS/W for depthwise convolution. These milestones matter because they test process and system integration simultaneously, narrowing the gap between a material demonstration and a designable product.

Key Restraints

Technology variability and reliability

Filament formation and dissolution in many RRAM devices are stochastic. The resulting device-to-device and cycle-to-cycle conductance spread affects read margins, array programming, and analog-inference accuracy. A review of memristive neuromorphic hardware identifies variability, nonlinearity, endurance, and array-level parasitics as persistent obstacles to mainstream deployment. The cost is not confined to the cell: redundancy, calibration, selectors, error compensation, and larger peripheral circuits can dilute the density and energy advantages assumed at the device level.

Manufacturing maturity and scalability

A credible production memory requires reproducible behavior across wafers, process corners, temperature, retention time, and customer qualification conditions. The installed base of production-ready memristor PDKs and statistical models remains narrower than for established embedded flash. A review of solution-processed memristors cautions that performance claims can rely on limited device samples and test protocols that do not translate to target-scale applications. This makes qualification economics a restraint: a customer may value a new memory option but defer adoption until its foundry, test flow, and reliability evidence are mature enough to reduce tape-out risk.

This distinction creates a split market. Embedded non-volatile-memory programs can advance through foundry qualification and customer design wins even while analog compute remains constrained by conductance control. Conversely, PCM and crossbar suppliers can create substantial upside if they demonstrate low drift and repeatable accuracy, but their addressable revenue is more sensitive to validation delays. Procurement teams should therefore distinguish announced demonstrations from designable, supported process options and price the qualification timeline into adoption plans.

Memristor Market Segment Analysis

By Technology

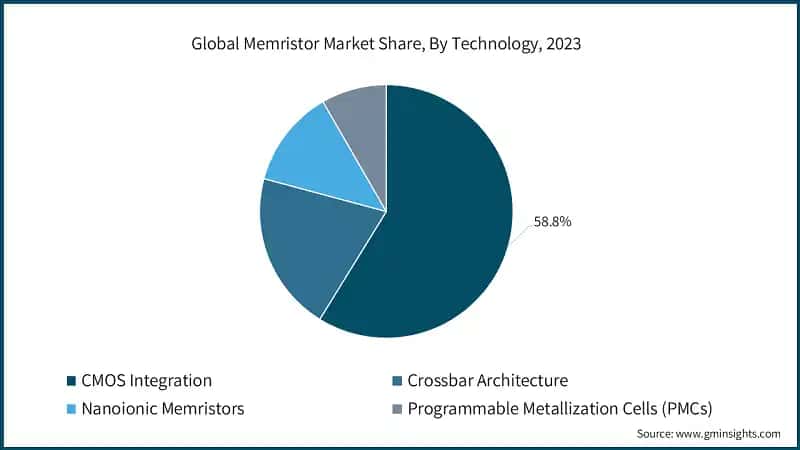

RRAM is projected to grow from USD 195.7 million in 2025 to USD 2,632.4 million by 2035, at an approximately 29.7% CAGR. Its commercial advantage is integration: oxide-based switching layers can be aligned with CMOS back-end processing, supporting embedded macros in microcontrollers, sensors, and SoCs. The technology's lead should not be mistaken for immunity from variability. Its market position rests on whether licensors and foundries can supply models, test structures, and reliability data that make the integration advantage usable for product teams.

PCM grows from USD 130.1 million to USD 2,054.9 million, at an approximately 31.8% CAGR. Its higher growth reflects the potential value of controllable multi-level conductance in analog compute. IBM's SiSbTe PCM research reported state-independent low resistance drift and less than 2% BERT accuracy loss over seven days at 65°C, addressing a key concern for analog weight storage. Spintronic memristors rise from USD 52.7 million to USD 608.0 million, at an approximately 27.7% CAGR, retaining relevance where endurance, thermal tolerance, or persistent storage behavior is prioritized. Ferroelectric memristors grow from USD 46.1 million to USD 674.8 million, at an approximately 30.8% CAGR, aided by hafnium-oxide compatibility with CMOS process development. Other technologies increase from USD 11.9 million to USD 109.4 million, at an approximately 24.8% CAGR.

By Memory Capacity

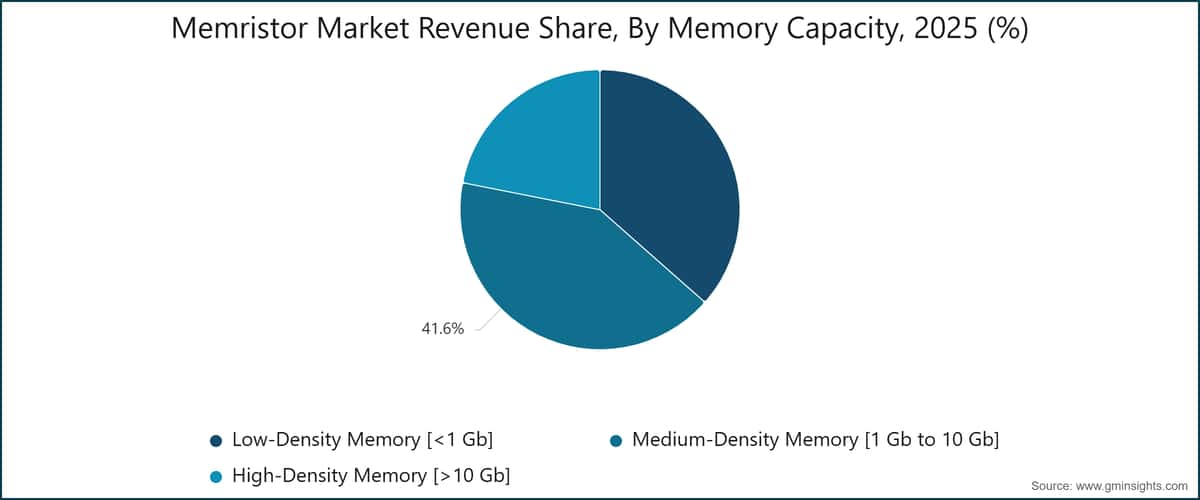

Medium-density memory (1 Gb-10 Gb) leads capacity revenue, increasing from USD 181.8 million in 2025 to USD 2,437.9 million by 2035 at an approximately 29.7% CAGR. It aligns with embedded systems that need materially more than configuration storage but do not require enterprise-scale capacity. Low-density products (<1 Gb) grow from USD 159.4 million to USD 1,836.0 million, at an approximately 27.7% CAGR, serving sensors, wearables, and early-stage crossbar modules. Knowm's SDC crossbar products illustrate the role of accessible devices in research and application prototyping.

High-density memory (>10 Gb) expands from USD 95.4 million to USD 1,805.6 million, at the highest capacity CAGR of approximately 34.2%. The segment's growth assumption reflects a future storage-class-memory and AI-infrastructure opportunity, not a mature installed base. High-density adoption is especially dependent on array-level defect control, selector integration, and production test; those requirements make its faster forecast growth more exposed to manufacturing delays than the medium-density segment.

By Application

Non-Volatile Memory is the largest application in 2025, with ORCA-derived revenue of approximately USD 152.7 million, and is projected to reach approximately USD 1,641.5 million by 2035 at an approximately 26.8% CAGR. It is the commercial anchor because firmware retention and embedded storage have clear specifications and established qualification paths. Neuromorphic & AI Computing is estimated at approximately USD 100.3 million in 2025 and USD 1,884.6 million in 2035, at an approximately 33.9% CAGR. Its growth comes from using conductance states as weights and array currents as calculations, but the practical prize depends on accuracy retention across manufacturing variation rather than on peak array efficiency alone.

Edge Computing & IoT Acceleration grows from approximately USD 87.3 million to USD 1,337.5 million, at an approximately 31.2% CAGR. Reconfigurable Logic & Analog Computing rises from approximately USD 52.4 million to USD 668.7 million, at an approximately 29.2% CAGR. Security & Cryptographic Hardware increases from approximately USD 30.6 million to USD 425.6 million, at an approximately 30.1% CAGR; memristor PUF research has shown that device variation can be converted from a reliability liability into an entropy source when the architecture is designed for it.^{[4]nature.com} Other applications grow from approximately USD 13.2 million to USD 121.6 million, at an approximately 24.8% CAGR.

By Form Factor

Embedded Memory in SoCs is the largest form factor, expanding from approximately USD 165.9 million in 2025 to USD 2,368.5 million in 2035 at an approximately 30.3% CAGR. It matches the near-term commercial model: a memory macro is incorporated into a larger chip, and the customer purchases a qualified design flow rather than a separate memory device. Standalone Memory Devices rise from approximately USD 122.2 million to USD 1,519.9 million, at an approximately 28.7% CAGR, supported by persistent-memory and industrial deployment cases.

Crossbar Array Architectures grow from approximately USD 87.3 million to USD 1,337.5 million, at the fastest form-factor CAGR of approximately 31.5%. Their advantage is simultaneous array-level computation, but their commercial cost includes DACs, ADCs, selectors, and calibration, which can erode cell-level efficiency gains. Neuromorphic Chipsets increase from approximately USD 61.1 million to USD 853.6 million, at an approximately 30.0% CAGR. DARPA's Scalable Analog Neural-networks program, initiated in December 2024, explicitly targets scalable and robust analog neural-network circuits, underscoring the engineering work still needed before these architectures reach broad deployment.

By End-use Industry

Consumer Electronics is the largest end-use segment, rising from USD 122.4 million in 2025 to USD 1,568.5 million by 2035 at an approximately 29.1% CAGR. Its large revenue base reflects the volume economics of embedded devices, but price sensitivity makes qualification and wafer cost decisive. IT & Data Centers grows fastest, from USD 117.3 million to USD 1,933.3 million at an approximately 32.4% CAGR, where persistent-storage design wins and inference architectures can support higher value per device. Automotive rises from USD 67.5 million to USD 991.0 million at an approximately 30.9% CAGR; thermal behavior, retention, and AEC qualification make this a long-cycle market rather than an immediate volume outlet.

Aerospace & Defense expands from USD 41.5 million to USD 456.0 million, at an approximately 27.1% CAGR, while Industrial Manufacturing grows from USD 41.7 million to USD 589.7 million, at an approximately 30.4% CAGR. Healthcare rises from USD 34.9 million to USD 425.6 million, at an approximately 28.4% CAGR, and other end uses increase from USD 11.3 million to USD 115.5 million, at an approximately 26.1% CAGR. Across these sectors, the purchase decision is governed by the relative importance of endurance, power, security, and qualification cost rather than by a uniform memory-performance benchmark.

The intermediate technologies and applications matter because they can convert technical capability into credible customer learning. Standalone products and low-density crossbars create reference deployments; embedded macros create repeatable design wins; and only then can high-density or analog-compute architectures scale. Vendors that pursue all segments with the same commercialization model risk misallocating resources: IP support and qualification are decisive in embedded markets, while algorithm-hardware co-design and peripheral efficiency are decisive in compute-in-memory markets.

Memristor Market Regional Analysis

North America

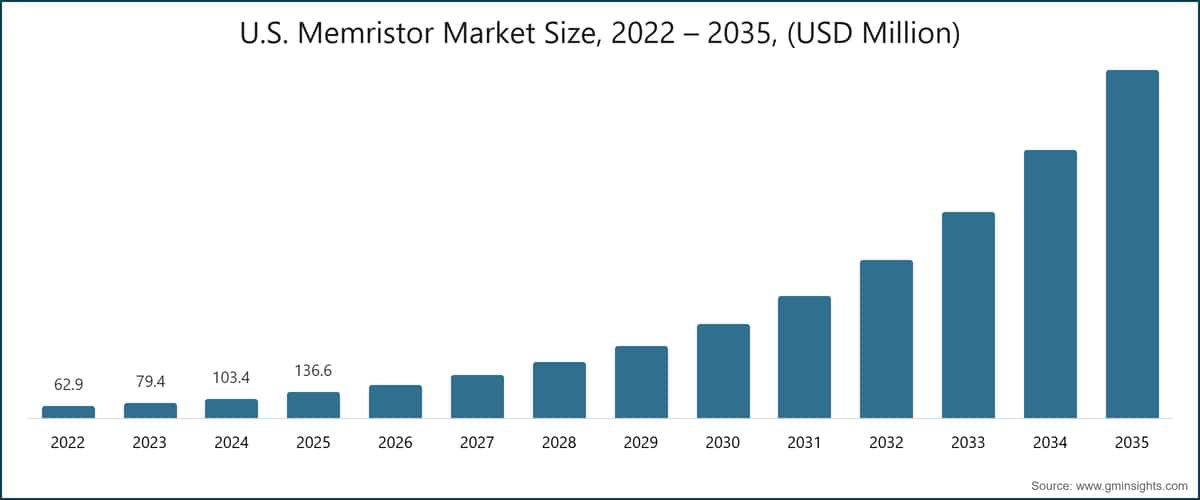

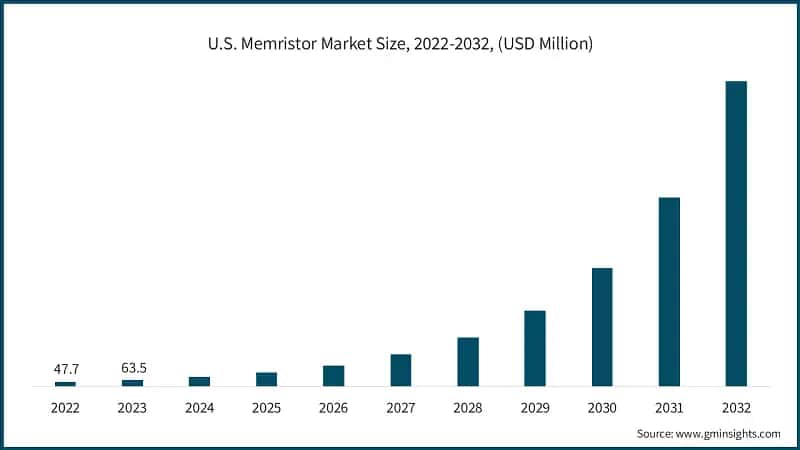

North America generates USD 156.3 million in 2025 and is projected to reach USD 2,097.4 million by 2035, at an approximately 29.7% CAGR. The U.S. grows from USD 136.6 million to USD 1,852.0 million, at approximately 29.8%, while Canada rises from USD 19.7 million to USD 245.4 million, at approximately 28.7%. The region combines AI-system developers, memory and IP suppliers, and government-backed semiconductor investment. Crossbar Inc. and Knowm Inc. are among the authorized North American participants, alongside Avalanche Technology Inc., Everspin Technologies Inc., Micron Technology Inc., and Western Digital Corporation. Everspin's IBM storage deployment shows how regional demand can begin with an enterprise qualification rather than a mass-market component cycle.^{[5]investor.everspin.com}

Europe expands from USD 104.3 million in 2025 to USD 1,288.9 million in 2035, at an approximately 28.6% CAGR. Germany rises from USD 30.0 million to USD 366.0 million; the UK from USD 22.0 million to USD 295.1 million; France from USD 20.0 million to USD 256.5 million; Italy from USD 12.8 million to USD 154.7 million; and Spain from USD 8.6 million to USD 101.8 million. Rest of Europe, including Russia, grows from USD 10.9 million to USD 114.7 million. Europe's automotive and industrial base favors embedded-memory insertion where qualification discipline can be a competitive advantage. STMicroelectronics is the authorized regional company in scope. The Chips Act provides a policy framework for strengthening the ecosystem, but commercial pull will still depend on customer-specific reliability and node requirements.^{[6]eur-lex.europa.eu}

Asia Pacific

Asia Pacific is projected to grow fastest, from USD 141.0 million in 2025 to USD 2,407.5 million in 2035, at an approximately 32.8% CAGR. China grows from USD 55.4 million to USD 1,006.3 million, at approximately 33.6%; India from USD 24.2 million to USD 505.6 million, at approximately 35.5%; Japan from USD 26.5 million to USD 433.4 million, at approximately 32.3%; South Korea from USD 21.9 million to USD 337.0 million, at approximately 31.4%; Australia from USD 4.7 million to USD 55.4 million, at approximately 28.0%; and Rest of APAC from USD 8.3 million to USD 69.8 million. Panasonic Corporation, RAMXEED, 4DS Memory Limited, SK hynix Inc., Toshiba Corporation, and TSMC are the authorized companies in scope.

The region's growth reflects the co-location of memory manufacturers, foundries, electronics assembly, and expanding AI and edge-device demand. The TetraMem-SK hynix demonstration is particularly relevant because it links a compute-in-memory architecture to a major memory manufacturer rather than a laboratory-only platform. India's higher forecast growth rate should be interpreted as an expansion from a smaller revenue base; its realization requires local design and electronics demand to translate into qualified device programs.

Latin America

Latin America increases from USD 18.9 million in 2025 to USD 170.2 million in 2035, at an approximately 24.5% CAGR. Brazil represents approximately 55% of the region, Mexico approximately 30%, and Argentina approximately 15%, based on ORCA-derived proportions anchored to the approved regional total. Those proportions imply approximate 2025/2035 values of USD 10.4 million/USD 93.6 million for Brazil, USD 5.7 million/USD 51.1 million for Mexico, and USD 2.8 million/USD 25.5 million for Argentina. Adoption is expected to concentrate in imported embedded components used by automotive, industrial, and connectivity equipment rather than in a large domestic advanced-memory manufacturing base.

Middle East & Africa

Middle East & Africa rises from USD 16.0 million in 2025 to USD 115.5 million in 2035, at an approximately 21.7% CAGR. Saudi Arabia grows from USD 4.8 million to USD 35.9 million, the UAE from USD 3.7 million to USD 29.6 million, South Africa from USD 3.2 million to USD 23.7 million, and Rest of MEA from USD 4.3 million to USD 26.3 million. The region's lower growth rate reflects its smaller advanced-semiconductor design and manufacturing footprint. Demand will be shaped principally by data-center, infrastructure, industrial, and imported electronics deployments, making availability of qualified parts and system integrators more important than local device innovation.

Europe's comparatively slower but substantial trajectory is shaped by automotive and industrial qualification cycles, where a new memory option must prove behavior over temperature, retention, and product lifetimes. Latin America and MEA remain more dependent on the cadence and availability of global component supply. Regional strategies should therefore be organized around qualification ecosystems: Asian foundry insertion for volume, North American system partners for compute and storage validation, and European automotive pathways for reliability-led applications.

Memristor Market Share & Competitive Landscape

The 2025 market is led by Crossbar Inc. at 17.2%, Knowm Inc. at 12.8%, Intel Corporation at 11.5%, IBM Corporation at 8.2%, and Samsung Electronics at 6.8%; other participants account for 43.5%. This distribution is consistent with a market in which IP ownership, prototype availability, process relationships, and large-company research programs coexist. Share is not a proxy for a uniform product category: a research-device supplier, an IP licensor, a persistent-memory vendor, and a semiconductor manufacturer monetize different parts of the value chain.

Crossbar Inc., Samsung Electronics, Intel Corporation, Knowm Inc., and IBM Corporation are the global key players in scope. Crossbar's DARIC platform is positioned around integrating ReRAM with secure processing, while Knowm's SDC crossbars provide commercially accessible research hardware. IBM's PCM work is concentrated on analog in-memory-computing device behavior, and Samsung and Intel bring manufacturing and advanced-architecture capabilities. Their competitive differentiation will depend on whether they can turn device physics into supported design flows and customer-qualified products.

North American companies in scope are Avalanche Technology Inc., Everspin Technologies Inc., Micron Technology Inc., and Western Digital Corporation. Asia Pacific participants are Panasonic Corporation, RAMXEED, 4DS Memory Limited, SK hynix Inc., Toshiba Corporation, and TSMC; STMicroelectronics represents the European scope, and Weebit Nano is the designated niche player/disruptor. The most consequential competitive contest is not simply for a cell specification. It is for foundry integration, characterization data, customer support, and the ability to absorb a multi-quarter qualification cycle. Weebit Nano's Texas Instruments license and 4DS Memory's Infineon design agreement exemplify the importance of partner-led validation.^{[7]weebit-nano.com [8]4dsmemory.com}

Recent Industry Developments

Weebit Nano licenses ReRAM technology to Texas Instruments - December 29, 2025

Weebit Nano announced a license agreement with Texas Instruments covering IP licensing, technology transfer, and design and qualification of Weebit ReRAM in TI's advanced embedded-processing nodes. The event creates a route for the technology into TI's customer base and is material because it couples IP to a production-oriented embedded process.

Everspin PERSYST 1 Gb STT-MRAM selected for IBM FlashCore Module 4 - April 30, 2024

Everspin announced that IBM selected its PERSYST EMD4E001G 1 Gb STT-MRAM for FlashCore Module 4. The product is specified with 2.7 GB/s read/write bandwidth at a DDR4 interface and instant non-volatility, making the announcement a concrete enterprise-storage deployment rather than a prospective technology claim.

4DS Memory enters a USD 4.5 million design agreement with Infineon - December 17, 2024

4DS Memory disclosed a 15-month, USD 4.5 million design agreement with Infineon for a custom PCMO ReRAM memory test chip, involving imec and a major Taiwanese foundry. The arrangement follows 4DS's reported 4.7 ns write-speed milestone and 20-nm process-tuning work.

TetraMem and SK hynix publish a joint memristor-based AI SoC - 2025

TetraMem and SK hynix reported a 65-nm memristor-based in-memory-computing SoC for depthwise convolution. The paper reported 21.3 TOPS/W at 100 MHz and approximately 100% weight utilization for the targeted depthwise layers.
