Glass Substrate Advanced Packaging Market Size & Share 2026-2035

Glass Substrate Advanced Packaging Market Size

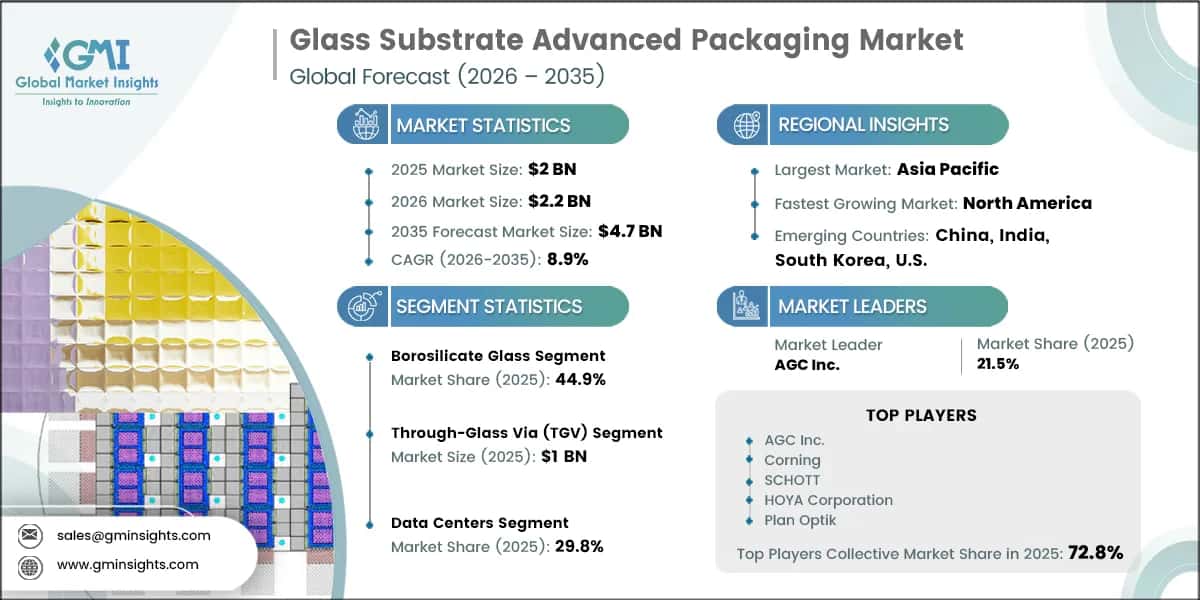

The global glass substrate advanced packaging market was valued at USD 2 billion in 2025. The market is expected to grow from USD 2.2 billion in 2026 to USD 3.2 billion in 2031 & USD 4.7 billion in 2035, at a CAGR of 8.9% during the forecast period according to the latest report published by Global Market Insights Inc.

The market is moving from a materials-evaluation phase toward selective production qualification, led by packages where organic cores struggle with dimensional stability, routing density, or high-frequency signal performance. Intel has stated that its glass-substrate approach can provide 10x greater interconnect density and 50% less pattern distortion than organic alternatives, while enabling substantially larger system-in-package formats. ^{[1]Intel Corporation, Intel Unveils Industry-Leading Glass Substrates to Meet Demand for More Powerful Compute, September 2023, newsroom.intel.com}

Glass changes the package design trade-off rather than simply replacing a conventional laminate. Its thermal expansion can be tailored closer to silicon, and its smooth, rigid surface supports fine redistribution-layer routing. These attributes matter when a package must connect multiple compute dies, high-bandwidth memory, and optical components without the warpage and routing penalties that increase with package area. The commercial addressable market will nevertheless be determined by the ability to form, metallize, inspect, and singulate through-glass vias (TGVs) consistently at panel scale, not by glass properties alone.

The practical competitive boundary is the manufacturing learning curve around TGVs and panel handling. Suppliers that can provide stable via metallization, low-defect panel processing, and credible reliability data will be better placed to secure design-ins than suppliers offering glass composition alone. That favors a market in which qualification evidence and co-development capacity can be as consequential as nominal substrate performance.

Key Drivers

AI/HPC package scaling. Glass becomes relevant when package routing and dimensional control constrain system design. Intel's glass-substrate program links the material to high-density, large-format packages and a stated objective of integrating 1 trillion transistors in a package by 2030. As additional dies and memory stacks are assembled in one package, the substrate must carry more power and signal connections without unacceptable distortion. This puts glass first into performance-sensitive sockets, where the package architecture can justify a more demanding manufacturing flow.

Fine-line routing and optical integration. A glass panel can serve as a stable base for dense lateral routing and, in certain designs, for combined electrical and optical structures. A review of glass substrates for co-packaged optics reports TGV+RDL structures with bandwidths up to 110 GHz and RDL densities above 500 lines/mm at 2 μm line/space; it also describes ion-exchanged waveguides with losses as low as 0.034 dB/cm. ^{[2]SPIE Advanced Photonics Nexus, Review of Glass Substrates for Co-Packaged Optics: Fabrication and Performance of Integrated Electro-Optical Structures, 2024, spiedigitallibrary.org} Those characteristics make glass relevant to designs that must keep high-speed electrical paths and optical alignment within the same package, rather than treating the substrate only as a mechanical carrier.

Thermal and warpage control. The value of CTE engineering is most apparent during assembly, where package warpage and die-to-substrate stress affect yield. Corning states that its advanced packaging carriers can reduce warpage by up to 40% versus organic carrier alternatives in applicable processes. ^{[3]Corning, Advanced Packaging Carriers, undated, corning.com} NEG reports packaging-glass formulations with CTE values of 6.1–8.9 ppm/°C and dielectric-loss tangent of 0.0002–0.0004 at 40 GHz. These properties support adoption in applications where fine-pitch attachment and high-frequency operation impose simultaneous mechanical and electrical requirements.

Panel-area economics. Glass offers a route to rectangular-panel processing rather than a wafer-only substrate model. AGC identifies 510×515 mm panels for its advanced-packaging TGV glass substrate. Larger usable substrate area can improve material utilization for expansive multi-die packages, but the economic gain depends on controlling defect density throughout drilling, metallization, and singulation. The cost case therefore strengthens as yields mature; it should not be assumed from panel dimensions alone.

Key Restraints

Manufacturing ecosystem maturity. Glass-core packaging requires a linked process sequence covering via formation, surface preparation, seed deposition, copper fill, planarization, fine-line build-up, and singulation. A single weak operation can offset the material's electrical advantage. AT&S identifies thin-glass handling, thermal-stress reliability, and inspection as industrialization challenges for glass-core substrates. TOPPAN's December 2025 pilot-line announcement, with commissioning targeted for July 2026, likewise indicates that major packaging participants are still building production-relevant process knowledge rather than operating a mature, standardized supply chain.

Fragility and TGV quality. TGV formation concentrates risk because cracks, voids, or poor metallization can turn a high-density design into a reliability liability. IEEE-published work on high-density glass interposers demonstrated double-sided copper filling of 20 μm, high-aspect-ratio TGVs, illustrating both the achievable geometry and the specialized process control required. The commercial constraint is not whether such features can be demonstrated; it is whether their yield can be reproduced across large panels and qualified over thermal cycling. Handling, inspection, and laser-based singulation add operational disciplines that many organic-substrate lines do not require.

The market should separate pilot-line announcements from operating capacity. TOPPAN's planned Ishikawa pilot line and AT&S's work toward industrialization are evidence of ecosystem formation, not proof of immediate volume output. This timing gap creates an opening for material suppliers, equipment partners, and OSATs that can jointly shorten the validation cycle, while it restrains adoption in price-sensitive applications that cannot absorb early yield risk.

Glass Substrate Advanced Packaging Market Segment Analysis

By Material Type

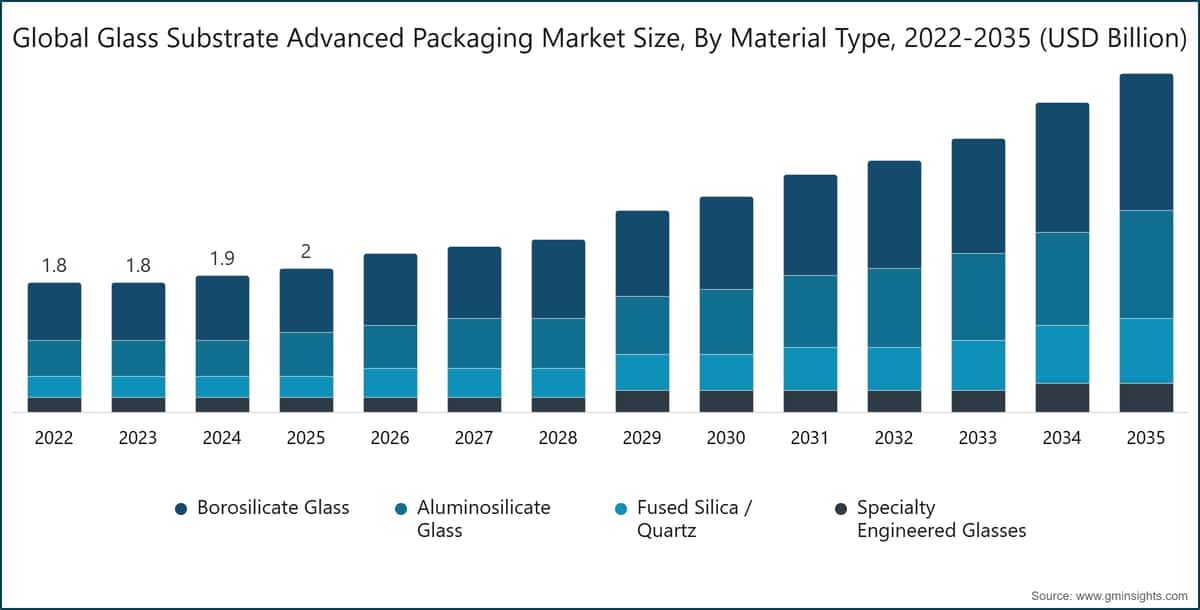

Borosilicate glass is the largest material segment, valued at USD 915.83 million in 2025 and projected to reach USD 1.94 billion by 2035, at approximately 7.94% CAGR. Its near-term position reflects availability, established processing familiarity, and a thermal-expansion profile suitable for many packaging configurations. The 20 μm TGV demonstration in borosilicate glass shows why it remains a practical development platform for dense interposer designs. ^{[4]IEEE Transactions on Components, Packaging and Manufacturing Technology, Double-Sided Copper Filling of Small Diameter, High-Aspect Ratio Through-Glass Vias in High-Density Glass Interposers, 2025, ieeexplore.ieee.org}

Aluminosilicate glass is the second-largest segment, expanding at approximately 9.71% CAGR from USD 585.34 million in 2025 to USD 1.46 billion in 2035. Its mechanical robustness and chemical resistance are useful where thin substrates and demanding assembly conditions increase handling risk. Corning's carrier portfolio positions engineered glass as a way to control warp in fan-out and 2.5D/3D process flows.

Fused silica/quartz is the fastest-growing material category, rising at approximately 10.28% CAGR from USD 340.53 million in 2025 to USD 898.30 million in 2035. SCHOTT's low-loss glass, specified with a dielectric constant of 4.0 and loss tangent of 0.0021 at 10 GHz, addresses high-speed digital and 5G/6G-related requirements. ^{[5]SCHOTT, SCHOTT Launches Low-Loss Glass to Advance Semiconductor Manufacturing, 2024, schott.com} In optical and mmWave applications, the performance premium can support specialized compositions where borosilicate's cost and familiarity are less decisive.

Specialty engineered glasses represent the smallest material segment, growing from USD 198.36 million in 2025 to USD 416.06 million in 2035 at approximately 7.79% CAGR. Their role is tied to narrow functional requirements, including low-alkali behavior, optical properties, or tailored bonding compatibility, rather than broad-volume substitution.

By Packaging Architecture Type

2.5D interposer packages are the largest architecture segment in 2025, at USD 894.48 million, but are projected to expand at the slowest rate, approximately 4.75% CAGR, reaching USD 1.41 billion in 2035. Established silicon-interposer flows retain a qualification advantage, so glass must win new designs through area, signal, or cost-performance benefits instead of relying on direct replacement of incumbent production lines.

3D-IC/chiplet packages grow at approximately 11.90% CAGR, from USD 586.91 million in 2025 to USD 1.79 billion in 2035. Their need for vertical power and signal routing makes them a natural application for glass cores and TGVs. Intel's disclosed glass test vehicle, incorporating three RDL layers and 75 μm TGVs at 20:1 aspect ratio, illustrates the architecture being developed for multi-die integration.

Fan-out wafer-level packages grow at approximately 7.98% CAGR, from USD 398.59 million in 2025 to USD 851.02 million in 2035. Here, glass can be adopted first as a carrier that improves process stability, providing a lower-risk entry point than a full glass-core conversion.

Co-packaged optics/photonics packages are the fastest-growing architecture, at approximately 15.14% CAGR, increasing from USD 160.07 million in 2025 to USD 661.91 million in 2035. The segment's growth reflects the convergence of optical-waveguide performance and high-bandwidth electrical routing in a single substrate platform.

By Interconnect Technology

TGV is the largest interconnect category, valued at USD 1.04 billion in 2025 and projected to reach USD 2.26 billion in 2035 at approximately 8.20% CAGR. It provides the vertical routing function that differentiates glass-core designs. The remaining commercial challenge is scalable, void-controlled copper fill at small diameters and high aspect ratios.

RDL is the slowest-growing interconnect category, rising at approximately 6.58% CAGR from USD 579.06 million in 2025 to USD 1.08 billion in 2035. It serves designs that require stable lateral routing but do not need full vertical penetration through the glass core.

Hybrid TGV+RDL is the fastest-growing interconnect category, growing at approximately 12.62% CAGR from USD 419.00 million in 2025 to USD 1.37 billion in 2035. Combining vertical vias with multilayer lateral routing aligns with multi-die and optical package requirements. TOPPAN's pilot-line scope includes glass cores and interposers alongside RDL technologies, showing that suppliers are developing these elements as a connected process stack.

By End-User Industry

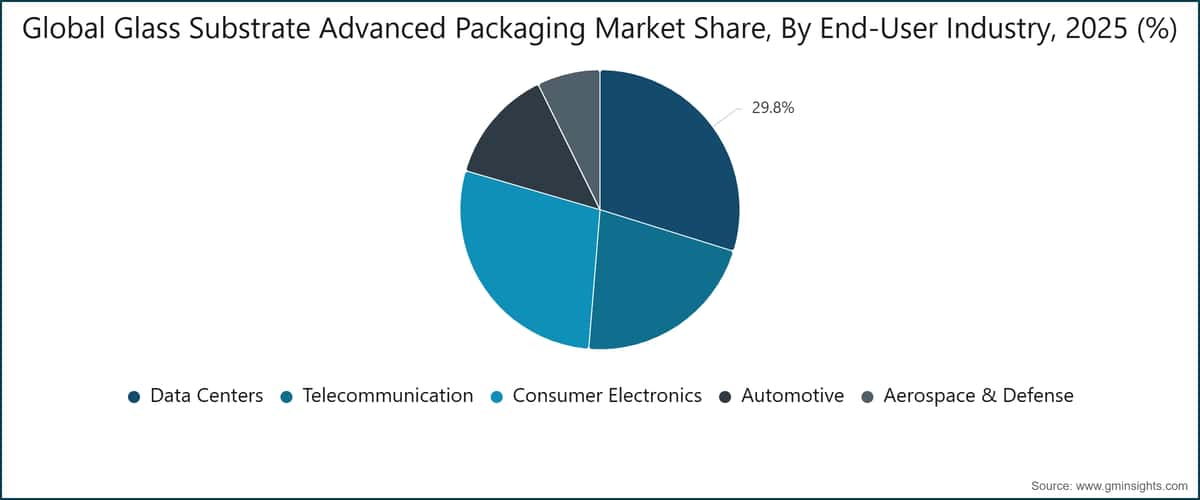

Data centers are the largest end-user segment, valued at USD 608.88 million in 2025 and forecast to reach USD 1.70 billion in 2035, at approximately 10.91% CAGR. Large AI packages create the most immediate commercial case because bandwidth, thermal behavior, and package size have direct system-level consequences. The U.S. Department of Commerce's preliminary terms with Absolics identified AI and HPC among the targeted applications for its Covington, Georgia facility.

Telecommunications grows at approximately 8.07% CAGR, from USD 439.40 million in 2025 to USD 945.58 million in 2035. Low-loss glass is relevant to high-frequency networking and radio-frequency applications, where signal attenuation can narrow the design margin.

Consumer electronics is the third-largest segment, rising from USD 574.35 million in 2025 to USD 1.04 billion in 2035 at approximately 6.19% CAGR. Cost-sensitive device categories are more likely to adopt glass first in carrier applications than in full glass-core packages until panel-scale yields and costs are better established.

Automotive is the second-fastest-growing end-user segment, at approximately 11.66% CAGR, expanding from USD 268.35 million in 2025 to USD 803.74 million in 2035. Its adoption case rests on thermal stability and high-frequency performance, but extended reliability qualification makes timing more uncertain than in data-center programs. Aerospace and defense is the smallest segment, growing at approximately 4.75% CAGR from USD 149.08 million in 2025 to USD 236.40 million in 2035; its high-reliability requirements support technical interest but lengthen procurement and validation cycles.

Material selection will fragment alongside package function. Borosilicate retains the broadest near-term volume position, whereas fused silica/quartz grows faster because high-frequency and optical use cases value dielectric performance over material familiarity. Suppliers that can pair composition control with reliable TGV and RDL integration will be positioned for the premium tier; those limited to panel supply may capture less of the package-level value creation.

Glass Substrate Advanced Packaging Market Regional Analysis

Asia Pacific

is the largest regional market, valued at USD 982.99 million in 2025, USD 1.06 billion in 2026, and USD 2.30 billion in 2035, at approximately 9.01% CAGR. Japan provides a dense base of specialty-glass and packaging participants, while Taiwan and South Korea bring deep foundry and OSAT linkages. TOPPAN's Ishikawa pilot-line program adds a Japanese route for developing large-glass interposers and glass cores. ^{[6]TOPPAN Holdings Inc., TOPPAN to Install Pilot Line for Advanced Semiconductor Packaging at Ishikawa Plant, December 2025, holdings.toppan.com} Japan is valued at USD 170.13 million in 2025 and USD 346.08 million in 2035; South Korea rises from USD 151.99 million to USD 392.23 million, and China from USD 339.89 million to USD 842.14 million. India is the fastest-growing country market, increasing from USD 129.30 million in 2025 to USD 392.23 million in 2035 at approximately 11.80% CAGR, as packaging capacity develops from a smaller base.

North America

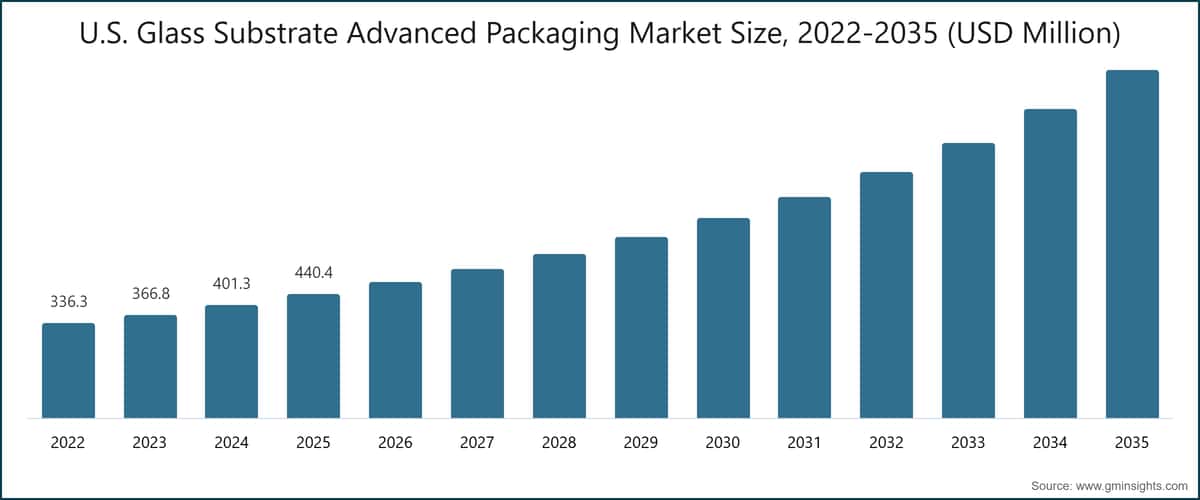

is valued at USD 496.52 million in 2025, USD 545.26 million in 2026, and USD 1.36 billion in 2035, at approximately 10.70% CAGR. The United States accounts for USD 440.37 million in 2025 and is projected to reach USD 1.23 billion in 2035. In May 2024, the Department of Commerce announced preliminary terms for up to USD 75 million in CHIPS Act funding for Absolics' glass-substrate facility in Covington. ^{[7]U.S. Department of Commerce, Biden-Harris Administration Announces Preliminary Terms with Absolics to Support Development of Glass Substrate Technology for Semiconductor Advanced Packaging, May 2024, commerce.gov} NIST later recorded a USD 100 million CHIPS Act R&D award for Absolics in December 2024. These awards connect materials supply, tools, and package R&D within a domestic commercialization pathway. Canada grows from USD 56.14 million in 2025 to USD 122.55 million in 2035.

Europe

reaches USD 360.93 million in 2025, USD 383.31 million in 2026, and USD 709.19 million in 2035, representing approximately 7.08% CAGR. Germany, at USD 90.79 million in 2025 and USD 205.66 million in 2035, benefits from SCHOTT's specialty-glass base. SCHOTT established a dedicated semiconductor division in August 2024 to support high-end glass products and services for semiconductor applications. The Netherlands grows from USD 71.46 million in 2025 to USD 182.97 million in 2035, supported by its precision equipment ecosystem. AT&S is developing glass-core capabilities at Leoben, linking European substrate manufacturing with prototype and industrialization work. The UK rises from USD 50.53 million to USD 99.29 million, while France increases from USD 44.42 million to USD 70.92 million.

Latin America

is valued at USD 109.38 million in 2025, USD 114.74 million in 2026, and USD 184.39 million in 2035, at approximately 5.41% CAGR. Brazil grows from USD 41.06 million to USD 66.38 million, and Mexico from USD 38.70 million to USD 73.76 million. The region is principally an electronics and infrastructure demand center rather than a primary glass-substrate manufacturing base. Mexico's integration with North American electronics supply chains supports its higher growth rate relative to Brazil.

Middle East & Africa

is the smallest regional market, at USD 95.88 million in 2025, USD 95.28 million in 2026, and USD 165.48 million in 2035, at approximately 6.33% CAGR. The slight 2026 decline indicates the sensitivity of the region's near-term demand to the timing of data-center and digital-infrastructure projects. The UAE rises from USD 28.17 million in 2025 to USD 56.26 million in 2035, Saudi Arabia from USD 25.37 million to USD 46.33 million, and South Africa from USD 16.82 million to USD 26.48 million.

Regional opportunities therefore differ by commercial role. North America offers a route to localized qualification and supply-chain resilience; Japan and the wider Asia Pacific offer materials and packaging ecosystem depth; Europe is positioned around specialized glass and equipment-adjacent know-how. India's 11.80% growth rate should be read as packaging-demand expansion from an emerging base, not as evidence that domestic glass-substrate capacity has already reached scale. Suppliers entering Latin America or Middle East & Africa should also plan for demand tied more to electronics deployment and project timing than to local substrate fabrication.

Glass Substrate Advanced Packaging Market Share & Competitive Landscape

The supply base is moderately concentrated. AGC holds an estimated 21.5% of the market in 2025, followed by Corning at 18.7%, SCHOTT at 15.4%, HOYA Corporation at 10.7%, and Plan Optik at 6.5%. Competitive advantage combines glass chemistry, panel quality, TGV capability, process-integration partnerships, and access to customer qualification programs.

AGC Inc. combines TGV glass substrates with large-panel capability. Its published advanced-packaging product references 510×515 mm panels and TGV structures for semiconductor packages. ^{[8]AGC Inc., TGV Glass Substrate for Advanced Packaging, undated, agc.com} Corning competes through engineered packaging carriers and warp-management capability, particularly in fan-out and 2.5D/3D process applications. SCHOTT is building dedicated semiconductor-market capability and has introduced low-loss glass for high-frequency packaging conditions. ^{[9]SCHOTT, Advancing Semiconductors for the Age of AI: SCHOTT Reaches a Strategic Milestone with the Founding of a Specialized Division, August 2024, schott.com} HOYA Corporation contributes precision-glass and specialty-composition capabilities relevant to semiconductor-adjacent applications.

Intel Corporation is primarily a demand-side architecture and ecosystem catalyst rather than a merchant glass-substrate supplier. Its glass program provides performance targets that influence supplier development priorities. Absolics is strategically important in North America because its Covington project is tied to CHIPS Act manufacturing and R&D support. AT&S provides a substrate-maker pathway from prototypes to industrialization, while TOPPAN is establishing pilot-line capability in Japan.

NEG, Nippon Sheet Glass Co., Ltd., Ohara Inc., and Shyawei Optronics extend Asia Pacific's specialty-glass and customer-evaluation base. Plan Optik supplies structured glass wafers and interposers in Europe. Mosaic Microsystems serves niche North American TGV and interposer requirements, while Avanstrate Inc. brings non-alkali glass formulations relevant to semiconductor packaging environments. Their opportunity is to turn specialized material or wafer capability into repeatable, qualified packaging supply as larger programs move beyond pilot scale.

Recent Industry Developments

May 2024 - CHIPS Act preliminary terms for Absolics. The U.S. Department of Commerce announced preliminary terms for up to USD 75 million in direct funding to support Absolics' Covington, Georgia glass-substrate facility for advanced semiconductor packaging.

August 2024 - SCHOTT creates a semiconductor division. SCHOTT announced a specialized semiconductor division focused on high-end glass products and services, establishing a dedicated organizational route for customer sampling and tailored development.

August 2024 - SCHOTT launches low-loss glass. SCHOTT introduced low-loss glass for semiconductor manufacturing and high-frequency applications, specifying a dielectric constant of 4.0 and a loss tangent of 0.0021 at 10 GHz.

December 2024 - Absolics receives CHIPS Act R&D award. NIST recorded a USD 100 million CHIPS Act award to Absolics for R&D connected to a glass-core advanced-packaging ecosystem in Covington.

October 2025 - AT&S outlines an industrialization path. AT&S described its glass-core-substrate work as moving from R&D development toward platform technology, with attention to AI/HPC, photonics, and high-frequency applications.

December 2025 - TOPPAN announces Ishikawa pilot line. TOPPAN announced installation of an advanced-packaging pilot line at its Ishikawa Plant, with July 2026 commissioning targeted for work including glass interposers and glass cores.
