GaN Power Transistors Market Size
The GaN power transistors market was valued at USD 511.3 million in 2025, is estimated at USD 667.8 million in 2026, and is projected to reach USD 8 billion by 2035, expanding at approximately 31.8% CAGR from 2026 to 2035.
GaN Power Transistors Market Key Takeaways
Market Leader: Infineon Technologies led with over 25% market share in 2025.
Leading Players: Top 5 players in this market include Infineon Technologies, Navitas Semiconductor, Onsemi, Texas Instruments, STMicroelectronics, which collectively held a market share of 77% in 2025.
GaN is moving beyond its original role in compact consumer chargers because high switching frequency, low switching loss, and the absence of reverse-recovery behavior can reduce magnetics and cooling requirements in power conversion. The commercial opportunity is therefore tied less to replacing a single silicon transistor than to redesigning converters around smaller passive components, tighter thermal envelopes, and higher power density. The transition is most advanced in the 201-650 V range, while automotive and grid-adjacent uses depend on qualification evidence, packaging, and voltage-roadmap progress.
Manufacturing scale is becoming a material competitive variable. Innoscience and STMicroelectronics entered a March 2025 technology-development and manufacturing agreement that gives ST access to Innoscience's 8-inch GaN capacity in China and permits Innoscience to use ST manufacturing capacity outside China [1]STMicroelectronics, newsroom.st.com. Larger-diameter GaN-on-silicon production can lower die cost only when yield, epitaxy quality, and device reliability scale with wafer area; capacity announcements alone do not eliminate those execution risks.
GMI Analyst View
We estimate that the market's move from USD 667.8 million in 2026 to USD 7,990.7 million in 2035 will be governed by the conversion of device-level efficiency into system-level savings. Consumer adapters established the initial volume base, but automotive chargers and server power supplies offer a larger economic reward when GaN enables a smaller magnetics stack, lower cooling burden, or a power-density improvement that changes enclosure design.
The key tension is between manufacturing cost reduction and application qualification. Eight-inch supply expansion can improve the economics of mainstream 650 V products, yet automotive and high-power industrial programs cannot adopt solely on the basis of lower die cost. They require evidence that dynamic performance, package thermal behavior, and long-duration reliability remain stable under their operating mission profiles. Suppliers that pair scalable wafer access with application-specific reference designs are better positioned than suppliers offering standalone devices without comparable integration support.
Key Drivers
Consumer charging remains the most immediate volume driver because USB-C Power Delivery raises the power levels that must fit inside portable adapter form factors. EPC introduced 100 V and 50 V eGaN products for high-density power conversion and USB-C applications at APEC 2024, demonstrating how low-voltage GaN is being positioned around footprint and power-density constraints rather than only device substitution. The commercial consequence is that charger OEMs can pursue higher wattage and multi-port designs without proportionally increasing enclosure size.
Data-center power conversion creates a different demand mechanism. At higher server-rack loads, conversion losses become a thermal and operating-cost issue rather than a marginal efficiency improvement. Navitas introduced an 8.5 kW GaN-and-SiC power supply for AI data centers in November 2024, reporting 98% peak efficiency in an Open Rack v3 format [2]Navitas Semiconductor, navitassemi.com. Such platforms create demand for GaN where switching frequency and efficiency can reduce the burden on passive components and cooling infrastructure at the power-supply level.
Automotive demand is emerging through onboard chargers, DC-DC converters, and auxiliary electronics before broad traction-inverter penetration. Changan disclosed a commercial GaN-based onboard-charger implementation using high-power GaN IC technology, while Infineon has demonstrated an 11 kW, 800 V onboard-charger reference design using GaN devices [3]Infineon Technologies, infineon.com. These programs matter because vehicle qualification can create durable design wins, although the automotive revenue ramp will remain slower than consumer adoption where validation cycles are shorter.
Public support for domestic semiconductor production can reduce geographic concentration risk, but it does not itself create qualified GaN capacity. The U.S. CHIPS and Science Act authorized substantial incentives for semiconductor manufacturing and research, including programs relevant to wide-bandgap technologies. For power-device buyers, the practical implication is a potentially broader supplier base over time, subject to successful execution of fabrication, packaging, and qualification programs.
Key Restraints
High-frequency operation can shift heat into smaller die and package footprints. In high-power converters, localized temperature rise, thermal-interface resistance, package parasitics, and layout-dependent switching behavior can constrain the power density that a GaN design realizes in service. Research on wide-bandgap thermal management identifies thermal interfaces, substrate choice, and advanced cooling architecture as critical limits in high-density GaN and SiC systems. The result is that a theoretically smaller converter may require more demanding package, PCB, and cooling co-design than a conventional silicon alternative.
Automotive qualification adds a separate timing constraint. AEC-Q101 certification is important but does not eliminate the need for vehicle-specific mission-profile validation, particularly in high-voltage applications. Infineon's October 2025 release of its AEC-Q101-qualified 100 V CoolGaN automotive family illustrates that qualification is advancing first in lower-voltage vehicle functions such as DC-DC conversion and zone-control systems. Higher-voltage onboard-charger and traction applications face a longer pathway because OEMs must validate switching behavior, temperature cycling, and lifetime performance in the complete power stage.
GMI Analyst View
Our analysis indicates that thermal engineering and qualification timing will shape the market mix more than they alter the long-term growth direction. The automotive segment rises from USD 101.3 million in 2025 to USD 1,757.9 million in 2035, implying approximately 33% CAGR, but that expansion is unlikely to be evenly distributed across all vehicle power functions. Lower-voltage auxiliary and DC-DC uses can enter earlier because their electrical and thermal demands are more manageable than high-power traction applications.
The commercial advantage will accrue to suppliers that reduce validation work for customers. Integrated protection, reference designs, qualified packages, and documented thermal behavior can shorten engineering cycles more effectively than a marginal improvement in transistor specifications alone. Conversely, a supplier that offers high-performance die without a credible package and reliability envelope may encounter slow adoption in safety-critical applications even if its device economics are attractive.
GaN Power Transistors Market Segment Analysis

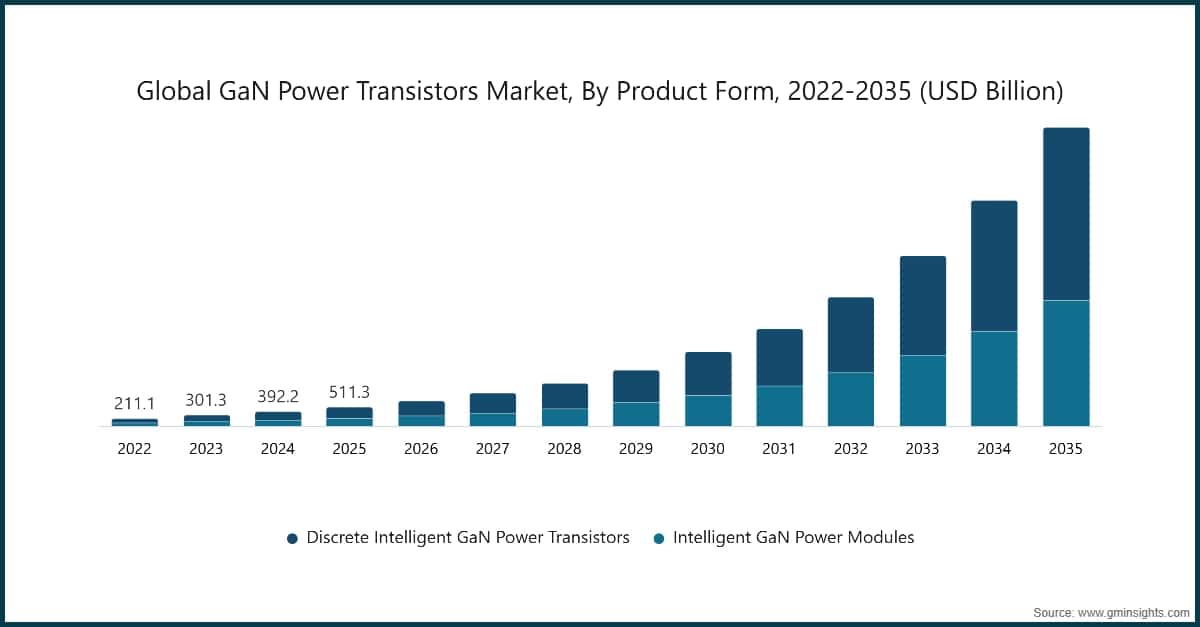

By Product Form
Discrete intelligent GaN power transistors generate USD 307.4 million in 2025 and are projected to reach USD 4,634.6 million by 2035. Their principal advantage is design flexibility: OEMs can select a gate driver, controller, protection architecture, and package configuration that fit a specific converter topology. That flexibility is valuable in high-volume adapters, server power supplies, and industrial designs where engineering teams already possess switching-layout expertise.
Intelligent GaN power modules increase from USD 203.9 million in 2025 to USD 3,356.1 million in 2035. Modules shift part of the integration and qualification burden to the device supplier by combining power devices with driver, protection, sensing, or thermal functions. Their value proposition is strongest when system integrators prioritize time to qualification and repeatable electromagnetic compatibility performance over maximum component-level design freedom. VisIC has positioned D3GaN module technology for high-power automotive inverter applications, including partnerships intended to advance automotive-grade module packaging [4]VisIC Technologies, visic-tech.com.
By Wafer Size
The 4-inch wafer category rises from USD 190.6 million in 2025 to USD 3,036.5 million by 2035. This category remains relevant where specialized substrates, high-reliability requirements, or non-mainstream device architectures justify a higher manufacturing-cost base.
The 6-inch category increases from USD 105.9 million to USD 1,598.1 million. It remains an established platform for GaN-on-silicon production and will continue to support qualified product lines, but it faces a structural cost challenge as larger wafers mature.
The 8-inch category expands from USD 63.4 million to USD 879.0 million. The STMicroelectronics-Innoscience agreement makes the segment strategically significant because it connects a major IDM with established 8-inch GaN manufacturing capacity. Cost benefits, however, depend on usable yield and stable electrical performance rather than wafer diameter alone.
The 12-inch category advances from USD 151.4 million to USD 2,477.1 million. Its projected expansion reflects the importance of compatibility with large-scale semiconductor manufacturing infrastructure. Commercial success will depend on whether process integration can achieve acceptable defectivity, breakdown behavior, and cost at the power-device level.
By Voltage Rating
The ≤200 V category grows from USD 102.7 million in 2025 to USD 1,438.3 million by 2035. It serves point-of-load conversion, low-voltage automotive power, USB-C PD, wireless power, and other applications where switching speed and compactness are particularly valuable. EPC's APEC 2024 product launches illustrate active competition in this low-voltage, high-density segment.
The 201-650 V category increases from USD 180.4 million to USD 2,876.7 million, retaining the largest 2025 revenue position. It is the core commercial range for adapters, server power, telecom rectifiers, and many onboard-charger architectures. Its scale makes it the most exposed to wafer-cost competition and the most likely beneficiary of maturing 8-inch capacity.
The 651-1,200 V category rises from USD 152.6 million to USD 2,796.7 million. This range addresses higher-power charging, industrial conversion, renewable-energy interfaces, and multilevel converter architectures. Power Integrations has developed GaN-enabled products extending into high-voltage power-conversion applications, including 1,250 V and 1,700 V product architectures [5]Power Integrations Inc., sec.gov.
The >1,200 V category advances from USD 75.6 million to USD 879.0 million. Its opportunity is tied to high-voltage industrial, renewable, and grid-related uses, but the technical demands of voltage blocking, package insulation, thermal performance, and reliability make this a more specialized market than mainstream 650 V power conversion.
By Functional Integration Level
Gate Driver-Integrated GaN transistors grow from USD 14.2 million in 2025 to USD 171.9 million by 2035. Integration can reduce gate-loop parasitics and simplify high-speed switching design, which is especially useful when an OEM seeks to limit layout-sensitive behavior.
Protection and sensing-integrated GaN transistors rise from USD 6.7 million to USD 67.3 million. Their addressable value lies in reducing the external circuitry needed to manage over-current, temperature, and fault conditions.
Fully intelligent GaN devices increase from USD 10.4 million to USD 134.5 million. They remain a small portion of current revenue, but their proposition is differentiated: they can lower the design and validation burden for OEMs that want a managed power stage rather than a discrete transistor platform. Navitas' GaNFast approach exemplifies the strategy of integrating drive and protection functions into a GaN power IC.
By Application

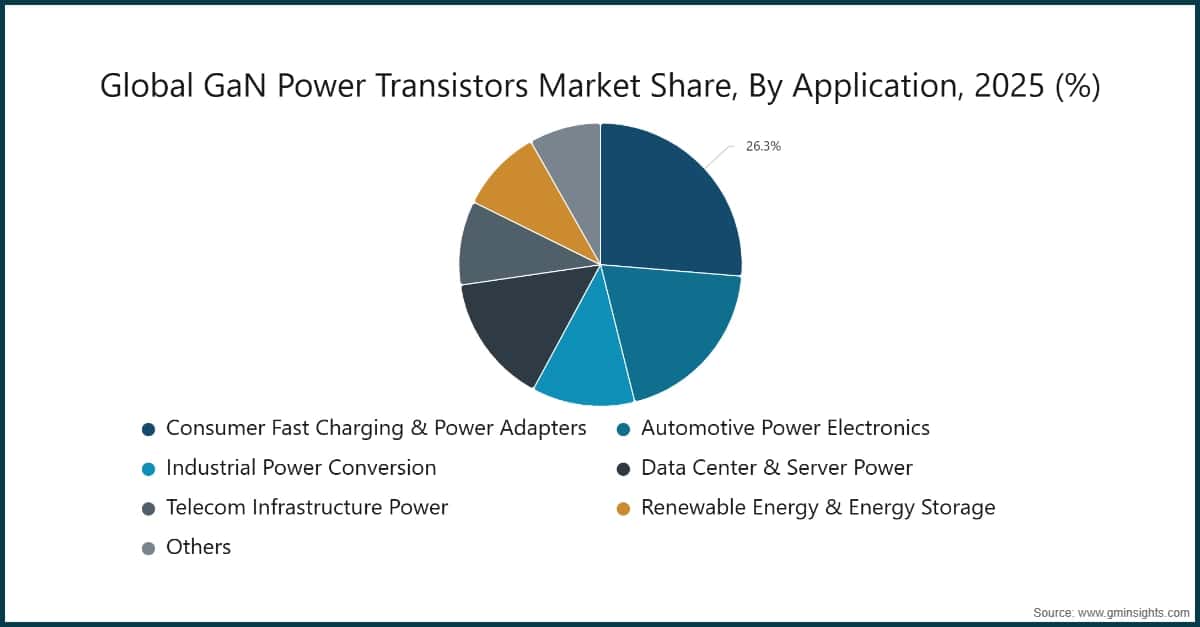

Consumer fast charging and power adapters increase from USD 134.4 million in 2025 to USD 2,157.5 million by 2035. Higher USB-C PD power levels make GaN especially useful when charger volume and thermal performance are commercial differentiators. The segment benefits from rapid consumer-product cycles, which allow new power architectures to reach volume more quickly than automotive designs.
Automotive power electronics increase from USD 101.3 million to USD 1,757.9 million. Onboard chargers, DC-DC converters, and low-voltage vehicle systems are likely to provide earlier volume than traction inverters. The segment's upside is substantial because a qualified vehicle platform can sustain demand for years, but its timing remains sensitive to OEM validation schedules.
Industrial power conversion grows from USD 60.3 million to USD 902.9 million. Motor drives, UPS systems, rectifiers, and welding equipment can benefit from smaller magnetics and higher switching frequency, but adoption is contingent on a credible system-level cost case and reliable thermal performance.
Data center and server power rises from USD 75.7 million to USD 1,142.7 million. AI-oriented power-supply requirements make high-efficiency, high-density conversion increasingly valuable, as illustrated by Navitas' 8.5 kW platform. This application can reward suppliers that combine GaN devices with reference architectures suited to high-power server standards.
Telecom infrastructure power increases from USD 49.1 million to USD 695.2 million. The demand case rests on compact, efficient rectification and conversion in space-constrained network equipment.
Renewable energy and energy storage grows from USD 48.5 million to USD 719.2 million. Low-voltage optimization, battery interfaces, and increasingly demanding conversion stages create opportunities, although high-voltage uses must overcome the same packaging and reliability hurdles present in industrial systems.
Other applications increase from USD 42.0 million to USD 615.3 million. Aerospace, defense, medical, and specialized power systems can accept higher device cost when low mass, high power density, or operating performance has substantial system value.
GMI Analyst View
Our assessment suggests that the segment mix will be determined by the customer's tolerance for engineering complexity. Discrete intelligent GaN devices hold approximately 60.1% of 2025 market revenue because they allow experienced power designers to optimize the whole converter. Integrated devices and modules address the opposite requirement: a customer can trade some device-level flexibility for shorter development and qualification cycles.
The 201-650 V category, at USD 180.4 million in 2025, remains the market's main scale platform because it connects consumer charging, server power, telecom, and established automotive power architectures. Higher-voltage categories can create strategically important design wins, but their revenue conversion depends on packaging, reliability, and topology choices that are materially different from those governing a 65 W adapter. This divergence favors portfolios that combine high-volume 650 V products with specialized high-voltage offerings rather than treating all GaN demand as one undifferentiated market.
GaN Power Transistors Market Regional Analysis
North America
North America grows from USD 146.0 million in 2025 to USD 2,397.2 million by 2035. The region's demand is supported by hyperscale computing, power-semiconductor design activity, and policy efforts to broaden domestic semiconductor capacity. The U.S. is analytically estimated to represent approximately 85-90% of regional revenue, with Canada accounting for the remainder. This estimate should be interpreted as a regional allocation rather than a separately reported country-market measurement.
Navitas Semiconductor, Wolfspeed, Efficient Power Conversion, Power Integrations, Texas Instruments, Onsemi, and Infineon's North American operations place the region at the center of GaN design, high-density server power, and power-management innovation. The CHIPS framework may improve supply-chain resilience, but customer qualification and production yield will determine whether policy support becomes commercially available power-device capacity [6]National Institute of Standards and Technology, nist.gov.
Europe
Europe advances from USD 90.3 million in 2025 to USD 1,224.4 million by 2035. Germany rises from USD 26.1 million to USD 361.9 million, the UK from USD 18.9 million to USD 273.6 million, France from USD 13.6 million to USD 178.2 million, Italy from USD 11.6 million to USD 149.8 million, and Spain from USD 8.1 million to USD 99.4 million.
The region's automotive and industrial equipment base makes qualification and system-integration capability particularly important. Germany's power-electronics and automotive supply chain supports early adoption in onboard charging and industrial conversion, while Italy and Spain provide demand linked to industrial automation and renewable-power systems. Infineon, STMicroelectronics, and Nexperia are important regional suppliers because their automotive and industrial customer relationships can support long design-in cycles.
Asia Pacific
Asia Pacific remains the largest regional market, increasing from USD 226.9 million in 2025 to USD 3,835.5 million by 2035. China expands from USD 90.8 million to USD 1,679.1 million, Japan from USD 56.6 million to USD 827.0 million, South Korea from USD 31.4 million to USD 499.2 million, India from USD 18.8 million to USD 433.0 million, and Australia from USD 13.4 million to USD 187.9 million.
China combines consumer-electronics manufacturing demand with a meaningful position in 8-inch GaN-on-silicon production. The agreement between STMicroelectronics and Innoscience reinforces the region's importance not only as a demand center, but also as a manufacturing partner for global device suppliers. Japan and South Korea add industrial, automotive, and electronics-system demand, while India's projected growth reflects a smaller base and increasing need for power conversion in electronics, mobility, and data infrastructure.
Latin America
Latin America increases from USD 16.8 million in 2025 to USD 159.8 million by 2035. Mexico rises from USD 7.9 million to USD 78.3 million, and Brazil from USD 6.3 million to USD 60.7 million. Argentina is analytically estimated as the residual regional balance at approximately USD 2.6 million in 2025 and approximately USD 20.8 million in 2035.
Regional demand is concentrated in imported power electronics, automotive manufacturing, data-center infrastructure, and industrial conversion. Mexico's manufacturing integration with North American automotive and electronics supply chains can accelerate adoption where GaN is specified in globally designed power platforms. Brazil's larger industrial base supports demand, though deployment will remain dependent on local equipment investment and import economics.
Middle East and Africa
The Middle East and Africa market grows from USD 31.3 million in 2025 to USD 373.7 million by 2035. Saudi Arabia increases from USD 9.0 million to USD 113.4 million, the UAE from USD 7.3 million to USD 95.8 million, and South Africa from USD 6.0 million to USD 66.8 million.
Data-center power infrastructure, telecom equipment, renewable-energy conversion, and industrial electrification are the principal routes to adoption. The region is less likely to determine the pace of device innovation, but it can become a material destination for qualified server-power and power-conversion platforms as digital and energy infrastructure expands.
GMI Analyst View
We expect Asia Pacific to retain its leading position because it combines USD 226.9 million of 2025 demand with the manufacturing and OEM ecosystems that can shorten the feedback loop between device supply and product design. China's rise to USD 1,679.1 million by 2035 is particularly consequential because local scale can affect both the availability and price discipline of mainstream GaN-on-silicon devices.
North America and Europe will compete on a different basis. Their strategic value lies in hyperscale power demand, automotive qualification, advanced packaging, and attempts to diversify semiconductor supply. The risk for regional buyers is that policy-backed capacity may not align with the voltage classes, package formats, and reliability qualifications required by their power platforms. Procurement strategies will therefore need to assess qualified supply by application, rather than treating regional fabrication announcements as interchangeable capacity.
GaN Power Transistors Market Share & Competitive Landscape
Competition combines large power-semiconductor suppliers, GaN specialists, manufacturing-focused entrants, and niche automotive developers. The most important competitive distinctions are voltage coverage, wafer access, integration capability, automotive qualification, package technology, and the ability to support customers with application-specific designs.
Infineon Technologies combines broad power-semiconductor reach with CoolGaN products and automotive customer access. Its October 2025 release of AEC-Q101-qualified 100 V CoolGaN transistors positions the company initially in vehicle auxiliary and DC-DC functions, with a stated roadmap toward higher-voltage automotive applications.
Texas Instruments participates through integrated GaN power-stage products for high-efficiency power conversion. Its integrated-driver approach is relevant where designers seek to control high-speed switching parasitics while reducing external gate-drive complexity.
STMicroelectronics has strengthened its manufacturing position through the March 2025 agreement with Innoscience. The arrangement can provide 8-inch GaN access and geographic manufacturing flexibility, although commercial benefit will depend on technology transfer, product qualification, and customer adoption.
Power Integrations Inc differentiates through PowiGaN integration within its InnoSwitch and InnoMux product families. Its high-voltage roadmap, including 1,700 V GaN-related product architecture, targets applications where conventional 650 V GaN portfolios have limited relevance.
Navitas Semiconductor focuses on GaN power IC integration for consumer, data-center, and emerging automotive applications. Its 8.5 kW AI data-center power platform demonstrates a strategy centered on high-density system architectures rather than commodity discrete devices.
Wolfspeed remains most relevant through wide-bandgap intellectual property, materials capability, and specialist high-voltage technology. Within mainstream GaN power-transistor competition, its role is more indirect than that of suppliers selling broad 650 V GaN portfolios.
Efficient Power Conversion (EPC) is concentrated in enhancement-mode GaN FETs across low- and medium-voltage power applications. Its compact device offerings and reference designs support consumer charging, robotics, lidar, and specialized power systems [7]Efficient Power Conversion Corporation, epc-co.com.
VisIC Technologies is focused on automotive and high-power GaN through D3GaN technology. Its collaboration with AVL on GaN inverter development reflects an attempt to establish GaN in vehicle propulsion and high-power conversion applications where validation demands are substantial.
