Spin-Transfer Torque MRAM (STT-MRAM) Market Size & Share 2026-2035

Spin-Transfer Torque MRAM (STT-MRAM) Market Size

The global spin-transfer torque MRAM (STT-MRAM) market was valued USD 2.3 billion in 2025. The market is expected to grow from USD 2.7 billion in 2026 to USD 7 billion in 2031 & USD 15.5 billion in 2035, at a CAGR of 21.4% during 2026–2035.

STT-MRAM stores data by changing the relative magnetic orientation of layers in a magnetic tunnel junction, rather than by retaining electrical charge. That architecture combines non-volatility with fast access and makes the technology relevant where code, calibration data, or system state must survive power loss without the erase-and-rewrite limitations of embedded Flash ^{[1]IBM Research, Spin-Transfer Torque Magnetoresistive Random Access Memory Technology Status and Future Directions, 2022, research.ibm.com}.

Commercial demand is increasingly concentrated in embedded MRAM (eMRAM), which is integrated as a macro within a system-on-chip rather than sold as a discrete memory device. eMRAM benefits from the loss of a cost-effective embedded Flash path at more advanced logic nodes, where the high-voltage devices and process additions required by Flash become difficult to accommodate. GlobalFoundries introduced production-ready eMRAM on its 22FDX platform for IoT and automotive applications in 2020, illustrating the transition from laboratory qualification to a foundry-supported design option.

Automotive electronics, industrial controllers, and edge devices create the most direct fit because they combine high rewrite frequency with demanding retention and temperature requirements. A 2024 automotive-oriented STT-MRAM study reported retention beyond 10 years at 125°C, endurance of 1 × 10^12 cycles, and sub-1 ppm bit-error-rate performance under its test conditions ^{[2]IOP Publishing / Journal of Semiconductors, Achieving over 95% yield of sub-1 ppm BER with retention over 10 years at 125°C and endurance of 1 × 10^12 cycles towards automotive non-volatile RAM applications, 2024, iopscience.iop.org}. These characteristics can reduce dependence on separate backup-power arrangements or lower-endurance non-volatile memory in designs where field updates and persistent event logging are integral to system operation.

The technical value proposition is strongest where endurance, retention, and low standby-power requirements coexist. Automotive qualification data supports the relevance of STT-MRAM for demanding use cases, but qualification also raises switching costs once an eMRAM macro, process design kit, and reliability evidence are incorporated into a vehicle or industrial controller program. Foundries with proven process integration and customers with completed validation programs are consequently positioned to capture a disproportionate share of embedded demand, while discrete-device suppliers retain a more specialized role in applications that require standalone non-volatile memory.

The market assessment covers global STT-MRAM demand from 2022 through 2035, using 2025 as the base year. Scope includes standalone STT-MRAM and embedded STT-MRAM; hardware products and IP & design services; low-density, medium-density, and high-density devices; mature, mid-level, and advanced technology nodes; and applications spanning cache and code storage, automotive electronics, IoT and edge devices, industrial automation and robotics, aerospace and defense, consumer electronics, and emerging AI/ML and enterprise-storage use cases.

Regional coverage includes North America, Europe, Asia Pacific, Latin America, and the Middle East & Africa. The competitive assessment covers Samsung Electronics, TSMC, SK Hynix, Micron Technology, Intel, GlobalFoundries, Everspin Technologies, Qualcomm, Western Digital, IBM, Avalanche Technology, Spin Memory, Renesas Electronics, NXP Semiconductors, and Infineon Technologies.

Key Drivers

Growing demand for faster and more energy-efficient memory. STT-MRAM is positioned between volatile SRAM and slower charge-based non-volatile memory because its magnetic state is retained without refresh power. IBM identifies STT-MRAM as a candidate technology for memory roles that require the persistence of Flash with substantially faster access behavior. In edge processors, this can simplify the storage of firmware, model parameters, and device state across intermittent power events. The resulting demand is not for a generic memory replacement; it is for an embedded memory block that can preserve state without imposing the standby-power burden or die-area trade-offs associated with alternative architectures.

Rising need for high-endurance memory for edge and AI devices. Repeated local logging, sensor fusion, and over-the-air updates expose the endurance limits of conventional embedded non-volatile memory. The demonstrated endurance and retention profile of automotive-grade STT-MRAM makes it relevant to devices that must retain frequently updated information across broad temperature ranges. GlobalFoundries specifically positioned its 22FDX eMRAM offering for IoT and automotive systems, linking the technology to controller applications where code storage and persistent data functions can coexist on the same platform. This integration can reduce board-level complexity, particularly when a design would otherwise require separate memory, backup circuitry, or endurance-management measures.

Increasing replacement of traditional NVM technologies. Embedded Flash becomes harder to scale as logic processes advance because its high-voltage programming requirements add process and design burdens that are not native to leading logic platforms. Manufacturing STT-MRAM is also complex, particularly because magnetic tunnel-junction deposition and patterning must be integrated into the back end of line, but the process is being developed as a scalable embedded-memory alternative rather than as a drop-in Flash overlay ^{[3]Semiconductor Engineering, Challenges In Making And Testing STT-MRAM, 2019, semiengineering.com}. The commercial catalyst is therefore node-specific: at nodes where embedded Flash no longer offers a practical path, eMRAM can move from a premium option to a required qualification route for persistent on-chip storage.

Expansion of automotive electronics and safety-critical systems. Automotive controllers must retain software and calibration information while operating through wide temperature ranges, high cycling, and long qualification periods. A 22nm, 40 Mb eMRAM macro demonstrated industrial-grade operation from -40°C to 125°C, including high-temperature and low-temperature operating-life tests, endurance cycling, and solder-reflow evaluation ^{[4]IEEE International Electron Devices Meeting, Manufacturable 22nm FD-SOI Embedded MRAM Technology for Industrial-grade MCU and IOT Applications, 2019, doi.org}. The value of such evidence is operational rather than merely technical. It gives MCU suppliers and Tier 1 integrators a documented basis for evaluating eMRAM in applications where a late reliability failure can delay a vehicle platform for years.

Growth in data-center and enterprise-storage applications. Discrete STT-MRAM can address persistent-memory roles that need fast recovery from power interruption, including storage-controller metadata and transaction-sensitive systems. JEDEC's JESD251 standard defines the xSPI interface used by serial peripheral devices, supporting interoperable high-speed connections for compatible MRAM products. Enterprise demand remains more selective than embedded MCU demand because density and cost remain decisive, but persistent memory can offer a tangible operational benefit where data protection currently relies on volatile DRAM plus backup-energy hardware.

Key Restraints

High manufacturing and integration cost of STT-MRAM technology. The magnetic tunnel junction requires tightly controlled deposition, annealing, etching, and integration steps that differ materially from conventional CMOS processing. Magnetic materials do not always behave like standard semiconductor layers during patterning, and process control is critical because small variations can affect switching current, tunnel magnetoresistance, and retention. These requirements increase the cost and qualification effort of an eMRAM process module. The cost barrier is most acute where a customer does not need the technology's endurance or power-loss resilience, because lower-cost conventional memory can then remain commercially adequate.

Limited large-scale production capacity across foundries. Production capability is concentrated among a limited group of foundries and integrated semiconductor manufacturers with established magnetic-process expertise. This concentration introduces capacity and sourcing risk for customers whose products require qualified eMRAM at a particular node. It also lengthens the path from design decision to volume shipment because process reliability, design kits, and application-specific qualification must mature together. Research on emerging non-volatile memories continues to identify manufacturing integration and scaling as central barriers to broader deployment, especially as dimensions shrink and thermal-stability requirements tighten.

GlobalFoundries' production-ready 22FDX eMRAM platform demonstrates how foundry availability converts a materials challenge into a customer-accessible design service. The principal near-term risk is concentrated supply and lengthy qualification, particularly for automotive programs. However, those same qualification requirements create barriers to entry after a process has been validated. Suppliers that combine a stable process module with reusable IP and reliability documentation should benefit as customers seek to avoid repeating costly memory requalification across successive SoC generations.

Spin-Transfer Torque MRAM (STT-MRAM) Market Segment Analysis

By Density/Capacity

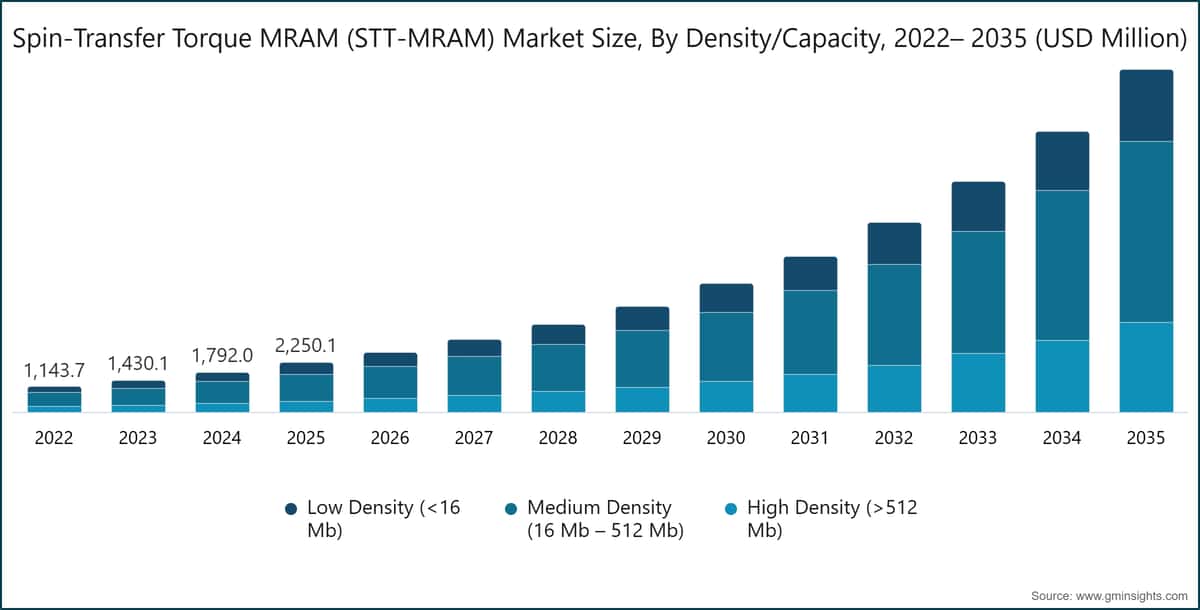

Medium density, spanning 16 Mb–512 Mb, was the largest category at USD 1.22 billion in 2025 and is projected to reach USD 8.22 billion by 2035, at approximately 21.1% CAGR. This range aligns with firmware and persistent-data requirements in many automotive and industrial MCUs. A 22nm 32 Mb embedded STT-MRAM macro demonstrated 5.9 ns random-read access and operation up to 150°C, providing evidence that medium-density eMRAM can meet demanding controller performance requirements ^{[5]IEEE Journal of Solid-State Circuits, A 22-nm 32-Mb Embedded STT-MRAM Macro Achieving 5.9-ns Random Read Access and 7.4-MB/s Write Throughput at up to 150°C, 2024, doi.org}.

High-density devices above 512 Mb generated USD 490.4 million in 2025 and are expected to expand at the fastest density-segment CAGR, approximately 23.5%, reaching USD 4.03 billion by 2035. Their growth depends on applications that can monetize persistent, faster-access memory in enterprise storage and compute infrastructure. Technical progress at these densities must be assessed carefully: research demonstrations and product roadmaps do not equate to qualified high-volume manufacturing, and density gains must preserve retention, yield, and cost discipline.

Low-density products below 16 Mb totaled USD 535.2 million in 2025 and are forecast to reach USD 3.25 billion by 2035, at approximately 19.9% CAGR. This segment remains relevant for calibration storage, configuration data, metering, industrial controls, and mission-critical non-volatile storage. Its lower growth rate reflects smaller memory-content requirements, although its installed-base opportunity remains broad because many such applications value endurance and instant recovery more than density.

By Product Type

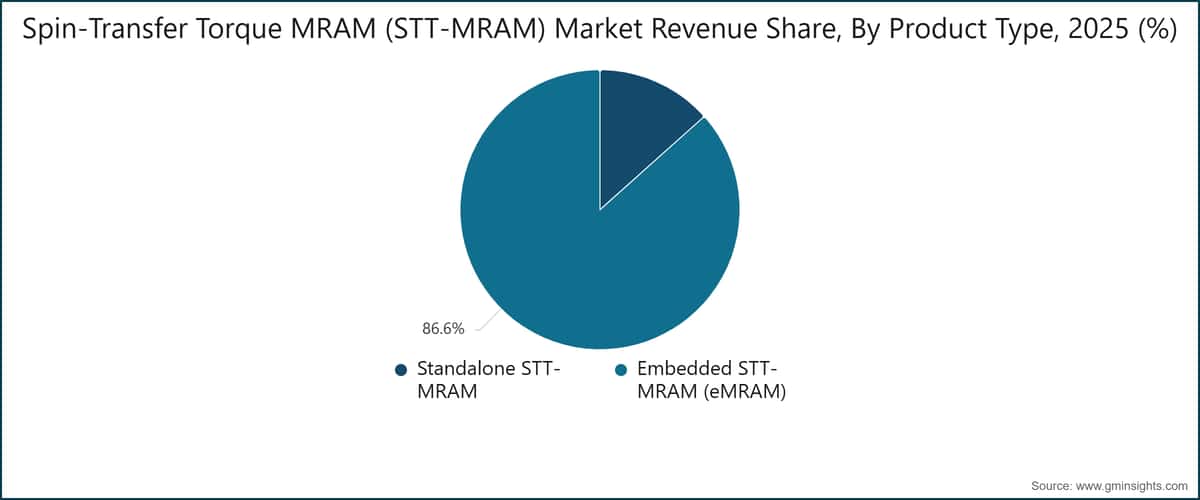

Embedded STT-MRAM is the core revenue segment, valued at USD 1.94 billion in 2025 and representing approximately 86.6% of market revenue. Its projected CAGR of approximately 21.8% exceeds that of standalone STT-MRAM because eMRAM is incorporated into the much larger volume of SoCs used in automotive controllers, industrial MCUs, and connected devices. The segment's commercial strength depends on foundry integration: eMRAM becomes accessible to a broad customer base when it is supplied through a qualified process design kit rather than developed independently for each chip program.

Standalone STT-MRAM generated USD 300.6 million in 2025 and is projected to reach USD 1.55 billion by 2035. Its approximately 17.9% CAGR reflects continued demand from aerospace, defense, industrial, and enterprise-storage applications, where discrete non-volatile devices can justify a premium through resilience and deterministic recovery behavior. Everspin reported USD 50.4 million in total revenue in 2024, compared with USD 63.8 million in 2023, as industrial demand normalized; it also reported licensing and royalty revenue, illustrating the importance of IP monetization alongside product shipments.

By Offering Type

Hardware products accounted for USD 1.52 billion in 2025 and are expected to reach USD 10.08 billion by 2035, growing at approximately 20.9%. Hardware demand captures both standalone devices and embedded memory silicon delivered through foundry processes. Its trajectory is tied to production ramps in end markets, particularly automotive and industrial electronics, where the memory function is incorporated into a larger semiconductor bill of materials.

IP & design services totaled USD 723.8 million in 2025 and are forecast to reach USD 5.43 billion by 2035, at approximately 22.4% CAGR. This faster growth reflects the leverage available when a qualified eMRAM macro, design flow, and process design kit can be reused across multiple customer SoCs. The offering remains technically demanding because the memory macro must be co-optimized with the process stack and validated for yield, retention, and switching behavior. As a result, IP revenue is closely linked to the depth of a supplier's process-integration capability rather than to software licensing alone.

By Technology Node

Mature nodes of 28nm and above account for the largest current production volume. These nodes align with broad MCU and industrial-controller demand and provide a more established environment for integrating and qualifying eMRAM. Mid-level nodes from 14nm to 22nm are the active development frontier because they combine more advanced logic with the need for an embedded non-volatile memory replacement. As devices scale further, maintaining the magnetic free layer's thermal stability while reducing switching current becomes increasingly difficult, making materials engineering and process control central to commercial viability.

Advanced nodes at 10nm and below remain developmental for STT-MRAM. At these dimensions, the market opportunity is significant, but the technical challenge is equally material: shrinking the memory cell can undermine the energy barrier required for reliable data retention. Advanced-node revenue should therefore be interpreted as contingent on successful process qualification rather than as an automatic extension of current 22nm and 28nm deployments.

By Application

Cache and code storage are foundational applications because they directly address the need to retain firmware and secure data at nodes where embedded Flash is becoming less practical. Automotive electronics are a major growth channel, supported by the need for durable memory in ADAS, powertrain, body-control, and software-defined vehicle architectures. The qualifying advantage is not simply endurance; it is the ability to demonstrate endurance and retention under automotive-relevant conditions.

IoT and edge devices benefit from low standby-power requirements and persistent configuration storage. Industrial automation and robotics require reliable preservation of registers, setpoints, and operating history, which favors memory that can be updated repeatedly without erase cycles. Aerospace and defense remain specialized but important applications because magnetic-state storage can offer resilience advantages in harsh environments. Consumer electronics and AI/ML accelerators represent longer-term opportunities, although their adoption remains sensitive to per-bit cost, density, and the availability of volume-qualified supply.

Density segmentation creates a different competitive test. Medium-density products lead current revenue because automotive and industrial controllers need practical amounts of firmware and persistent-data storage, while high-density products are projected to grow faster at approximately 23.5% CAGR as enterprise and compute applications seek a persistent-memory tier. The first opportunity rewards reliability, qualification, and cost control; the second rewards density scaling without sacrificing retention. Generalist standalone suppliers face pressure unless they can secure application niches or pair their devices with defensible interface, qualification, and system-level value.

Spin-Transfer Torque MRAM (STT-MRAM) Market Regional Analysis

Asia Pacific

Asia Pacific led the market with USD 908.5 million in 2025 and is forecast to reach USD 7.29 billion by 2035, at approximately 23.2% CAGR. The region combines major foundry capacity, memory manufacturing, automotive electronics production, and high-volume device assembly. China generated USD 363.5 million in 2025 and is projected to grow at approximately 24.4%, while Japan and South Korea accounted for USD 226.6 million and USD 125.9 million, respectively. The regional advantage is structural: eMRAM production, semiconductor design, and many downstream electronics customers are geographically connected, reducing the distance between process qualification and application deployment.

North America

North America totaled USD 706.8 million in 2025 and is projected to reach USD 4.65 billion by 2035, expanding at approximately 20.8%. The region's role is anchored in memory research, IP, fabless semiconductor design, and specialized standalone-MRAM demand. Everspin's commercial position in discrete MRAM and IBM's continued work on STT-MRAM architectures reinforce North America's importance in technology development and high-reliability applications,. The region's production footprint remains less concentrated than its design and IP base, making access to qualified foundry capacity a strategic consideration for locally designed eMRAM-enabled chips.

Europe

Europe generated USD 395.0 million in 2025 and is expected to reach USD 2.32 billion by 2035, at approximately 19.5% CAGR. Demand is closely associated with automotive and industrial electronics, where companies such as NXP Semiconductors and Infineon Technologies operate in markets that require long qualification cycles and robust embedded-memory reliability. GlobalFoundries' Dresden production operation provides Europe with an important eMRAM-related manufacturing presence, particularly for 22FDX-based automotive and IoT applications ^{[6]GlobalFoundries, GLOBALFOUNDRIES Delivers Industry's First Production-ready eMRAM on 22FDX Platform for IoT and Automotive Applications, February 2020, investors.gf.com}. Even so, regional growth depends on sustained access to advanced manufacturing and design ecosystems that remain globally interconnected.

Latin America

Latin America was valued at USD 116.7 million in 2025 and is forecast to reach USD 558.7 million by 2035, at approximately 17.0% CAGR. Demand is concentrated in downstream automotive manufacturing, industrial automation, and electronics consumption rather than indigenous eMRAM process development. Mexico's automotive supply-chain role supports the adoption of qualified semiconductor content, but the region's lower projected growth reflects limited local advanced-node manufacturing and a dependence on designs and supply chains established elsewhere.

Middle East & Africa

Middle East & Africa reached USD 122.9 million in 2025 and is projected to increase to USD 682.9 million by 2035, at approximately 18.5% CAGR. Demand arises from industrial infrastructure, defense electronics, smart-city deployments, and data-center investment. The region is largely supplied through imports, so its market development is tied to the availability, cost, and qualification status of devices produced in Asia, North America, and Europe.

North America and Europe retain strategically important roles in IP, high-reliability applications, automotive design, and specialized memory supply. However, the separation between design leadership and manufacturing concentration creates a supply-chain dependency for customers requiring qualified eMRAM at a specific node. Regional policy initiatives may improve local semiconductor capacity over time, but the near- to medium-term commercial advantage remains with regions that can align process integration, customer qualification, and high-volume electronics production in the same supply network.

Spin-Transfer Torque MRAM (STT-MRAM) Market Share & Competitive Landscape

Samsung Electronics held an estimated 38% global share in 2025, supported by its vertically integrated position across memory technology development and foundry services. Its scale gives it a material advantage in moving eMRAM from process development into customer-facing manufacturing platforms. TSMC, SK Hynix, Micron Technology, and Intel remain relevant through foundry access, memory-process expertise, and research into persistent-memory architectures, although their commercial roles differ significantly by product category and node.

GlobalFoundries is a key supplier because its 22FDX eMRAM platform provides a production path for IoT and automotive customers and is manufactured in Dresden. Its competitive importance lies in process availability and customer enablement rather than in discrete-memory volume alone. Everspin Technologies occupies the complementary standalone-memory position, with products and licensing activity spanning industrial, aerospace, defense, automotive, and enterprise use cases ^{[7]U.S. Securities and Exchange Commission, Everspin Technologies, Inc. Annual Report on Form 10-K for Year Ended December 31, 2024, February 2025, sec.gov}. Its performance is therefore more exposed to discrete-device demand cycles than that of embedded-memory providers whose revenue is connected to broader SoC production.

Qualcomm, Western Digital, IBM, Avalanche Technology, and Spin Memory participate through processor design, storage architectures, research, materials innovation, or specialized MRAM development. Renesas Electronics, NXP Semiconductors, and Infineon Technologies are important demand-side and integration-oriented participants because their automotive and industrial MCU portfolios create a direct application base for qualified embedded non-volatile memory. Competitive advantage is increasingly determined by whether a company controls an enabling link in the eMRAM value chain: MTJ process integration, foundry capacity, reusable IP, system-level design insertion, or safety-critical application qualification.

Recent Industry Developments

• March 2026: Everspin Technologies announced additions to its high-reliability xSPI MRAM portfolio, including a 256 Mb device and production-qualification milestones for 64 Mb and 128 Mb variants. The developments targeted aerospace, defense, automotive, industrial, and space applications.
• 2022: Samsung reported a 14nm FinFET eMRAM technology demonstration at the IEEE International Electron Devices Meeting, extending eMRAM development beyond mature-node platforms.
• 2022: Everspin introduced its PERSYST xSPI MRAM family using the JESD251 xSPI interface, supporting the use of serial MRAM in industrial and embedded-system designs.
• 2020: GlobalFoundries announced production-ready eMRAM on its 22FDX platform for IoT and automotive applications, with customer tape-outs and volume-production plans at its Dresden facility.
• 2019: An IEEE IEDM publication reported a manufacturable 22nm FD-SOI eMRAM technology for industrial-grade MCU and IoT applications, documenting reliability testing across operating-life, endurance, and solder-reflow conditions.
